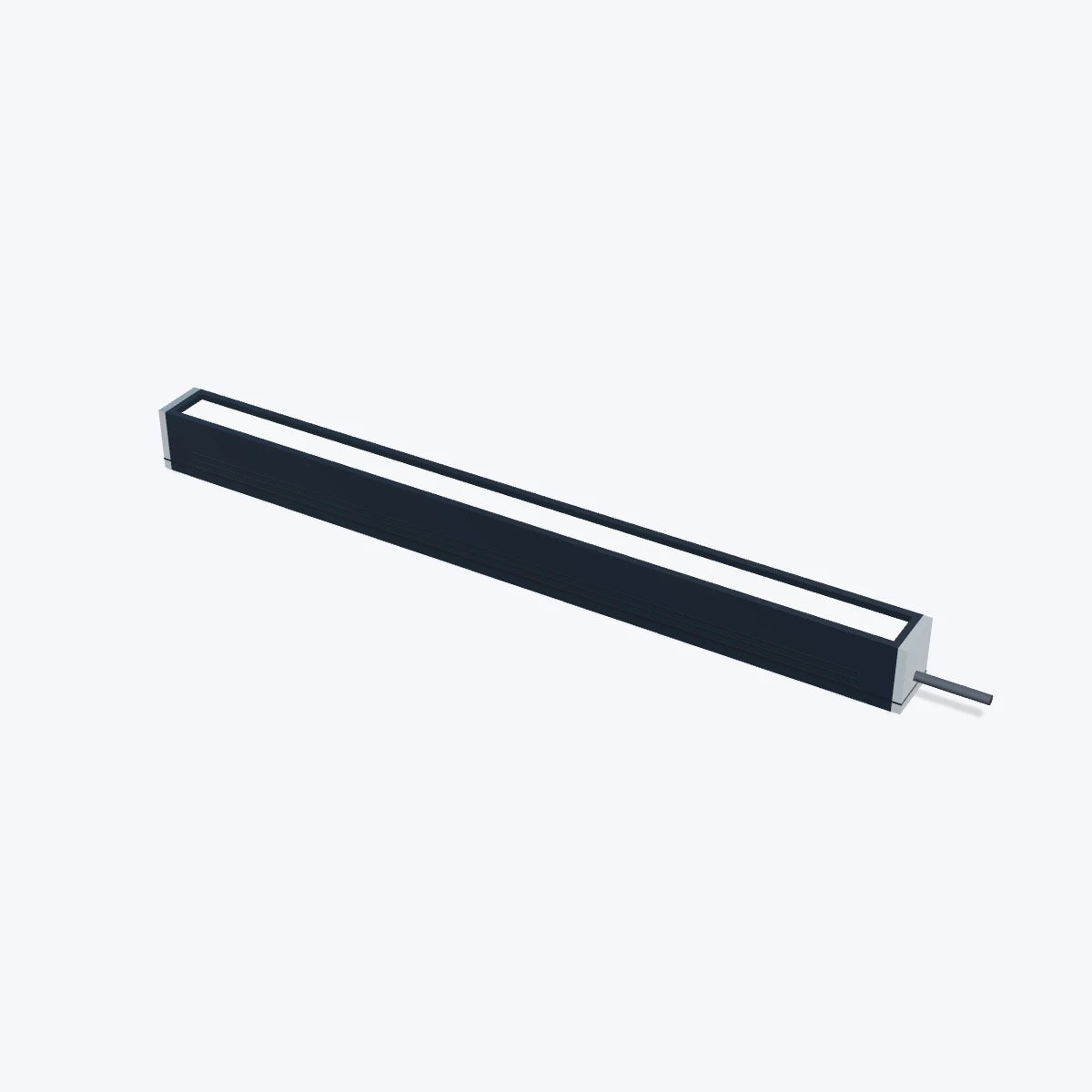

Representative photo of this series
Bar lights
High uniformity bar light, 312 x 22 x 26 mm (LS-BAR-0733)
Model LS-BAR-0733
- ColourRed, Blue, Green, White
- Emitting area300 x 16 mm
- SizeL312xW22xH26(mm)
- Voltage24V
- Power7.2W/10.8W
$339.00
Ships in 2-3 weeks
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-density chip LEDs mounted on a PCB; can be combined freely and widely applied; can be used as the back light in some cases; Special heat transferring design to keep long working life.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0733 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

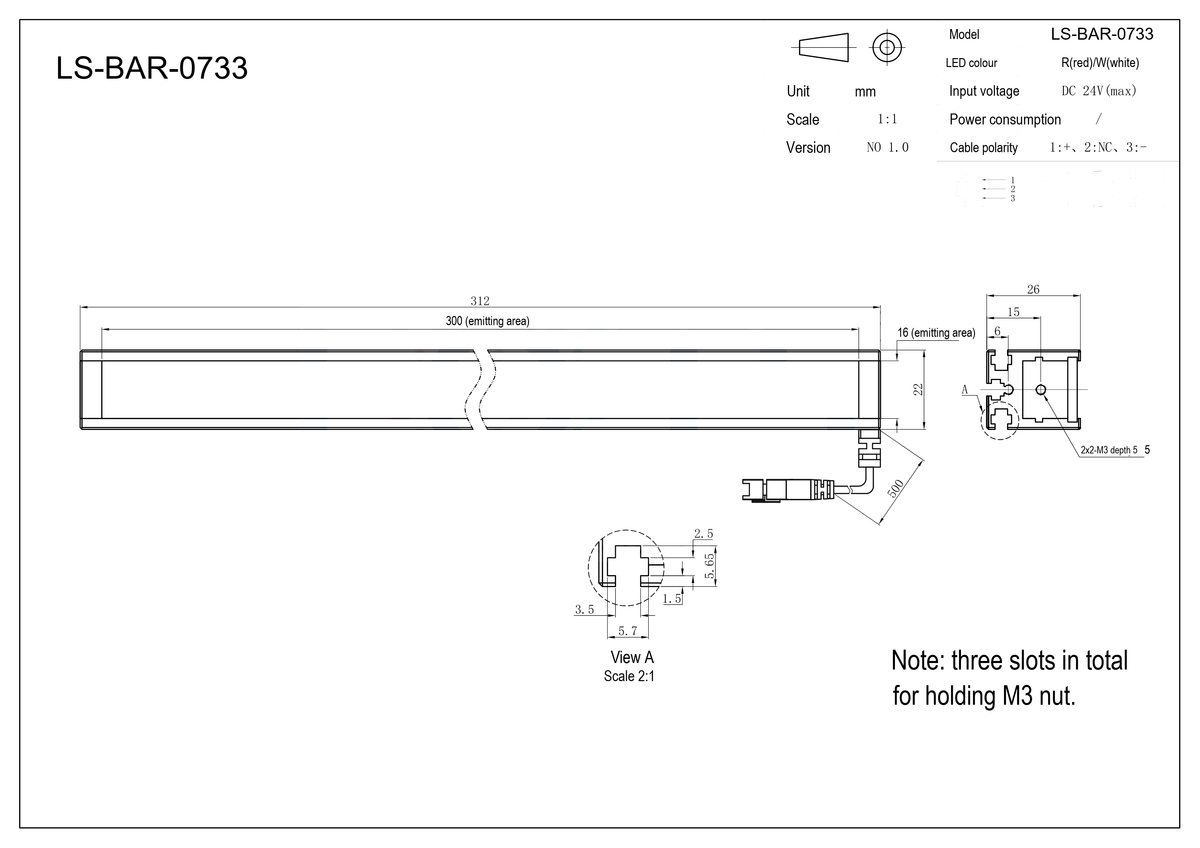

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 300 x 16 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 7.2W/10.8W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L312xW22xH26(mm) |
|---|---|
| Mounting holes | 2×2-M3 depth 5 |
| Shipping weight | 0.40 kg |
