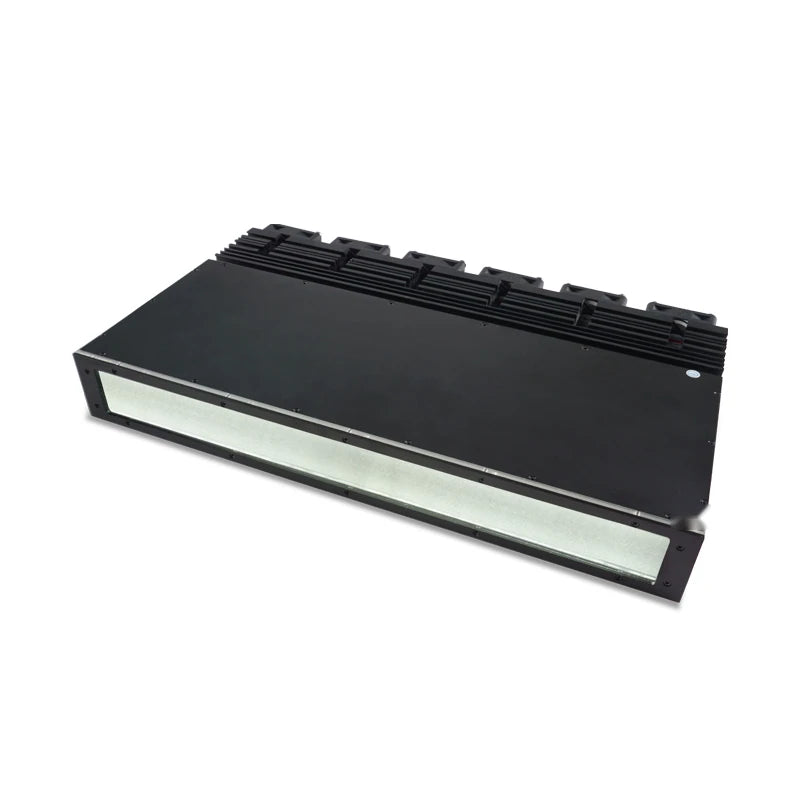

Representative photo of this series
Bar lights
Long distance linear light, 385 x 231.92 x 50 mm (LS-BAR-0635)
Model LS-BAR-0635
- ColourWhite
- Emitting area355 x 36 mm
- SizeL385xW231.92xH50(mm)
- Voltage24V
- Power350W
Ships in 2-3 weeks
2.6 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Crack detection in highway and railway tunnel structures is a crucial step to ensure tunnel safety and stability. By monitoring the stress characteristics and deformation of tunnel surrounding rock and supporting lining structures, early signs of hazards such as collapses and large deformations can be identified, allowing timely maintenance measures to be taken to safeguard construction safety. In modern automated scanning and monitoring systems, our 2nd-generation long-distance linear light source, used in conjunction with line-scan cameras, enhances the visibility of defects like cracks and deformations in color images, with high color reproduction accuracy. Crack detection data from these
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0635 |
|---|---|
| Note | UV & IR light can be customized as required. |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 355 x 36 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 350W |
| Input voltage | DC 24V (max) |

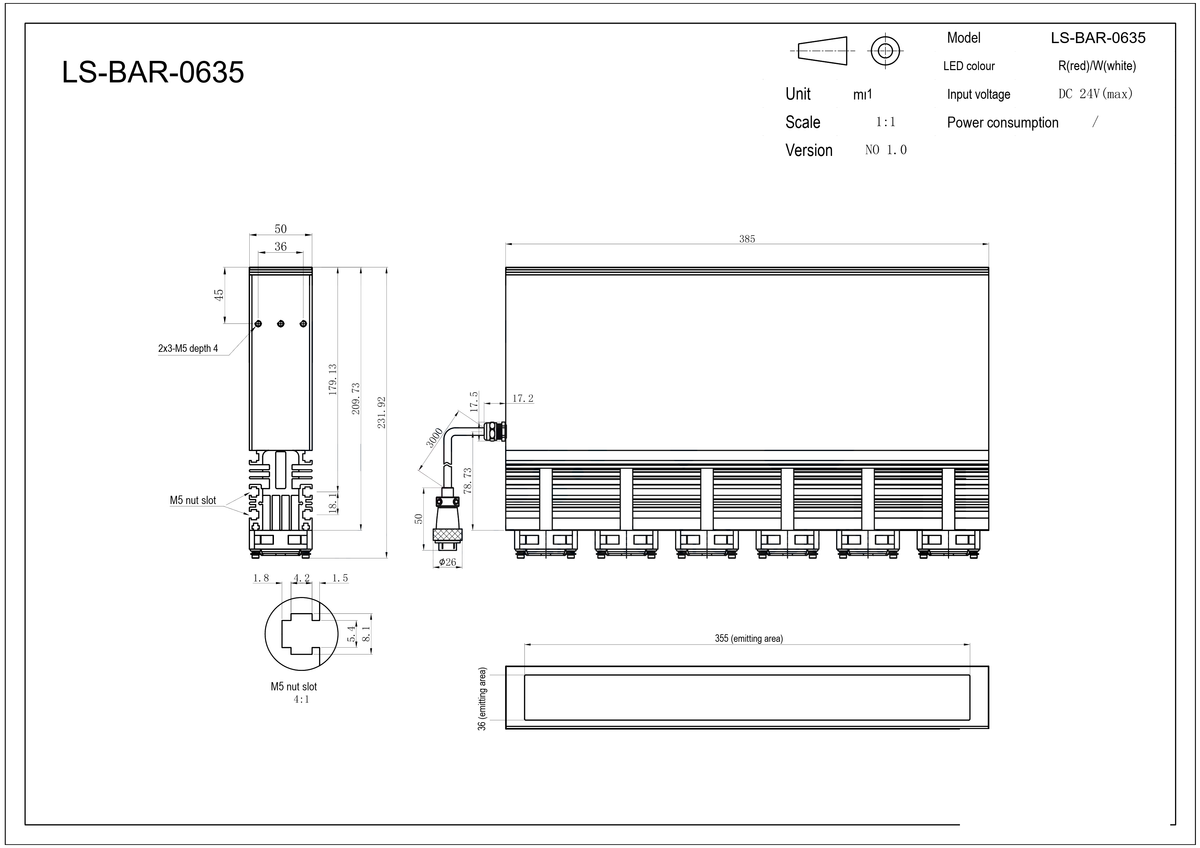

Mechanical
| Dimension | L385xW231.92xH50(mm) |
|---|---|
| Mounting holes | 2×3-M5 depth 4 |
| Shipping weight | 2.60 kg |
Other models in the Long distance linear light (LS-BAR-S72) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0636 | 355 mm · L385xW253.1xH50(mm) | $439.00 | Ships in 2-3 weeks | View |
