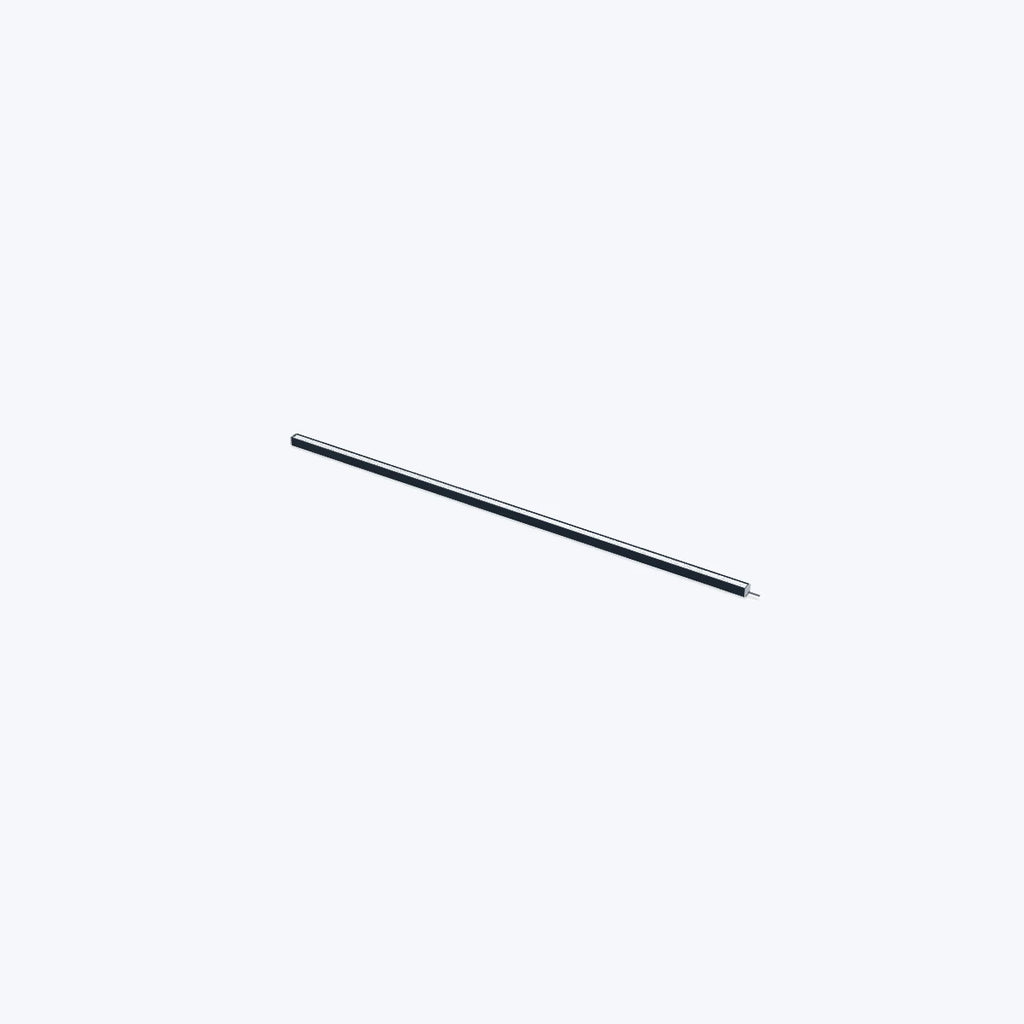

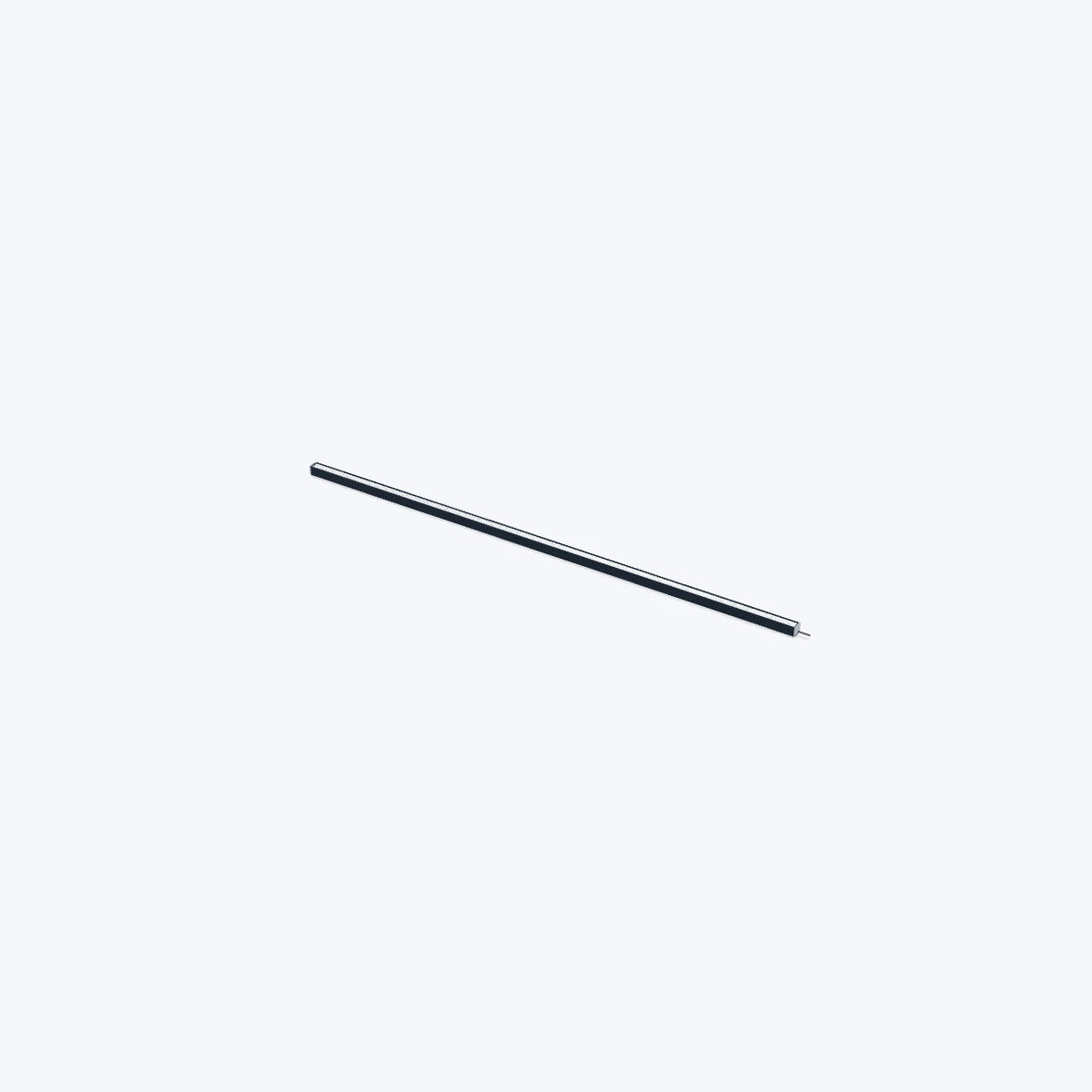

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.

Bar lights

1497 x 22 mm Bar light (LS-BAR-0601)

Model LS-BAR-0601

ColourRed, Green, Blue, White
TypeStandard
Voltage24 V
Wavelength red620-630 nm

$1,629.00

Ships in 2-3 weeks

1.6 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Bar light with a flexible size design; the irradiation angle can be adjusted to the inspection, colours can be chosen and combined, and an optional diffuse plate makes the light uniform.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-0601
Optional accessories	Extension cable, diffuse plate
Service life	Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions
Lamp bead rows	4
L (mm)	1497
W (mm)	28
H (mm)	27

Interfaces and I/O

Cable length	500 mm (drawings)
Light cable	2

Light

Wavelength red	620-630 nm
Wavelength green	520-530 nm
Wavelength blue	465-475 nm
Colour temperature white	6000-6500 K
Wavelength IR	850-940 nm
Wavelength UV	365-405 nm
Emitting width (mm)	22

Environment and compliance

Storage temperature	-20 to 60 °C
Operating temperature	0 to 40 °C
Humidity	20-85 %RH (non-condensing)

Electrical

Controller	LS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)	52.8
Power G/B/W (W)	79.2
Recommended controller	LS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)	24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Length rule	L = 12 (end plate thickness) + X (emitting length, increases in multiples of 45 mm)
Mounting	2 x 2-M3, depth 5 (drawings)
Shipping weight	1.60 kg

Downloads

Datasheet (PDF)LS-BAR-0601 · 1010 KB

Features

Flexible size design
Irradiation angle can be adjusted according to testing requirements
Custom color selection and combination
Optional diffuse plate to make light diffusion uniform

Applications

Wide field lighting
Various character recognition
Various appearance inspection
Various damage and defect inspection
QR codes, one-dimension barcode reading
Inspection of components on substrates
Mint-mark on the metal surface
Uniform irradiation at high angles
Feature extraction at low angle
