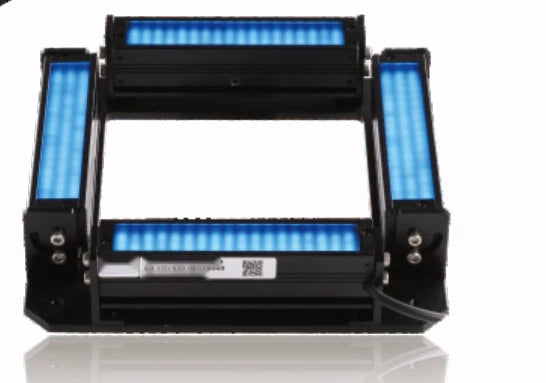

Representative photo of this series. Colour shown for illustration; the actual product may differ
Bar lights
150 mm Combined bar light (LS-BAR-0459)
Model LS-BAR-0459
- ColourRed, Green, Blue, White
- Emitting area16 mm
- Voltage24 V
- TypeStrip / combination
$259.00
Ships in 2-3 weeks
1.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Four-side combined bar light; each side can illuminate independently with independent control, and the light angle can be adjusted to suit the workpiece, for various applications.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0459 |
|---|---|
| Light array quantities | 3 |
| Construction | Four bar lights combined on four sides |
Optics
| Recommended working distance | 20mm~250mm |
|---|
Interfaces and I/O
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
|---|
Light
| Luminous surface dimension | Each 30mm |
|---|---|
| Colour temperature of white | 6600 K |
| Emitting length per side (mm) | 150 |
| Emitting surface width (mm) | 16 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controllers | Analog controller, digital controller, high power controller |
| Power (R) | 9.6W |
| Power (G/B/W) | 14.4W |

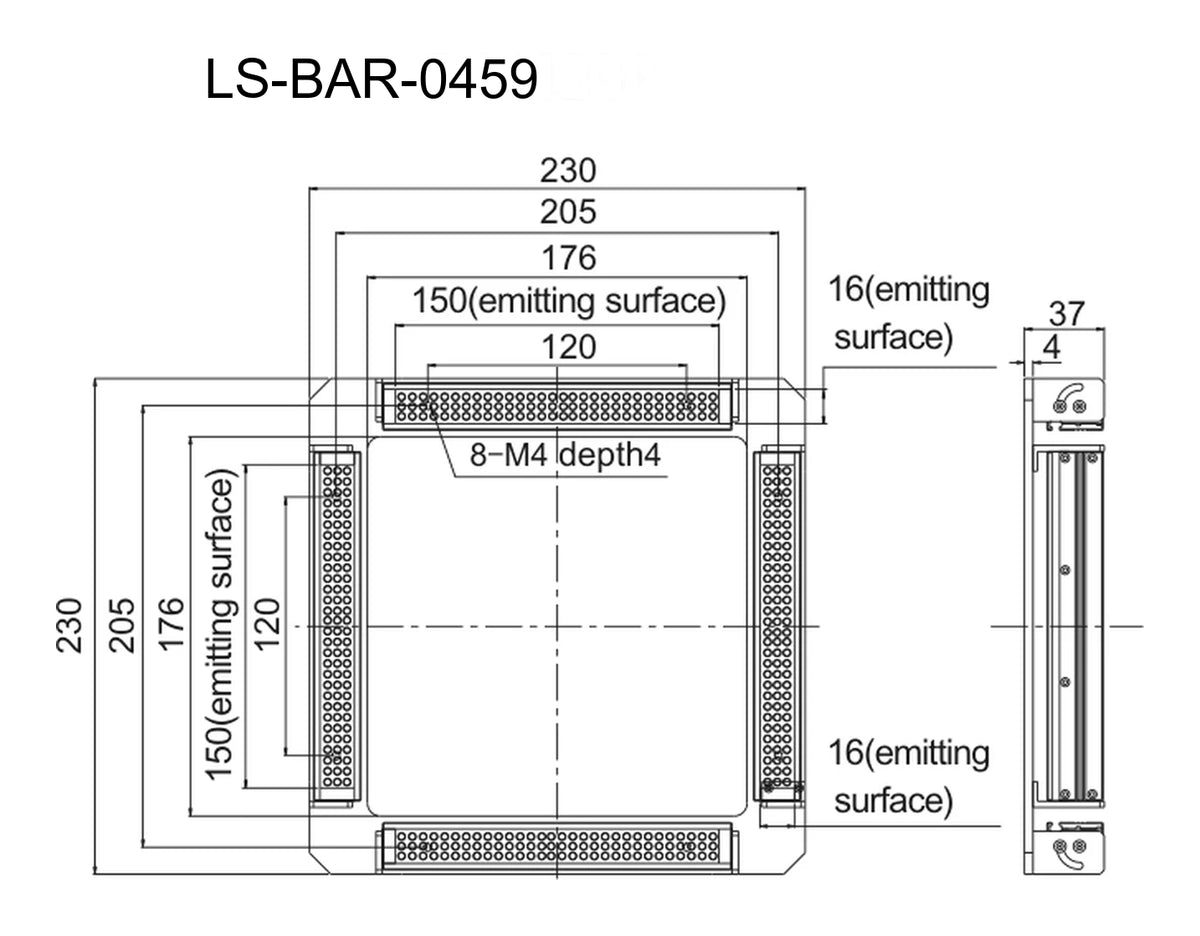

Mechanical
| Min. overall size | 96 mm x 96 mm |
|---|---|
| Max. overall size | 230 mm x 230 mm |
| Weight | 894 g |
Other models in the Combined bar light (LS-BAR-S68) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0455 | 96 x 30 mm | $209.00 | Ships in 2-3 weeks | View |
| LS-BAR-0457 | 90 mm | $209.00 | Ships in 2-3 weeks | View |
| LS-BAR-0458 | 120 mm | $229.00 | Ships in 2-3 weeks | View |
| LS-BAR-0456 | 130 x 60 mm | $259.00 | Ships in 2-3 weeks | View |
| LS-BAR-0461 | 175 x 125 mm | $279.00 | Ships in 2-3 weeks | View |
| LS-BAR-0462 | 270 x 240 mm | $319.00 | Ships in 2-3 weeks | View |
| LS-BAR-0460 | 210 mm | $329.00 | Ships in 2-3 weeks | View |
| LS-BAR-0463 | 400 x 255 mm | $469.00 | Ships in 2-3 weeks | View |
