Bar light
  • Bar light

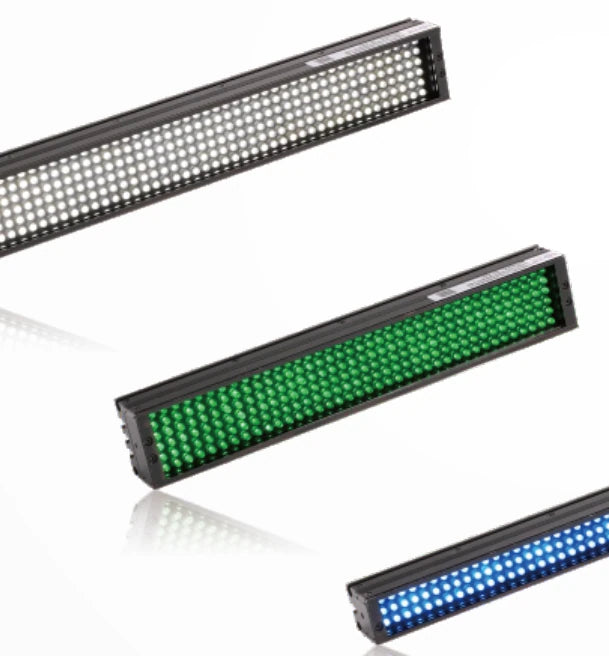

Representative photo of this series

Bar lights

970 x 30 mm High luminance bar light (LS-BAR-0419)

Model LS-BAR-0419

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • TypeStandard
  • Cable length500 mm
$1,219.00

In stock - ships the same business day (3 available, order by 2 PM ET)

1.8 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

970 x 30 mm High luminance bar light (LS-BAR-0419)LS-BAR-0419

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High luminance bar light with a small-angle LED array; parts made with high-precision moulds reduce batch-to-batch differences, with high heat-dissipation performance, multiple installation methods and optional diffuser plates of different transmittance.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0419
OptionDiffuser plate; polarizing plate
Light array quantities6
Remark30mm

Interfaces and I/O

Cable length500 mm
Extension cable optionsPVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)

Light

Colour temperature of white6600 K
Emitting lengthB = A - 12
Luminous surface width (mm)30

Environment and compliance

Operating temperature0-50 °C
Operating humidity20-85% (non-condensing)
Lifespan50000 h (to 50% of factory default luminance)

Electrical

Voltage24 V
Adapted controllersAnalog controller, digital controller, high power controller
Power (R)31.2W
Power (G/B/W)46.8W

Mechanical

Weight1407 g

Other models in the High luminance bar light (LS-BAR-S66) series

See all 45 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-0399 312 x 16 mm $339.00 13 in stock View
LS-BAR-0400 312 x 30 mm $339.00 14 in stock View
LS-BAR-0393 222 x 16 mm $359.00 16 in stock View
LS-BAR-0402 342 x 16 mm $359.00 12 in stock View
LS-BAR-0401 337 x 30 mm $359.00 14 in stock View
LS-BAR-0403 362 x 30 mm $379.00 12 in stock View
LS-BAR-0404 372 x 16 mm $389.00 11 in stock View
LS-BAR-0405 387 x 30 mm $449.00 15 in stock View
LS-BAR-0406 402 x 16 mm $519.00 14 in stock View
LS-BAR-0407 412 x 30 mm $539.00 16 in stock View
LS-BAR-0412 487 x 30 mm $539.00 13 in stock View
LS-BAR-0408 432 x 16 mm $569.00 15 in stock View
LS-BAR-0413 492 x 16 mm $569.00 10 in stock View
LS-BAR-0409 437 x 30 mm $569.00 13 in stock View
LS-BAR-0410 462 x 16 mm $579.00 15 in stock View
LS-BAR-0415 522 x 16 mm $579.00 16 in stock View
LS-BAR-0411 462 x 30 mm $579.00 16 in stock View
LS-BAR-0414 512 x 30 mm $579.00 15 in stock View
LS-BAR-0416 612 x 30 mm $629.00 14 in stock View
LS-BAR-0417 800 x 30 mm $979.00 3 in stock View
LS-BAR-0418 912 x 30 mm $1,159.00 13 in stock View
LS-BAR-0420 1012 x 30 mm $1,249.00 11 in stock View
LS-BAR-0421 1212 x 30 mm $1,449.00 15 in stock View
LS-BAR-0422 1812 x 30 mm $1,949.00 13 in stock View
