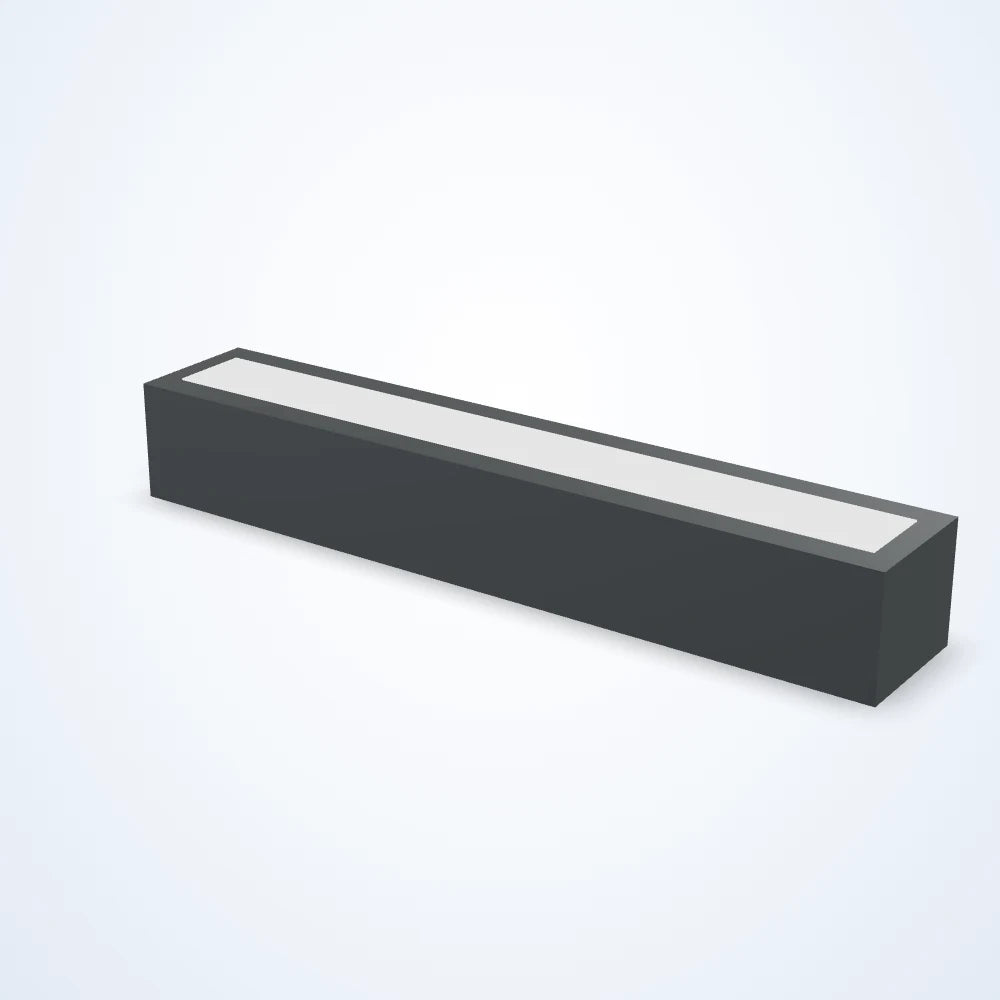

  • Bar light, 300 mm lit length (LS-BAR-0174) - view 2
  • Bar light, 300 mm lit length (LS-BAR-0174) - view 3
  • Bar light, 300 mm lit length (LS-BAR-0174) - view 4

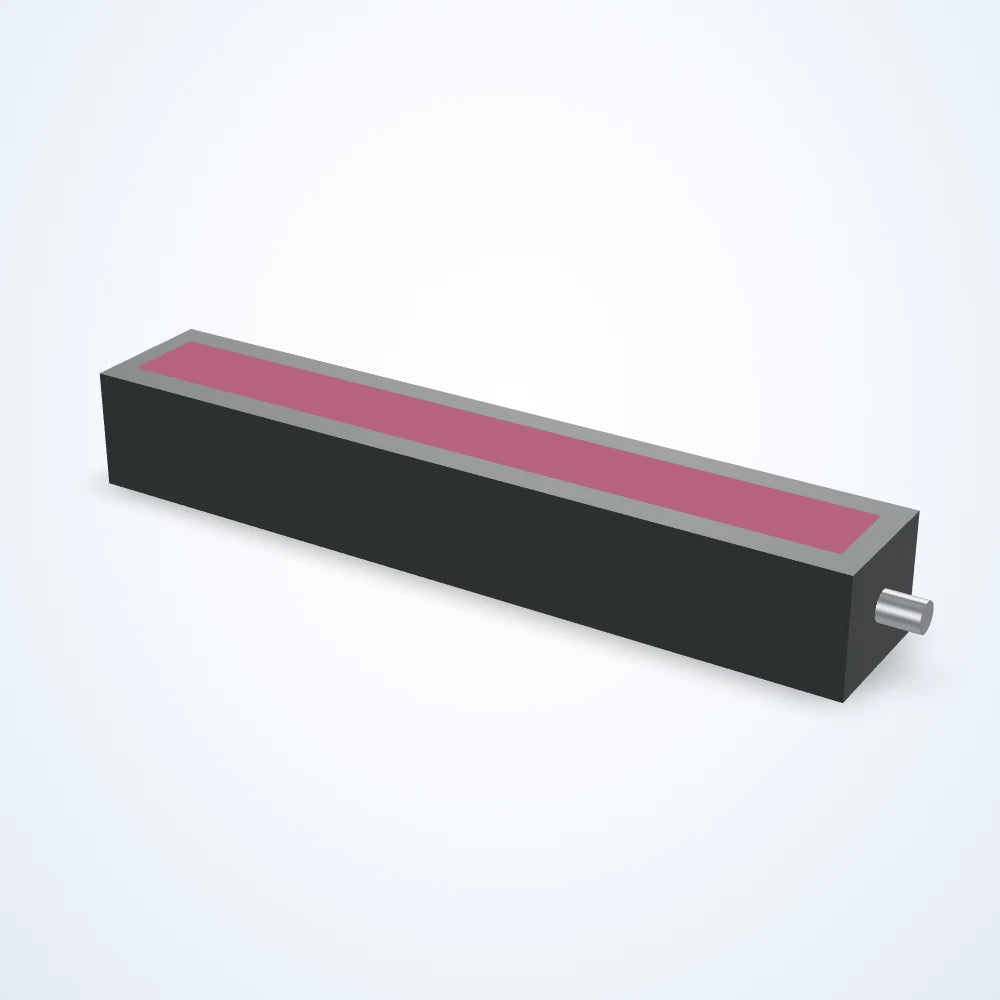

  • Bar light, 300 mm lit length (LS-BAR-0174) - view 5
  • Bar light, 300 mm lit length (LS-BAR-0174) - view 6

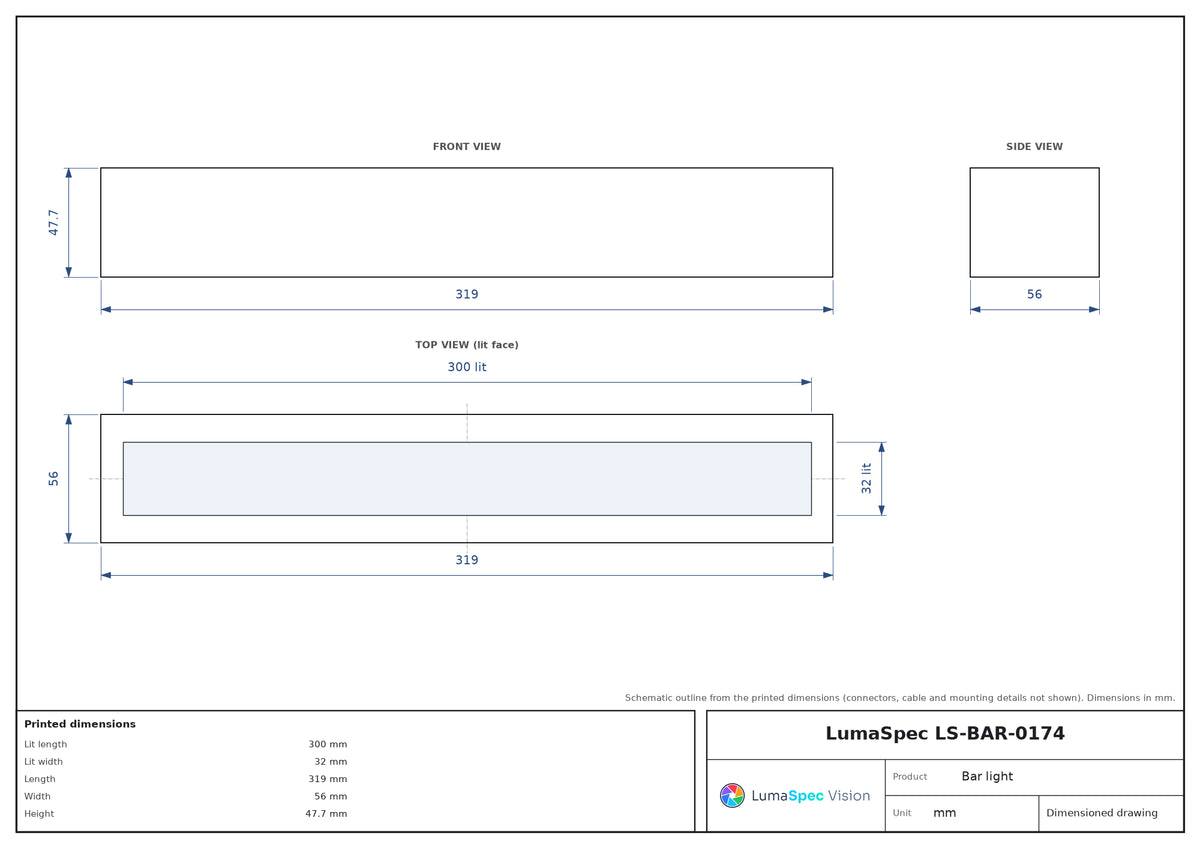

  • LS-BAR-0174 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Bar lights

Bar light, 300 mm lit length (LS-BAR-0174)

Model LS-BAR-0174

  • ColourWhite, Red, Green, Infrared, Blue
  • Voltage24 VDC
  • TypeStandard
  • Wavelength850 nm
from $1,079.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 1-2 weeks

Choose a configuration 108 available

Colour
Lens / beam angle
Polarized
Housing
Mounting
IP rating

Configuration LS-BAR-0174-001 $1,079.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Bar light, 300 mm lit length (LS-BAR-0174)LS-BAR-0174

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 300 x 32 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle, polarized, housing, mounting below (108 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0174
Connection at lightConnectorized
Driver includedIncluded
Driver locationInternal
Intensity controlAnalog Voltage
Operating modesConstant On, Constant On – Dimmable, Overcurrent Strobe, Strobe, Strobe – Dimmable
CollimatedNot Collimated
Daisy chainNo / Yes (by configuration)
Direct connectNo
Maximum duty cycle (%)100

Interfaces and I/O

Connector5 Pin M12 Male A-Coded

Light

DiffusedNot Diffused

Environment and compliance

Operating temperature-10 to 40 °C
Storage temperature-20 to 70 °C
ComplianceCE, IEC 62471, RoHS

Electrical

Voltage24 VDC
Strobe trigger inputNPN Trigger, PNP Trigger
Max overcurrent strobe current6000 mA
Max overcurrent strobe input power144 W
Maximum constant on current (mA)850
Maximum current (overcurrent strobe) (mA)6000
Maximum input power constant on (W)20
Maximum input power overcurrent strobe (W)144
Maximum overcurrent strobe duration (ms)50
Maximum overcurrent strobe duty cycle (%)10
Maximum overcurrent strobe frequency (Hz)4000
Maximum overcurrent strobe latency (µs)6
Maximum strobe current (mA)850
Maximum strobe duration (ms)No Limit
Maximum strobe duty cycle (%)100
Maximum strobe frequency (Hz)4000
Maximum strobe input power (W)20
Maximum strobe latency (µs)10
Minimum overcurrent strobe duration (µs)10
Minimum strobe duration (µs)30
NPN trigger current (mA)12
NPN trigger voltage (V)< 1 VDC
PNP trigger current (mA)13.4
PNP trigger voltage (V)4-24 VDC

Mechanical

Lit length (mm)300
Lit width (mm)32
Length (mm)319
Width (mm)56
Height (mm)47.7
