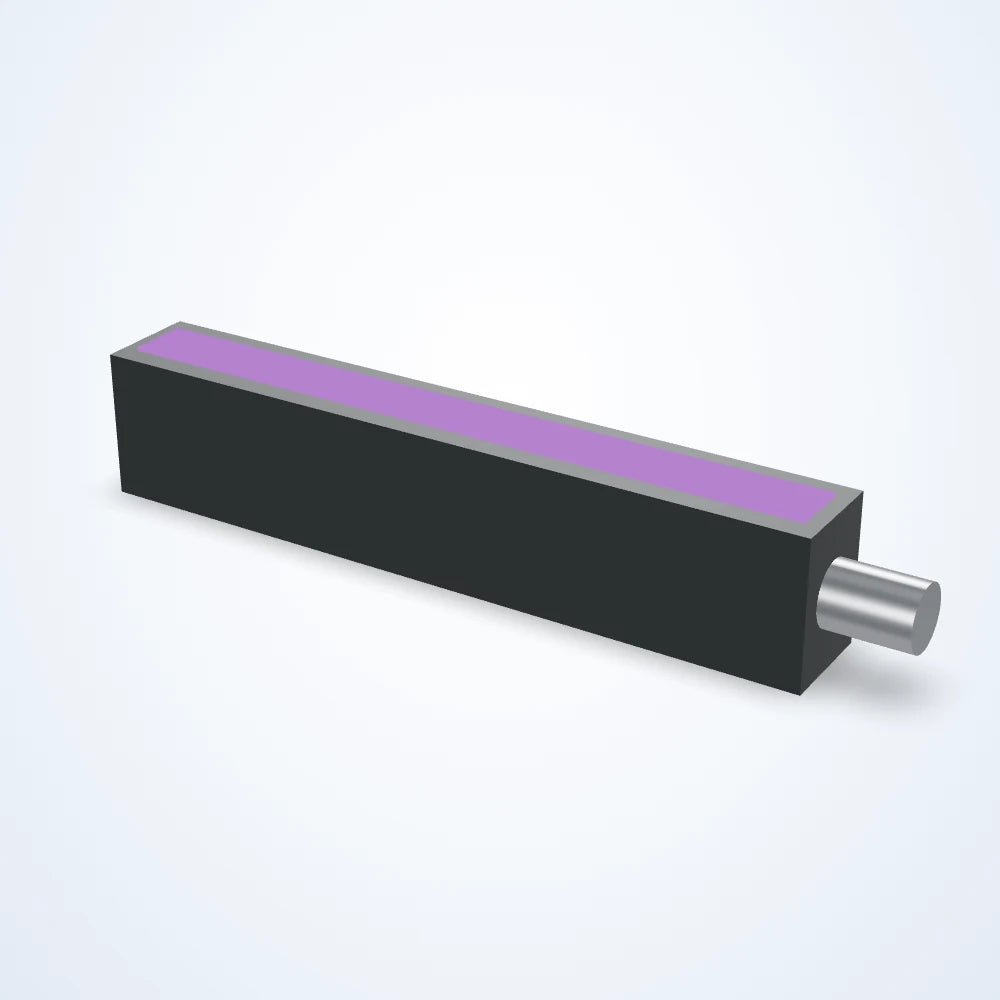

Bar light, 135 mm lit length (LS-BAR-0153)
Model LS-BAR-0153
- ColourWhite, Red, Green, Infrared, Blue, UV
- Voltage24 VDC
- TypeStandard
- Wavelength365 nm, 850 nm
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 27 available
Configuration LS-BAR-0153-01 $849.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 135 x 11.5 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle below (27 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0153 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe, Strobe, Strobe – Dimmable |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|---|
| Cable length (mm) | 254 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | -10 to 40 °C |
|---|---|
| IP rating | IP65 |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, IEC 62471, RoHS |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Max overcurrent strobe current | 4180 mA |
| Max overcurrent strobe input power | 100 W |
| Maximum constant on current (mA) | 317 |
| Maximum current (overcurrent strobe) (mA) | 4180 |
| Maximum input power constant on (W) | 7.6 |
| Maximum input power overcurrent strobe (W) | 100 |
| Maximum overcurrent strobe duration (ms) | 50 |
| Maximum overcurrent strobe duty cycle (%) | 10 |
| Maximum overcurrent strobe frequency (Hz) | 4000 |
| Maximum overcurrent strobe latency (µs) | 6 |
| Maximum strobe current (mA) | 317 |
| Maximum strobe duration (ms) | No Limit |
| Maximum strobe duty cycle (%) | 100 |
| Maximum strobe frequency (Hz) | 4000 |
| Maximum strobe input power (W) | 8 |
| Maximum strobe latency (µs) | 10 |
| Minimum overcurrent strobe duration (µs) | 30 |
| Minimum strobe duration (µs) | 30 |
| NPN trigger current (mA) | 14 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 17.6 |
| PNP trigger voltage (V) | 4-24 VDC |
Mechanical
| Lit length (mm) | 135 |
|---|---|
| Lit width (mm) | 11.5 |
| Length (mm) | 141 |
| Width (mm) | 20 |
| Height (mm) | 28 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
LS-BAR-0153
See this component from every angle.

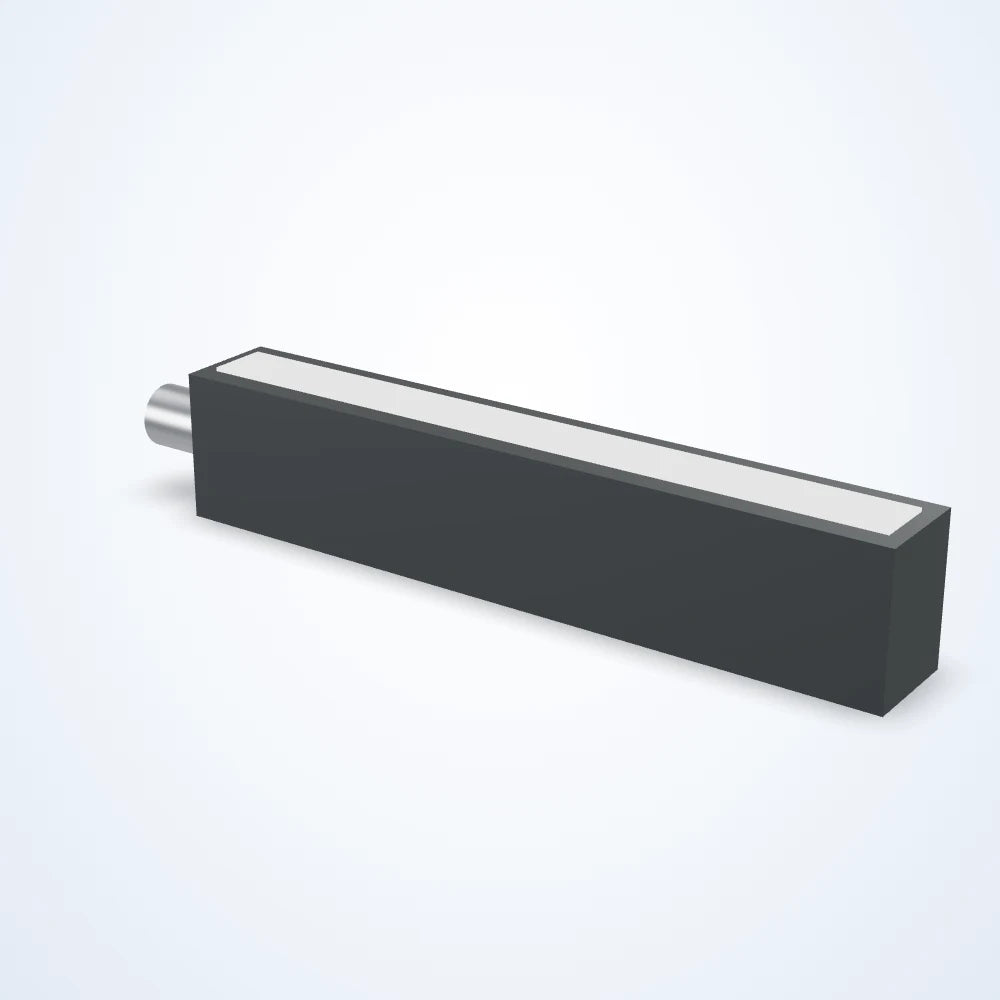

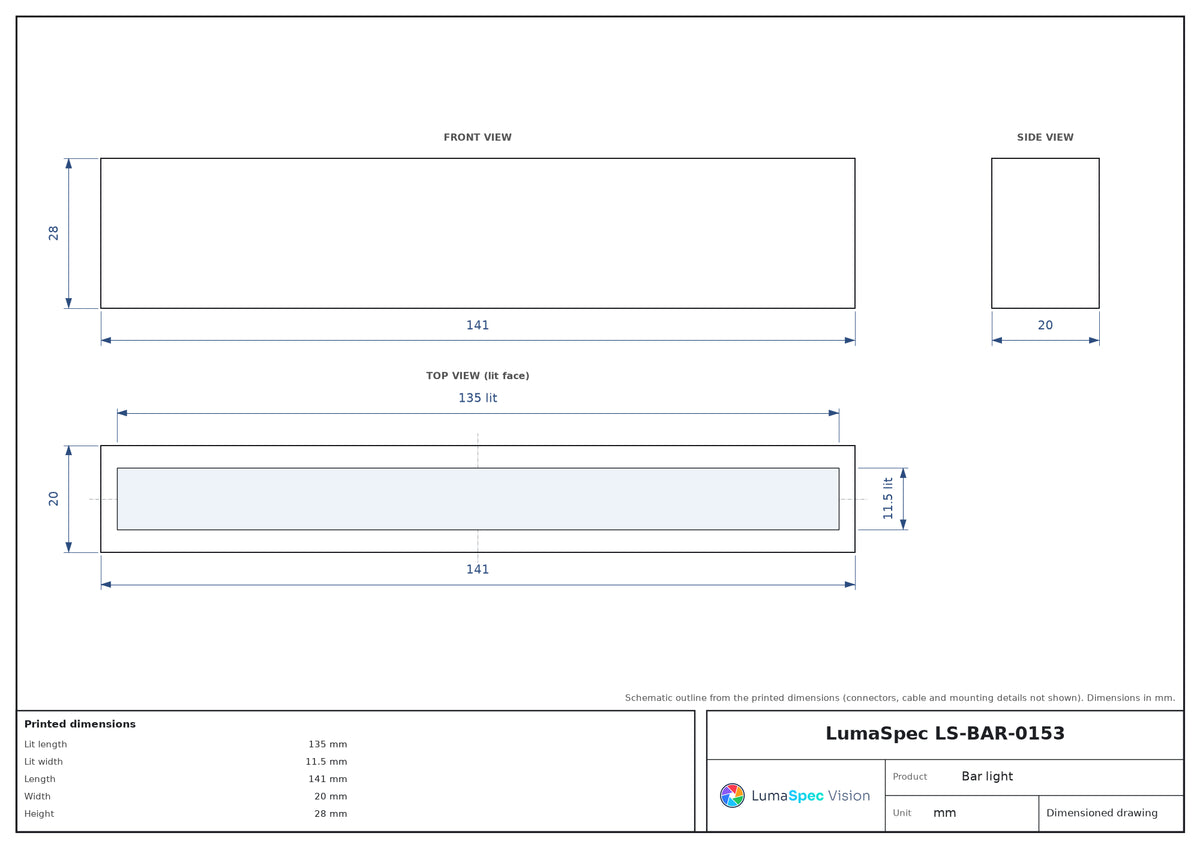

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Lit length (mm)
- 135
- Lit width (mm)
- 11.5
- Length (mm)
- 141
- Width (mm)
- 20
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
