LS-BAR-0518 — Bar lights. Dimension-based illustration; details and finish are representative.
  • LS-BAR-0518 — Bar lights. Dimension-based illustration; details and finish are representative.
  • LS-BAR-0518 dimensions (mm)

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.

Bar lights

237 x 32 mm Bar light (LS-BAR-0518)

Model LS-BAR-0518-R

  • ColourRed, Green, Blue, White
  • TypeStandard
  • Wavelength red620-630 nm
  • Wavelength green520-530 nm
$269.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

237 x 32 mm Bar light (LS-BAR-0518)LS-BAR-0518-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-BAR-0518: length 237 mm, width 38 mm, emitting width 32 mm, LED rows 6.

Bar light with a flexible size design; the irradiation angle can be adjusted to the inspection, colours can be chosen and combined, and an optional diffuse plate makes the light uniform.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0518
Optional accessoriesExtension cable, diffuse plate
Service lifeRed: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions
Lamp bead rows6
L (mm)237
W (mm)38
H (mm)27

Interfaces and I/O

Cable length500 mm (drawings)
Light cable1

Light

Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm
Colour temperature white6000-6500 K
Wavelength IR850-940 nm
Wavelength UV365-405 nm
Emitting width (mm)32

Environment and compliance

Storage temperature-20 to 60 °C
Operating temperature0 to 40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)12
Power G/B/W (W)18
Recommended controllerLS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Length ruleL = 12 (end plate thickness) + X (emitting length, increases in multiples of 45 mm)
Mounting2 x 2-M3, depth 5 (drawings)
Shipping weight0.50 kg

Engineering data

Drive and fit the LS-BAR-0518

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 VRed: 500 mAGreen / Blue / White: 750 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 18 W
Emitting length237 mm
Operating temperature0 to 40 °C
Cable length500 mmdrawings

Mounting and installation

Mounting holes 2 × 2 × M3 (4 holes)5 mm deep
Cable0.5 m

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

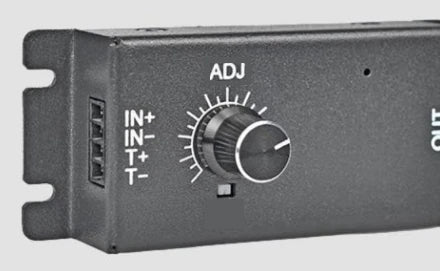

Controllers for this light

20 W per channel at 24 V for this 18 W light

24 W per channel at 24 V for this 18 W light

30 W per channel at 24 V for this 18 W light

24 W per channel at 24 V for this 18 W light

24 W per channel at 24 V for this 18 W light

21.9 W per channel at 24 V for this 18 W light
