Lights

Infrared bar lights

Bar lights are the flexible building block of a vision station: aim one at an angle for dark-field effects, pair two for even side lighting, or use a four-bar square for a large-area ring. Infrared light is invisible to operators, passes through many dyes and thin plastics and is less affected by ambient light: for print, packaging and fill-level checks.

All bar lights · Red bar lights · Blue bar lights · Green bar lights · White bar lights · UV bar lights

309 models Configure a systemAll lights
Infrared bar lights

289-309 of 309 models

Products

Compare
LS-BAR-1131Bar Light, 288 x 30 mm, IR 850 nm Infrared276 mm × 21.6 mm288 mm × 30 mm × 30 mm24 VDC16.8 W850 nm$309.00 Ships in 2-3 weeks
LS-BAR-1127Bar Light, 243 x 40 mm, IR 940 nm Infrared231 mm × 31.6 mm243 mm × 40 mm × 30 mm24 VDC21.6 W940 nm$289.00 Ships in 2-3 weeks
LS-BAR-1126Bar Light, 243 x 40 mm, IR 850 nm Infrared231 mm × 31.6 mm243 mm × 40 mm × 30 mm24 VDC21.1 W850 nm$289.00 Ships in 2-3 weeks
LS-BAR-1122Bar Light, 243 x 30 mm, IR 940 nm Infrared231 mm × 21.6 mm243 mm × 30 mm × 30 mm24 VDC14.4 W940 nm$289.00 Ships in 2-3 weeks
LS-BAR-1121Bar Light, 243 x 30 mm, IR 850 nm Infrared231 mm × 21.6 mm243 mm × 30 mm × 30 mm24 VDC14.2 W850 nm$289.00 Ships in 2-3 weeks
LS-BAR-1117Bar Light, 198 x 40 mm, IR 940 nm Infrared186 mm × 31.6 mm198 mm × 40 mm × 30 mm24 VDC17.3 W940 nm$319.00 Ships in 2-3 weeks
LS-BAR-1116Bar Light, 198 x 40 mm, IR 850 nm Infrared186 mm × 31.6 mm198 mm × 40 mm × 30 mm24 VDC16.8 W850 nm$319.00 Ships in 2-3 weeks
LS-BAR-1112Bar Light, 198 x 30 mm, IR 940 nm Infrared186 mm × 21.6 mm198 mm × 30 mm × 30 mm24 VDC11.5 W940 nm$319.00 Ships in 2-3 weeks
LS-BAR-1111Bar Light, 198 x 30 mm, IR 850 nm Infrared186 mm × 21.6 mm198 mm × 30 mm × 30 mm24 VDC11.3 W850 nm$319.00 Ships in 2-3 weeks
LS-BAR-1107Bar Light, 153 x 40 mm, IR 940 nm Infrared141 mm × 31.6 mm153 mm × 40 mm × 30 mm24 VDC13 W940 nm$259.00 Ships in 2-3 weeks
LS-BAR-1106Bar Light, 153 x 40 mm, IR 850 nm Infrared141 mm × 31.6 mm153 mm × 40 mm × 30 mm24 VDC12.7 W850 nm$259.00 Ships in 2-3 weeks

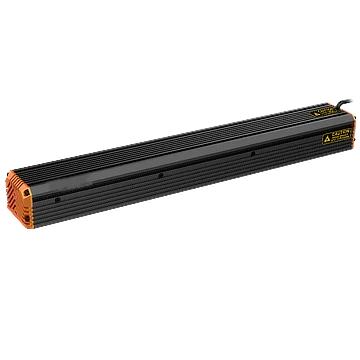

LS-BAR-1102Bar Light, 153 x 30 mm, IR 940 nm Infrared141 mm × 21.6 mm153 mm × 30 mm × 30 mm24 VDC8.6 W940 nm$259.00 Ships in 2-3 weeks
LS-BAR-1101Bar Light, 153 x 30 mm, IR 850 nm Infrared141 mm × 21.6 mm153 mm × 30 mm × 30 mm24 VDC8.4 W850 nm$259.00 Ships in 2-3 weeks
LS-BAR-1097Bar Light, 108 x 40 mm, IR 940 nm Infrared96 mm × 31.6 mm108 mm × 40 mm × 30 mm24 VDC8.6 W940 nm$209.00 Ships in 2-3 weeks
LS-BAR-1096Bar Light, 108 x 40 mm, IR 850 nm Infrared96 mm × 31.6 mm108 mm × 40 mm × 30 mm24 VDC8.4 W850 nm$209.00 Ships in 2-3 weeks
LS-BAR-1092Bar Light, 108 x 30 mm, IR 940 nm Infrared96 mm × 21.6 mm108 mm × 30 mm × 30 mm24 VDC5.8 W940 nm$209.00 Ships in 2-3 weeks
LS-BAR-1091Bar Light, 108 x 30 mm, IR 850 nm Infrared96 mm × 21.6 mm108 mm × 30 mm × 30 mm24 VDC5.5 W850 nm$209.00 Ships in 2-3 weeks
LS-BAR-1087Bar Light, 63 x 40 mm, IR 940 nm Infrared51 mm × 31.6 mm63 mm × 40 mm × 30 mm24 VDC4.3 W940 nm$159.00 Ships in 2-3 weeks
LS-BAR-1086Bar Light, 63 x 40 mm, IR 850 nm Infrared51 mm × 31.6 mm63 mm × 40 mm × 30 mm24 VDC4.3 W850 nm$159.00 Ships in 2-3 weeks
LS-BAR-1082Bar Light, 63 x 30 mm, IR 940 nm Infrared51 mm × 21.6 mm63 mm × 30 mm × 30 mm24 VDC2.9 W940 nm$159.00 Ships in 2-3 weeks
LS-BAR-1081Bar Light, 63 x 30 mm, IR 850 nm Infrared51 mm × 21.6 mm63 mm × 30 mm × 30 mm24 VDC2.9 W850 nm$159.00 Ships in 2-3 weeks
