Hikrobot MV-CA013-A0GC 1.3MP 面陣相機, GigE, 彩色

型號 MV-CA013-A0GCHikrobot

  • 解析度1280 × 1024
  • 感測器CMOS, 全域快門
  • 速度92.8 fps @ 1280 × 1024
  • 鏡頭接環C-mount
  • 單色 / 彩色顏色
  • 像素尺寸4.8 μm
$389.00
List price

即將停產：製造商正逐步淘汰此型號，庫存有限。請洽詢供貨情況或後繼型號。

2-3 週內出貨

0.24 kg 運送重量

美國不提供。可運送至其他國家。

諮詢工程師Browse 面陣相機

lumaspecvision.com/zh-hant/products/lumaspec-mv-ca013-a0gc

MV-CA013-A0GC: 解析度 1280 x 1024；感光元件類型 CMOS，全域快門；感光元件尺寸 1/2"；最高畫面更新率 92.8 fps @ 1280 x 1024；單色/彩色。

Hikrobot MV-CA013-A0GC 1.3MP 面陣相機，GigE，彩色。支援增益與曝光時間的自動或手動調整，以及 LUT 與 Gamma 校正等手動調整。支援硬體觸發、軟體觸發及連續運行等。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
  • 全球追蹤運送追蹤 UPS 或 DHL
  • 至少 3 年保固涵蓋材料與工藝缺陷
  • 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
  • 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
  • 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay

90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy

規格

一般

型號MV-CA013-A0GC
品牌Hikrobot
相容性GigE Vision V2.0, GenICam

感測器與成像

感光元件類型CMOS, 全域快門
像素尺寸4.8 μm
感光元件尺寸1/2"
解析度1280 × 1024
最大幀率92.8 fps @ 1280 × 1024
動態範圍54 dB
SNR40.6 dB
增益0 dB 至 16 dB
曝光時間9 μs 至 10 sec
曝光模式關閉/單次/連續曝光模式
像素格式單色 8/10/12, Bayer RG 8/10/10p/12/12p, YUV 422 (YUYV) 打包, YUV 422 打包, RGB 8, BGR 8
Binning支援 1 × 1, 2 × 2, 4 × 4
抽取支援 1 × 1, 2 × 2, 4 × 4
影像反轉支援水平與垂直反轉影像輸出
單色/彩色顏色

介面與I/O

資料介面 Gigabit 乙太網路, 相容於快速乙太網路
數位 I/O6-pin Hirose 接頭提供電源與 I/O，包括光隔離輸入 × 1 (Line 0), 光隔離輸出 × 1 (Line 1), 雙向非隔離 I/O × 1 (Line 2)。
客戶端軟體MVS 或符合 GigE Vision 協定的第三方軟體

環境與合規性

防護等級IP30
溫度工作溫度：0 °C 至 50 °C（32 °F 至 122 °F）；儲存溫度：–30 °C 至 70 °C（–22 °F 至 158 °F）
濕度20% RH 至 80% RH (無冷凝)
認證CE, RoHS, KC

運算

作業系統32/64 位元 Windows 7/10, 32/64 位元 Linux

電氣

電源9 VDC 至 24 VDC, 支援 PoE
功耗典型 2.7 W @ 12 VDC

機械

鏡頭接環C-mount
尺寸29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
重量約 100 g (0.22 lb.)
出貨重量（估計）0.24 kg

工程數據

MV-CA013-A0GC 之視野與解析度

Sensor area6.14 × 4.92 mm1/2" optical format
Lens image circle needed≥ Ø 7.9 mmC-mount
像素間距4.8 µm1280 x 1024 px
Image data at max frame rate122 MB/sCalculated: 92.8 fps × 1280 × 1024 px at 8 bit · GigE carries 125 MB/s nominal
配備 16 mm 鏡頭，工作距離 500 mm192 × 154 mm0.15 mm per pixel
動態範圍54 dB
SNR40.6 dB
功耗2.7 Wtyp. at 12 V DC
快門全域
Exposure range9 µs 至 10 s
重量100 gapprox.
依鏡頭焦距與工作距離的視野 (寬 × 高) 與物件像素尺寸
鏡頭At 300 mmAt 500 mmAt 1000 mm
8 mm230 × 184 mm0.18 mm per pixel384 × 308 mm0.3 mm per pixel768 × 615 mm0.6 mm per pixel
12 mm154 × 123 mm0.12 mm per pixel256 × 205 mm0.2 mm per pixel512 × 410 mm0.4 mm per pixel
16 mm115 × 92.2 mm0.09 mm per pixel192 × 154 mm0.15 mm per pixel384 × 308 mm0.3 mm per pixel
25 mm73.7 × 59 mm0.058 mm per pixel123 × 98.4 mm0.096 mm per pixel246 × 197 mm0.192 mm per pixel
35 mm52.6 × 42.2 mm0.041 mm per pixel87.7 × 70.3 mm0.069 mm per pixel175 × 141 mm0.137 mm per pixel
50 mm36.8 × 29.5 mm0.029 mm per pixel61.4 × 49.2 mm0.048 mm per pixel123 × 98.4 mm0.096 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

相容零件

適用於此零件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $610.00

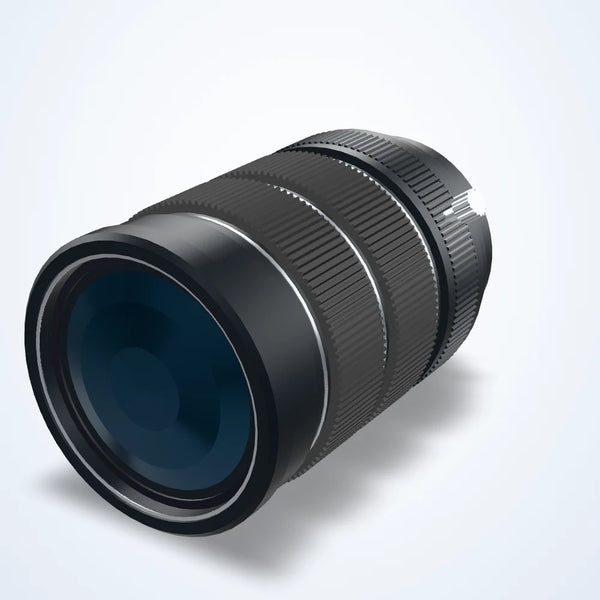

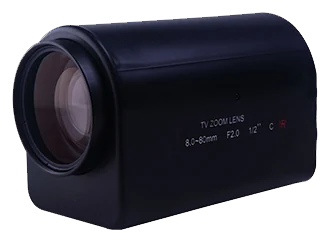

此 C-mount 相機適用鏡頭

This camera's 7.9 mm sensor diagonal uses 99 % of the lens's 8 mm image circle

This camera's 7.9 mm sensor diagonal uses 99 % of the lens's 8 mm image circle

This camera's 7.9 mm sensor diagonal uses 99 % of the lens's 8 mm image circle

This camera's 7.9 mm sensor diagonal uses 99 % of the lens's 8 mm image circle

This camera's 7.9 mm sensor diagonal uses 99 % of the lens's 8 mm image circle

This camera's 7.9 mm sensor diagonal uses 99 % of the lens's 8 mm image circle

纜線與影像擷取卡

購買前須知

Questions about the MV-CA013-A0GC

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the MV-CA013-A0GC?

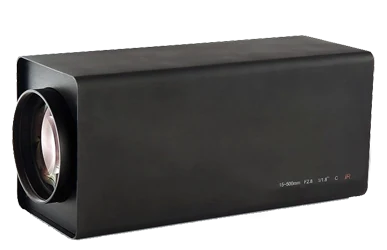

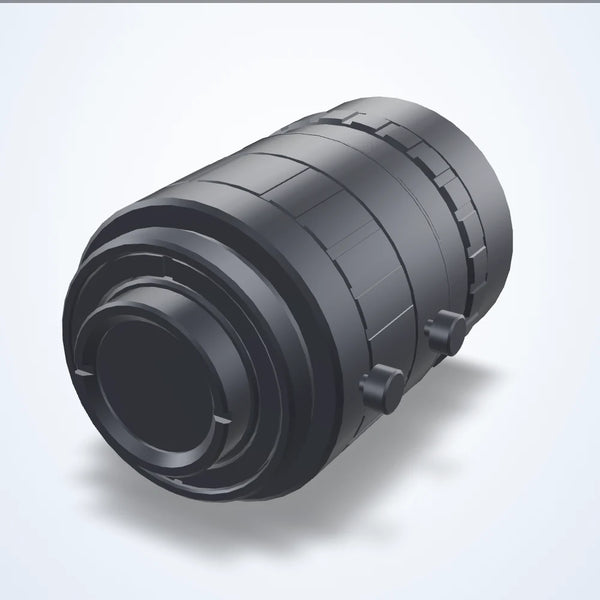

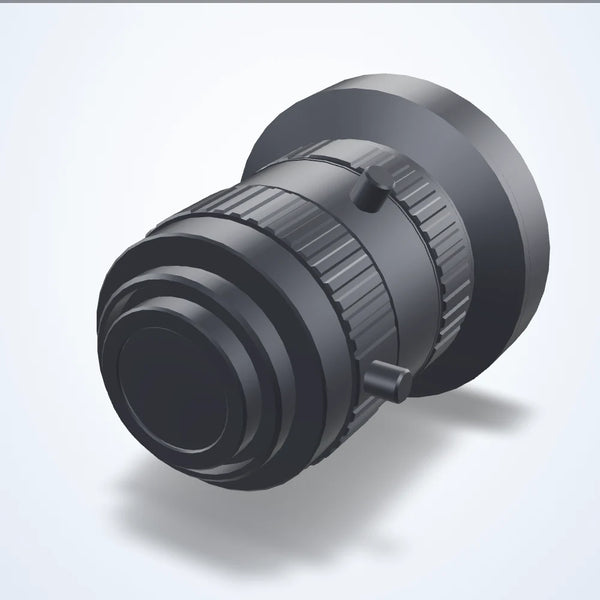

C-mount lenses whose image circle covers its sensor diagonal (about 7.9 mm): LS-FFL-0016 (5 mm), LS-FFL-0073 (6 mm), LS-TCL-1916 (1x) and LS-CTV-0078 (10-320 mm).

What data rate does the MV-CA013-A0GC need over GigE?

About 122 MB/s at its printed 92.8 fps at 1280 x 1024 (8 bits per pixel, calculated), about 98 % of the nominal 125 MB/s GigE link.

Which cables does the MV-CA013-A0GC take?

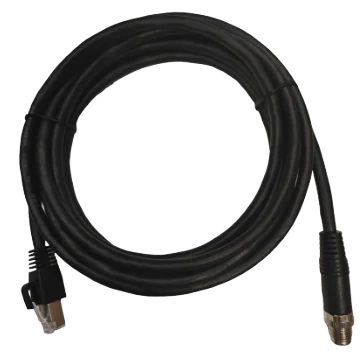

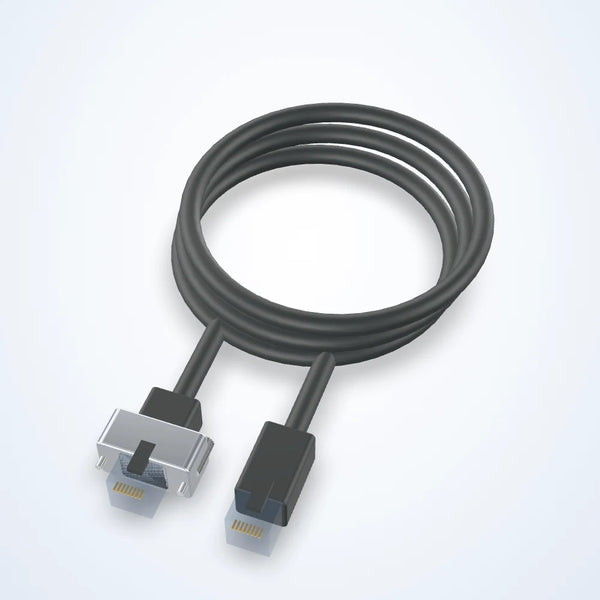

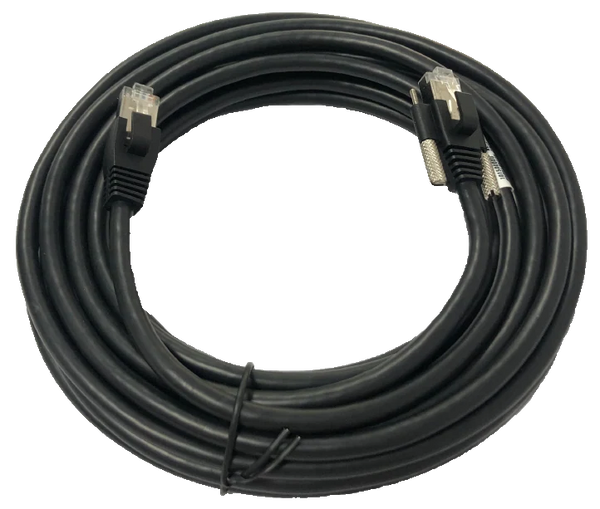

Fit-tested for its GigE interface: LS-CBL-0195 (3 m), LS-CBL-0196 (5 m), LS-CBL-0072 (1 m), LS-CBL-0084 (1 m) and LS-CBL-0107 (1 m).

How does the MV-CA013-A0GC connect?

Printed: Data interface: Gigabit Ethernet, compatible with Fast Ethernet.

What I/O does the MV-CA013-A0GC have?

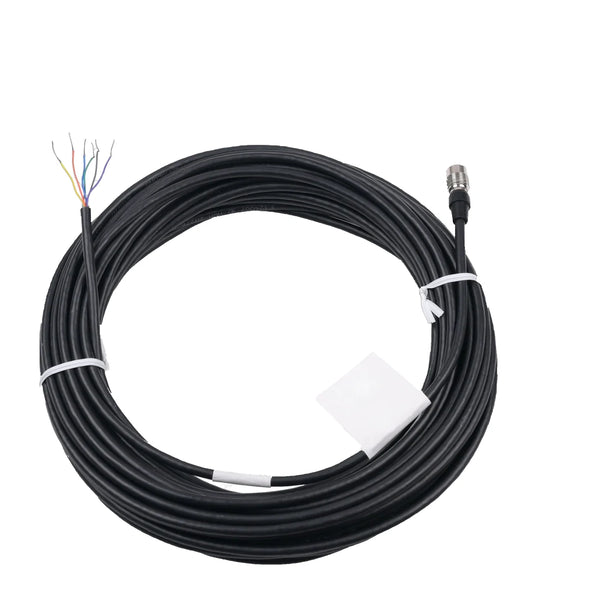

Printed: Digital I/O: 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).

CA 系列 GigE 面陣相機 系列其他型號

查看所有19型號

How this model compares

  • Same 1280 × 1024 resolution and pixel size as MV-CA013-A0GM (Mono); this one: Color.
  • Full-resolution 8-bit frames at 92.8 fps work out to about 122 MB/s, 97% of the 125 MB/s a 1 Gbit/s link carries.
  • Compared with MV-CA013-20GC: maximum frame rate 92.8 fps @ 1280 x 1024 here, 90 fps @ 1280 x 1024 there; dynamic range 54 dB here, 59.6 dB there.
