35 mm 電動對焦鏡頭，1.1"，20 MP，F2.8，C-mount (LS-FFL-1481)
  • 35 mm 電動對焦鏡頭，1.1"，20 MP，F2.8，C-mount (LS-FFL-1481)
  • 35 mm 電動對焦鏡頭，1.1"，20 MP，F2.8，C-mount (LS-FFL-1481)

渲染圖：實際產品外觀可能有所不同。

機器視覺鏡頭

35 mm 電動對焦鏡頭，1.1"，20 MP，F2.8，C-mount (LS-FFL-1481)

型號 LS-FFL-1481

  • 焦距35 mm
  • 安裝C-mount
  • 感測器1.1"
  • 光圈F2.8
  • 解析度20 MP
  • 視野22.6°x17°x28.3°
$640.00

3-4 週內出貨

0.31 kg 運送重量

需要批量定價、淨價 30 條款或正式採購報價？

lumaspecvision.com/zh-hant/products/lumaspec-ls-ffl-1481

請求詢價

35 mm 電動對焦鏡頭，1.1"，20 MP，F2.8，C-mount (LS-FFL-1481)LS-FFL-1481

透過電子郵件提供價格、交期和數量價格，通常在一個工作日內。

加入電話、交貨日期或備註（選填）

無需帳號。我們會在一個工作天內回覆。

LS-FFL-1481: 焦距 35 mm，視野 22.6°x17°x28.3°，畸變 ＜ 0.02 %。

35 mm 機器視覺相機用電動對焦鏡頭。焦距 35 mm；最大支援感測器 1.1"；解析度 20 MP；光圈 F2.8；C-mount。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
  • 全球追蹤運送追蹤 UPS 或 DHL
  • 至少 3 年保固涵蓋材料與工藝缺陷
  • 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
  • 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
  • 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay

90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy

規格

一般

型號LS-FFL-1481
最短物距0.2
前/後有效孔徑前 Φ23 mm 後 Φ19.1 mm

光學

焦距35 mm
光圈F2.8
後焦距22.9 mm
視野22.6°x17°x28.3°
畸變＜ 0.02%
對焦電動
濾光片螺紋M35.5×0.5

感測器與成像

感光元件格式1.1"
解析度20MP

環境與合規性

工作溫度-10~+50° C

機械

安裝C-mount
法蘭後長度17.526 mm
出貨重量1.00 kg

工程數據

LS-FFL-1481 之視野

焦距35 mm
像圈Ø 17.6 mm可覆蓋感測器最大 1.1"
視角22.8° × 16.8°Calculated for a 1.1" sensor; 28.1° diagonal
最近對焦200 mm
畸變< 0.02 %
後焦距22.9 mm
濾光片螺紋M35.5 × 0.5
35 mm 鏡頭於工作距離下之視野 (寬 × 高) 與感光元件格式
感光元件格式At 200 mmAt 500 mmAt 1000 mmAt 2000 mm
2/3"8.8 × 6.6 mm50.3 × 37.7 mm126 × 94.3 mm251 × 189 mm503 × 377 mm
1/1.2"11.25 × 7.03 mm64.3 × 40.2 mm161 × 100 mm321 × 201 mm643 × 402 mm
1"13.2 × 8.8 mm75.4 × 50.3 mm189 × 126 mm377 × 251 mm754 × 503 mm
1.1"14.13 × 10.35 mm80.7 × 59.1 mm202 × 148 mm404 × 296 mm807 × 591 mm

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length, with the distance measured to the front of the lens; closest to reality when the distance is many times the focal length. Sensor sizes are typical for each optical format.

相容零件

適用於此零件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $2,409.00

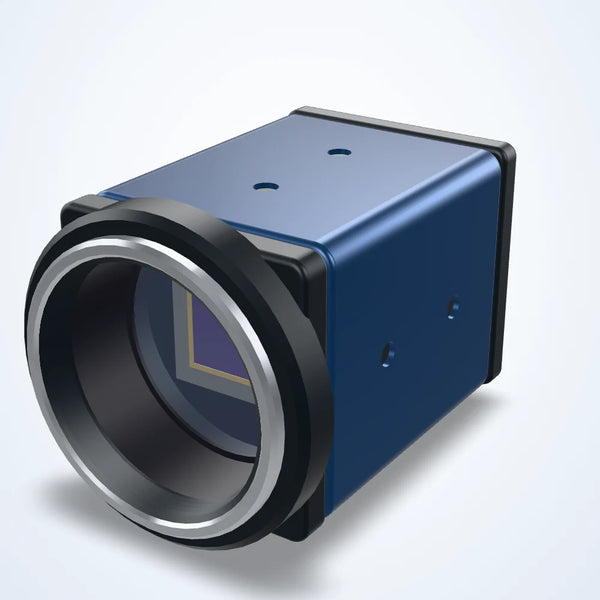

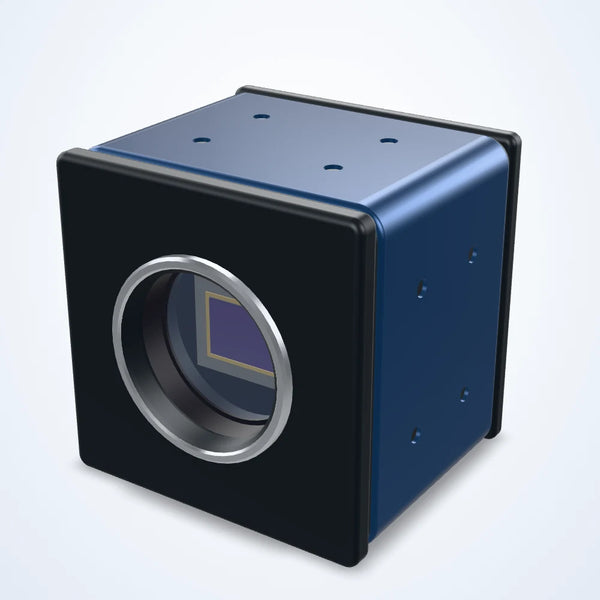

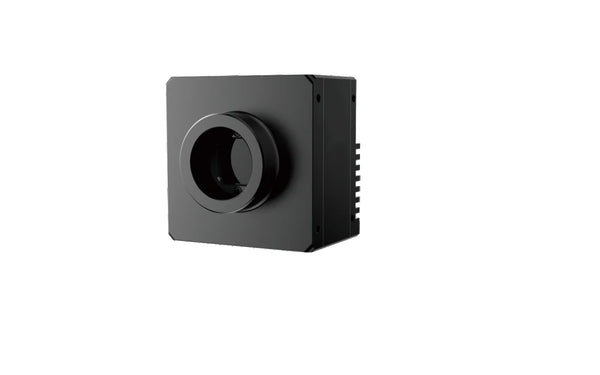

適用此鏡頭的相機

Its 17.4 mm sensor diagonal uses 99 % of this lens's 17.6 mm image circle

Its 17.5 mm sensor diagonal uses 99 % of this lens's 17.6 mm image circle

Its 17.6 mm sensor diagonal uses 100 % of this lens's 17.6 mm image circle

Its 17.2 mm sensor diagonal uses 98 % of this lens's 17.6 mm image circle

Its 17.5 mm sensor diagonal uses 99 % of this lens's 17.6 mm image circle

Its 17.5 mm sensor diagonal uses 99 % of this lens's 17.6 mm image circle

轉接環

適用於 CS-mount 相機

Filters for this lens's filter thread

購買前須知

Questions about the LS-FFL-1481

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which cameras does the LS-FFL-1481 cover?

Its image circle (about 17.6 mm) covers these fit-tested cameras: LS-CMR-0483 (1.1", 12.6 MP), LS-CMR-0080 (1.1", 12.3 MP), LS-CMR-0062 (1.1") and LS-CMR-0360 (1.1", 4.2 MP).

What field of view does the LS-FFL-1481 give at 500 mm?

About 202 x 148 mm on a 1.1" sensor, about 807 x 591 mm at 2000 mm (calculated: sensor size x distance / 35 mm focal length).

Does the LS-FFL-1481 need an adapter for C-mount or CS-mount cameras?

Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.

What sensor size is the LS-FFL-1481 made for?

Printed: Sensor format: 1.1".

Which filters fit the LS-FFL-1481?

Filters with its printed M35.5×0.5 filter thread: LS-LXR-0206, LS-LXR-0211, LS-LXR-0216, LS-LXR-0221, LS-LXR-0226 and LS-LXR-0231.

1.1" 電動對焦鏡頭 (LS-FFL-S136) 系列其他型號

查看所有5型號

How this model compares

  • Focal length 35 mm; next down 25 mm (LS-FFL-1480), up 50 mm (LS-FFL-1482), of 5 focal lengths from 12 to 50 mm.
  • Compared with LS-FFL-1479: back focal length 22.9 mm here, 22.4 mm there; field of view 22.6°x17°x28.3° here, 46.3°x36°x55.4° there.
型號焦距視野價格庫存連結
LS-FFL-147812 mm57°x45°x66.7°$640.00 3-4 週內出貨 View
LS-FFL-147916 mm46.3°x36°x55.4°$640.00 3-4 週內出貨 View
LS-FFL-148025 mm30.4°x23°x37.6°$640.00 3-4 週內出貨 View
LS-FFL-1481This model35 mm22.6°x17°x28.3°$640.00 3-4 週內出貨
LS-FFL-148250 mm15.9°x11.9°x19.9°$640.00 3-4 週內出貨 View
