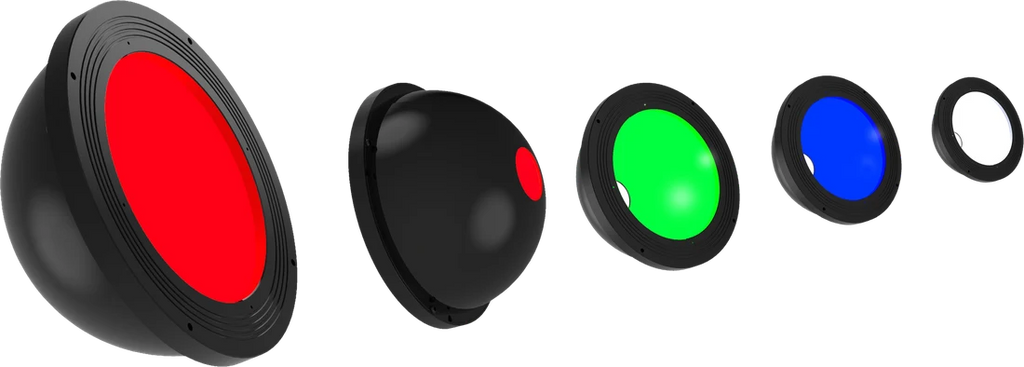

此型號的 CAD 示意圖。表面處理和光色僅供參考；請參閱規格和尺寸圖。

半球燈

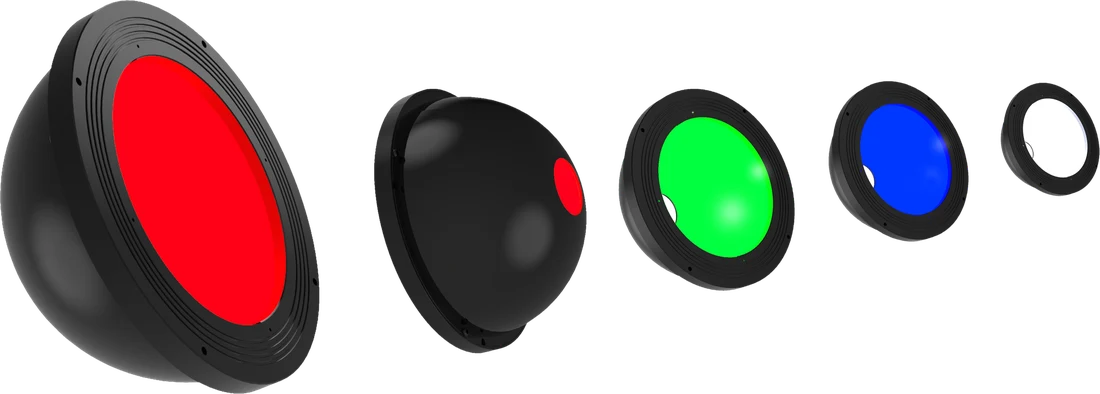

260 mm 外徑半球燈 (LS-DOM-0125)

型號 LS-DOM-0125-R

顏色紅色, 綠色, 藍色, 白色
電壓24 V
功率，紅色30 W
功率 G/B/W38 W

$1,479.00

2-3 週內出貨

2.85 kg 運送重量

顏色紅色綠色藍色白色

需要批量定價、淨價 30 條款或正式採購報價？

lumaspecvision.com/zh-hant/products/lumaspec-ls-dom-0125

LS-DOM-0125：OD x H 260x125.5 mm，功率紅色 30 W，孔徑 48 mm。

260 mm 外徑半球燈。半球形光源，具有極佳的無影效果、大照明區域及高均勻度。每款型號在半球頂部均設有相機孔 (孔徑詳見各型號)。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details

全球追蹤運送追蹤 UPS 或 DHL
至少 3 年保固涵蓋材料與工藝缺陷
包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay

90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy

規格

一般

型號	LS-DOM-0125
孔徑 (mm)	48
OD x H (mm)	260x125.5

介面與I/O

電纜長度 (mm, 依圖紙)	500

光源

顏色	紅色, 綠色, 藍色, 白色

電氣

電壓 (V)	24
功率, 紅色 (W)	30
功率 G/B/W (W)	38

機械

出貨重量（估計）	2.85 kg

安裝與圖面數據

圖紙：直徑 246 上有 6 x 直徑 3.5 的孔；圓頂直徑 234；底座開口直徑 193

下載

特點

優良的無陰影效果。
大照明面積。
高均勻度。

應用

反射面檢測
表面不規則檢測
食品/藥品外觀檢查
香菸盒/包裝印刷檢測
粗糙按鈕表面的字元檢查
食品字體
高光澤蓋帽表面檢測
面板焊點缺陷檢測

完成工作站

此配置器會將相機、鏡頭、光源、照明控制器與線材彼此匹配，並與此零件匹配。

使用此零件建立系統 Configure a system 諮詢工程師

工程數據

安裝並固定 LS-DOM-0125

24 V 下的電流綠色 / 藍色 / 白色: 1583 mACalculated: printed power ÷ supply voltage

所需控制器通道24 V constant voltage, at least 38 W

Mounting and installation

安裝孔	6 × Ø 3.5 mm, 以 Ø 246 mm 圓周節距 (P.C.D.) 排列
纜線	0.5 m

相容零件

適用於此零件

Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

This part260 mm 外徑半球燈 (LS-DOM-0125) $1,479.00
此光源的照明控制器數位控制箱、8 道、120 W、RS232 (LS-CTL-0068) $669.00

Set total $2,148.00

此光源的照明控制器

數位控制箱、8 道、120 W、RS232

LS-CTL-0068

通道 8
輸出 24V

$669.00

2-3 週內出貨

This 38 W light uses 63 % of one 60 W channel

ABS 數位光源控制器, 2 通道, 120 W, 90 x 94.6 mm

LS-CTL-0518

通道 2
輸出 24 V

$399.00

2-3 週內出貨

This 38 W light uses 63 % of one channel (about 60 W, from the rated output)

數位控制箱、4 道、200 W、RS232

LS-CTL-0070

通道 4
輸出 24V

$539.00

2-3 週內出貨

This 38 W light uses 63 % of one 60 W channel

類比控制器, 1 通道, 60 W

LS-CTL-0012

通道 1
輸出 12-24 V

$219.00

2-3 週內出貨

This 38 W light uses 63 % of one 60 W channel

數位控制箱，12 通道，200 W（LS-CTL-0074）

LS-CTL-0074

通道 12
輸出 24V

$889.00

2-3 週內出貨

This 38 W light uses 63 % of one 60 W channel

外接電源數位控制器, 16 通道

LS-CTL-0422

通道 16
輸出定電壓 24 V

$1,599.00

2-3 週內出貨

This 38 W light uses 79 % of one channel (about 48 W, from the rated output)

應用案例

Applications for this type of part

Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.

All application studies

Set up with the LS-DOM-0095, the same type of part

Source colour capture of a round instant-noodle cake under a white dome light: a thin dark fibre lies across the yellow noodles. Complete capture inside the brochure frame, not retouched.

食品、製藥與農業食品與農業 · 異物成像年糕異物纖維均勻的半球燈可壓平麵條紋理，使黑色纖維更加突出。光源內LS-DOM-0095 · 白色探索研究

Set up with the LS-DOM-0094, the same type of part

Source capture of a moulded bottle base under a white dome light: central star, a ring of curved moulded marks and a raised two-character code. Complete capture, not retouched.

包裝、標籤與印刷包裝與容器 · 鑄模代碼成像瓶底鑄模代碼漫射半球燈可均勻照明曲面底部，使鑄模代碼可被讀取。光源內LS-DOM-0094 · 白色探索研究

Set up with the LS-DOM-0092, the same type of part

Source capture of a cylindrical battery part, end-on, under a red dome light: a bright face with an irregular dark ring around the central opening and a thin dark ring near the rim. Complete capture inside the brochure frame, not retouched.

電池與汽車應用鋰電池製造 · 膠水存在影像電池膠環半球燈可將光亮金屬轉換為均勻的光場，以便檢查膠帶環的各個方向。光源內LS-DOM-0092 · 紅色探索研究

購買前須知

Questions about the LS-DOM-0125

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which controller drives the LS-DOM-0125?

Fit-tested for this 38 W light: LS-CTL-0068 (60 W per channel, about 37 % headroom), LS-CTL-0518 (about 60 W per channel, about 37 % headroom), LS-CTL-0070 (60 W per channel, about 37 % headroom) and LS-CTL-0012 (60 W per channel, about 37 % headroom).

What supply voltage and power does the LS-DOM-0125 need?

Voltage: 24 V; Power, red: 30 W; Power G/B/W: 38 W. That is about 1.58 A at 38 W (G/B/W) on 24 V (calculated).

How does the LS-DOM-0125 differ from LS-DOM-0124?

Compared with LS-DOM-0124: power (red) 30 W here, 22 W there; power (green, blue, white) 38 W here, 28 W there.

半球燈（LS-DOM-S20）系列其他型號

查看所有7型號

The highest 功率，紅色 in this series (1.5 至 30 W)
The highest 功率 G/B/W in this series (2 至 38 W)
The largest Hole dia in this series (12 至 48 mm)

How this model compares

Compared with LS-DOM-0124: power (red) 30 W here, 22 W there; power (green, blue, white) 38 W here, 28 W there.

型號	OD x H	功率，紅色	功率 G/B/W	價格	庫存	連結
LS-DOM-0119	44 x 35 mm	1.5 W	2 W	$199.00	2-3 週內出貨	CompareView
LS-DOM-0120	79 x 35.52 mm	2.3 W	3 W	$449.00	2-3 週內出貨	CompareView
LS-DOM-0121	116 x 57 mm	8 W	12 W	$509.00	2-3 週內出貨	CompareView
LS-DOM-0122	134 x 65.7 mm	12 W	15 W	$599.00	2-3 週內出貨	CompareView
LS-DOM-0123	171 x 82.8 mm	18 W	21 W	$819.00	2-3 週內出貨	CompareView
LS-DOM-0124	196 x 100 mm	22 W	28 W	$979.00	2-3 週內出貨	CompareView
LS-DOM-0125This model	260 x 125.5 mm	30 W	38 W	$1,479.00	2-3 週內出貨	Compare
