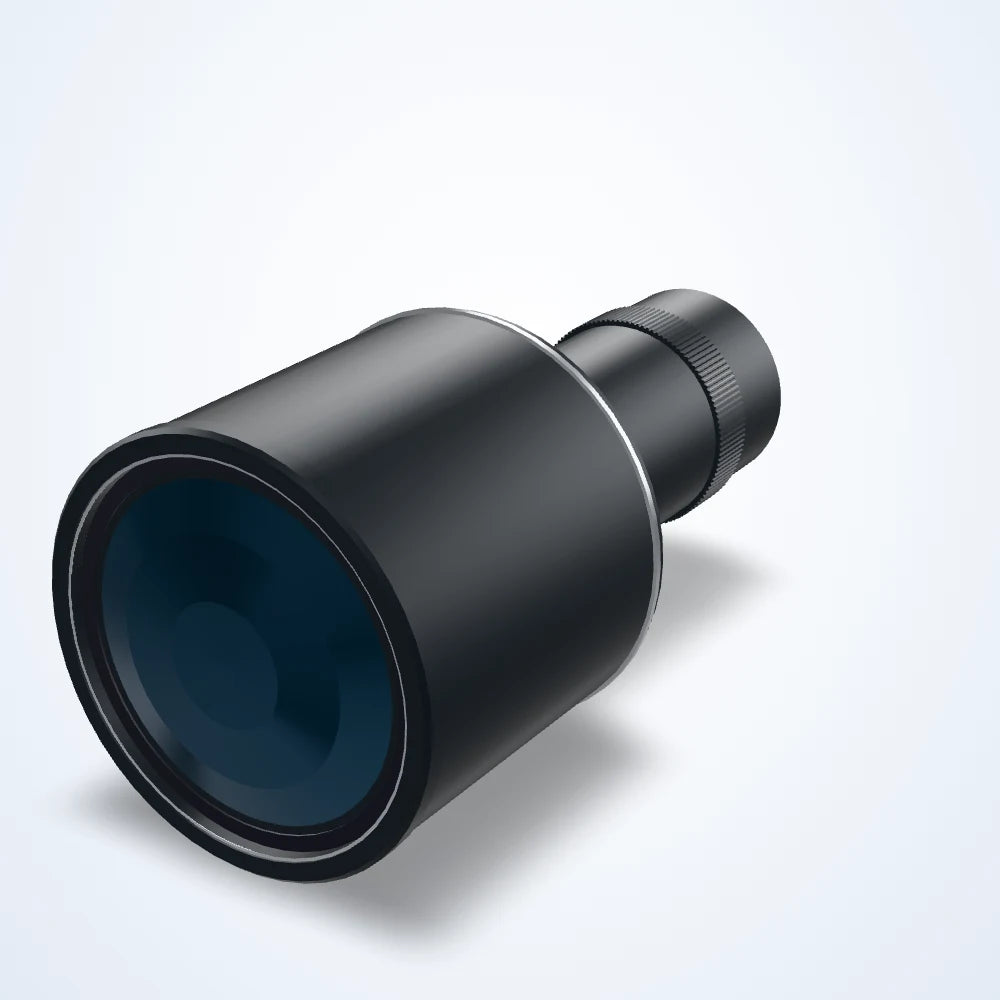

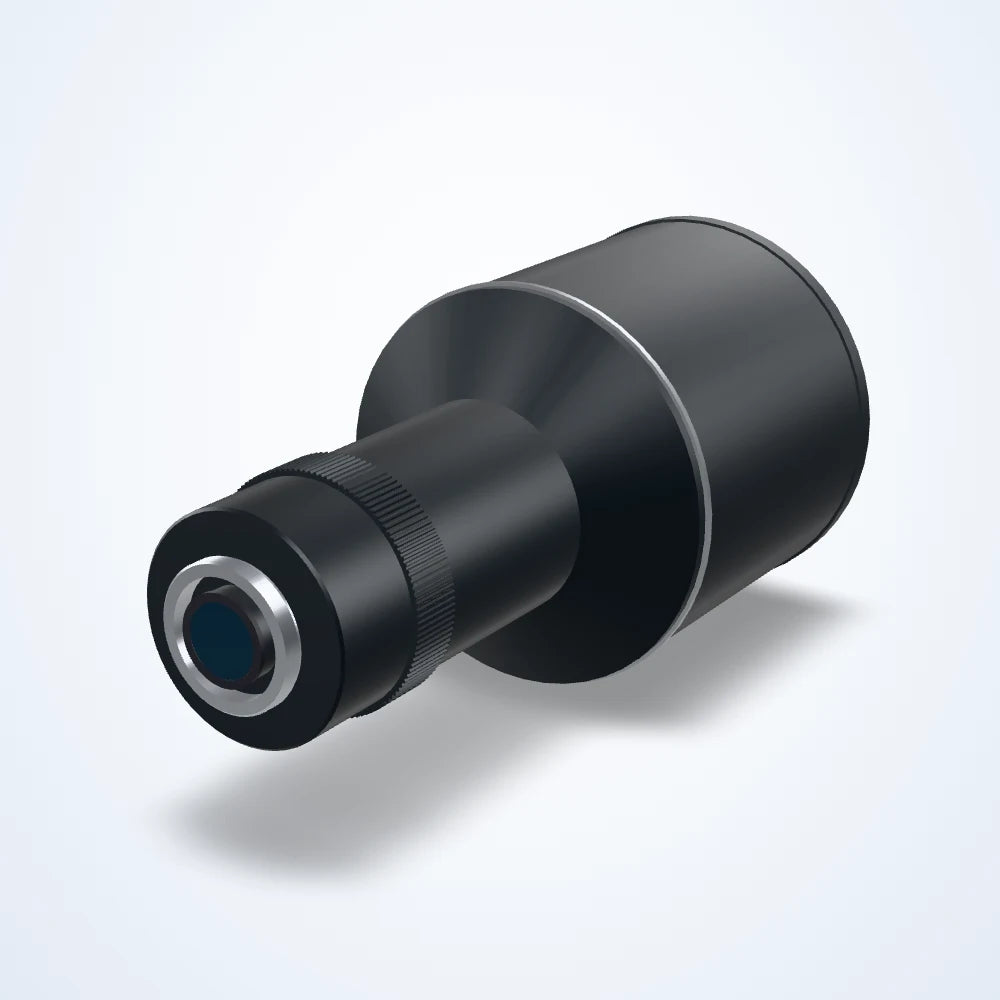

0.166x 双远心镜头, 工作距离 173 mm, 2/3" (LS-TCL-1232)

型号 LS-TCL-1232

  • 放大倍率0.166X
  • 接口C-mount
  • 传感器2/3"
  • 工作距离173±3 mm
  • 光圈3.3
  • 视场66 Φmm
$825.00

3-4 周内发货

1.0 kg 运输重量

批量定价，净30条款或正式采购报价？

lumaspecvision.com/zh-hans/products/lumaspec-ls-tcl-1232

请求报价

0.166x 双远心镜头, 工作距离 173 mm, 2/3" (LS-TCL-1232)LS-TCL-1232

通过电子邮件发送价格、交货期和批量价格，通常在一天内完成。

添加电话、交货日期或备注（可选）

无需账户。我们将在一个工作日内回复。

LS-TCL-1232：放大倍率 0.166X，工作距离 173±3 mm，景深 ±4.8@F3.3，长度 146.5 mm。

0.166x 双远心镜头，用于非接触式测量和量具。放大倍率 0.166x；工作距离 173 mm；覆盖传感器最高 2/3"。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全结账 Shipping, warranty, support and payment details
  • 全球追踪物流Tracked UPS or DHL
  • 至少 3 年保修涵盖材料和工艺缺陷
  • 包含专业机器视觉支持来自我们的工程团队，包括持证专业工程师
  • 批量折扣与 30 净价适用于已批准的商业账户；欢迎采购订单
  • 由 Shopify 提供安全结算信用卡、PayPal、Shop Pay 或 Google Pay

90 天退货 未使用的商品，自交付之日起计算；美国境内免费退货标签；无重新入库费 Return policy

规格

通用

型号LS-TCL-1232

光学

可变光圈是
同轴照明接口否
放大倍率0.166X
工作距离173±3 mm
光圈3.3
MTF>260
视场66 Φmm
景深±4.8@F3.3
畸变<0.1 % 最大值
远心度<0.1 ° 最大值

传感器与成像

传感器幅面2/3"

机械

长度146.5 mm
接口C
运输重量1.00 kg

Engineering data

Field of view with the LS-TCL-1232

像圆Ø 11 mmCovers sensors up to 2/3"
放大倍率0.166×
工作距离173 mm景深 ±4.8 毫米 @ F3.3
畸变< 0.1 %
Total length146.5 mm
Field of view (width × height) by sensor format
传感器幅面0.166×
1/2.5"5.76 × 4.29 mm34.7 × 25.8 mm
1/2"6.4 × 4.8 mm38.6 × 28.9 mm
1/1.8"7.07 × 5.3 mm42.6 × 31.9 mm
2/3"8.8 × 6.6 mm53 × 39.8 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

适配此部件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $1,593.00

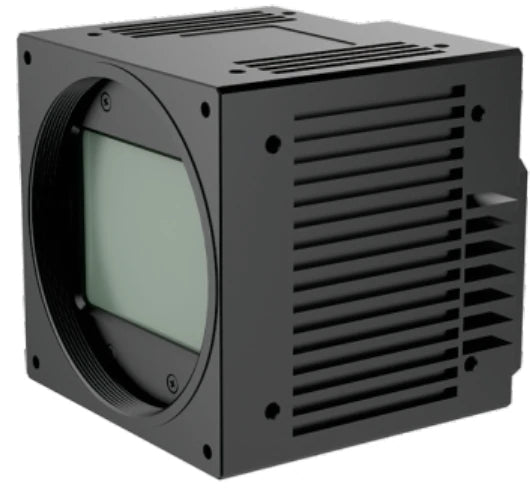

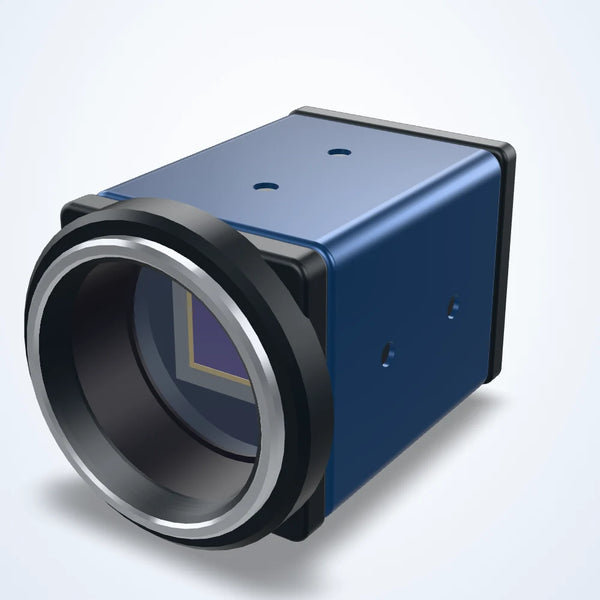

适配此镜头的相机

Its 10.9 mm sensor diagonal uses 99 % of this lens's 11 mm image circle

Its 11 mm sensor diagonal uses 100 % of this lens's 11 mm image circle

Its 11 mm sensor diagonal uses 100 % of this lens's 11 mm image circle

Its 11 mm sensor diagonal uses 100 % of this lens's 11 mm image circle

Its 10.9 mm sensor diagonal uses 99 % of this lens's 11 mm image circle

Its 9.2 mm sensor diagonal uses 84 % of this lens's 11 mm image circle

适配器

For CS-mount cameras

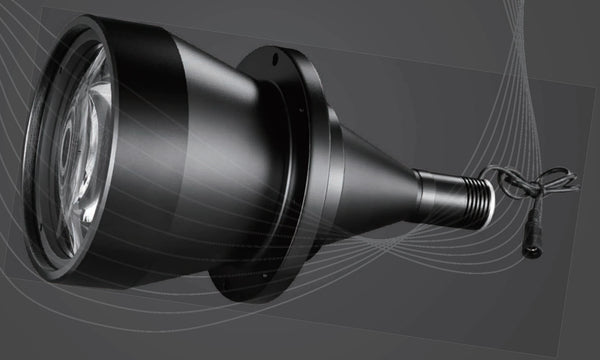

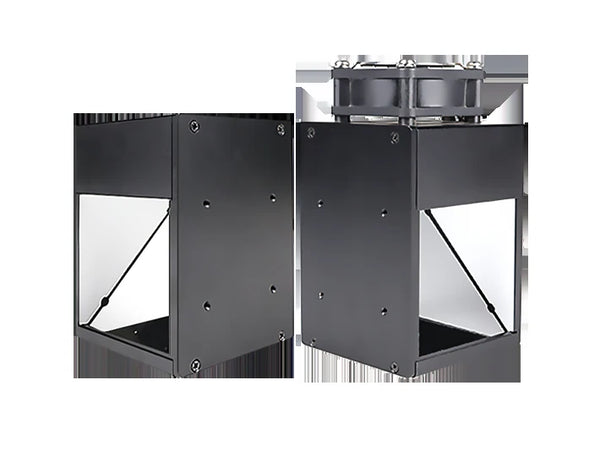

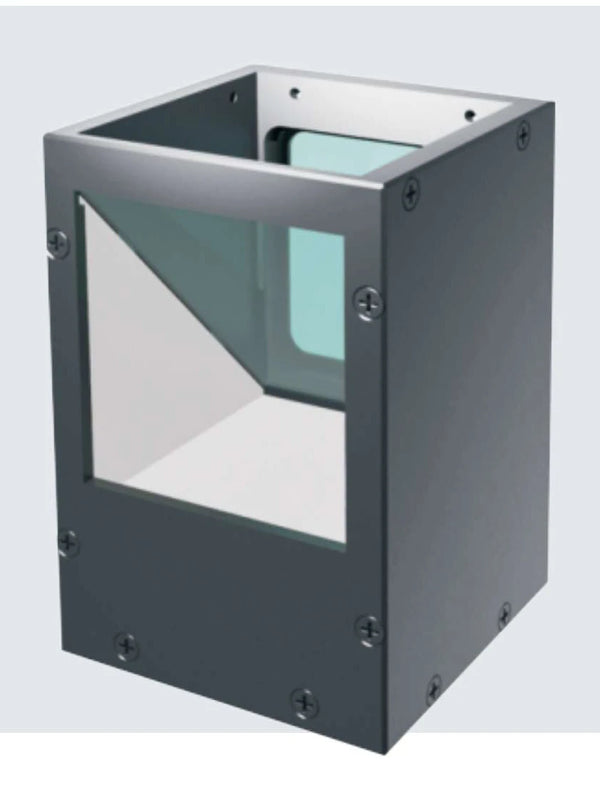

Lights for this lens

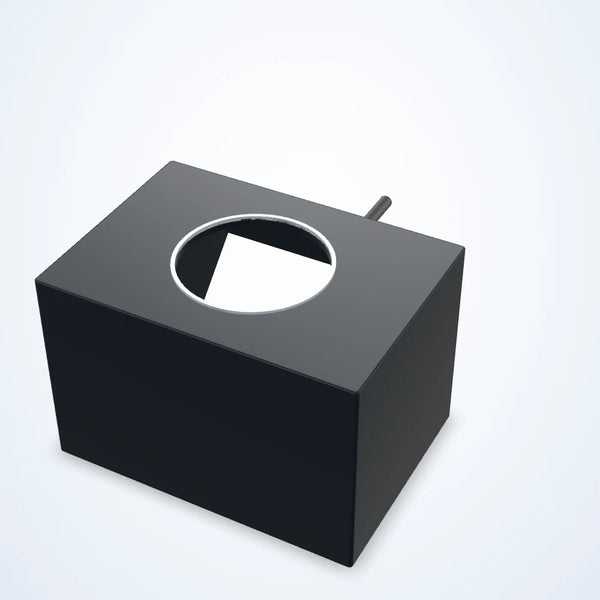

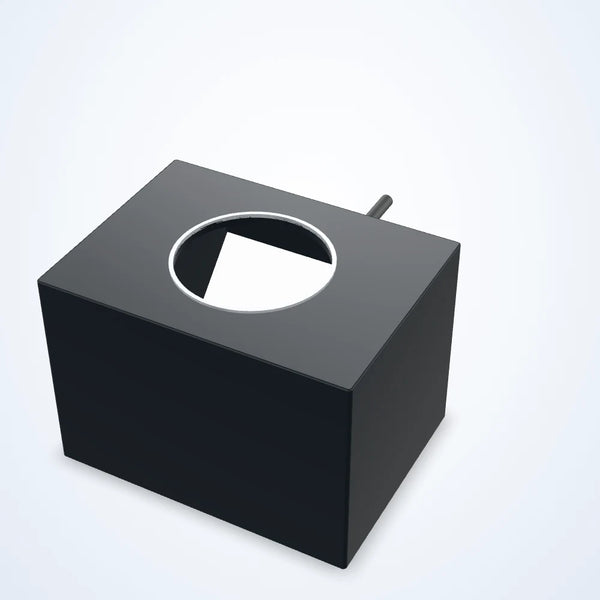

75 x 73 mm 同轴光源

LS-CXL-0168

  • 颜色 红色、蓝色、白色、绿色、红外、UV
  • 发光面 75 x 73 mm

起 $340.00

3-4 周内发货

购买前

Questions about the LS-TCL-1232

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which cameras does the LS-TCL-1232 cover?

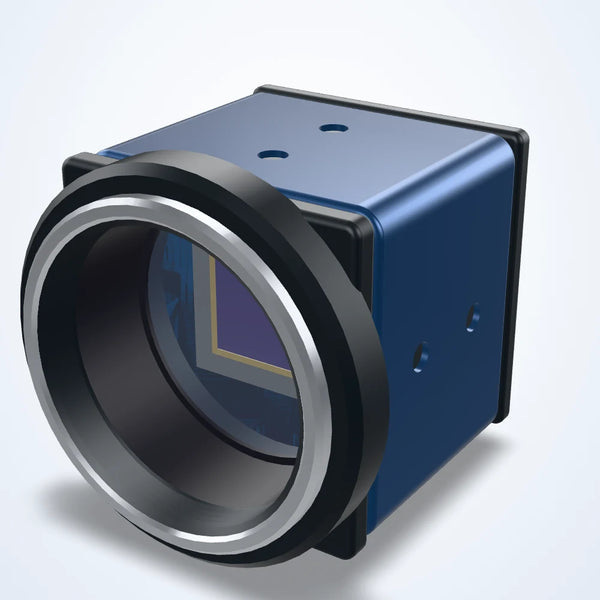

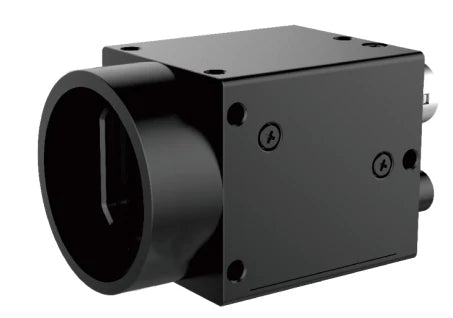

Its image circle (about 11 mm) covers these fit-tested cameras: LS-CMR-0340 (2/3", 2.3 MP), LS-CMR-0151 (2/3", 5 MP), LS-CMR-0093 (2/3") and LS-CMR-0158 (2/3", 8.1 MP).

What field of view does the LS-TCL-1232 give?

About 53 x 39.8 mm on a 2/3" sensor, at its 173 mm working distance (calculated: sensor size / 0.166x magnification).

Does the LS-TCL-1232 need an adapter for C-mount or CS-mount cameras?

Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.

What sensor size is the LS-TCL-1232 made for?

Printed: Sensor format: 2/3".

Which light suits the LS-TCL-1232?

Collimated or coaxial lights whose printed beam covers its field of view: LS-CXL-0212, LS-CXL-0055, LS-CXL-0180 and LS-CXL-0064.

双远心镜头、2/3" (LS-TCL-S54) 系列的其他型号

查看所有76型号

How this model compares

  • Compared with LS-TCL-1227: working distance 173±3 mm here, 263±4 mm there; length 146.5 mm here, 269.6 mm there.
  • Total length 146.5 mm: 29 of the 54 telecentric lenses that list a total length are longer, 24 shorter (median 150.85 mm).
  • Magnification 0.166x; next down 0.158x (LS-TCL-1231), up 0.178x (LS-TCL-1233), of 33 magnifications from 0.038 to 6x.
型号放大倍率工作距离光圈Coaxial illumination port价格库存状况链接
LS-TCL-12230.067x318±5 mm4.9$3,000.00 3-4 周内发货 View
LS-TCL-12250.084x288±5 mm4.9$2,785.00 3-4 周内发货 View
LS-TCL-12260.095x273±5 mm4.9$1,705.00 3-4 周内发货 View
LS-TCL-12270.104x263±4 mm4.9$1,600.00 3-4 周内发货 View
LS-TCL-1232本型号0.166x173±3 mm3.3No$825.00 3-4 周内发货
LS-TCL-12420.3x110±2 mm5.6No$740.00 3-4 周内发货 View
LS-TCL-12490.4x85±2 mm4.5No$700.00 3-4 周内发货 View
LS-TCL-12510.4x85±2 mm4.5Yes$715.00 3-4 周内发货 View
LS-TCL-12580.5x110±2 mm7No$700.00 3-4 周内发货 View
