0.044× 远心镜头, 2/3", C-mount, 工作距离 328 mm (LS-TCL-0351)
  • 0.044× 远心镜头, 2/3", C-mount, 工作距离 328 mm (LS-TCL-0351)
  • 0.044× 远心镜头, 2/3", C-mount, 工作距离 328 mm (LS-TCL-0351) - 查看 2
  • LS-TCL-0351 尺寸 (mm)

渲染示意图：实际产品外观可能有所不同。

远心镜头

0.044× 远心镜头, 2/3", C-mount, 工作距离 328 mm (LS-TCL-0351)

型号 LS-TCL-0351

  • 放大倍率0.044×
  • 接口C-mount
  • 传感器2/3"
  • 工作距离328 mm
  • 分辨率115.9 μm
  • Field of view with 1/3” (4.8 x 3.6 mm sensor)109.59 x 82.19 mm
$13,639.00
List price

按报价销售：申请报价，我们将确认价格、交货期和批量价格。

交货期以报价为准

将零件添加到报价列表中，我们将回复价格、交货期和批量定价。

lumaspecvision.com/zh-hans/products/lumaspec-ls-tcl-0351

请求报价

0.044× 远心镜头, 2/3", C-mount, 工作距离 328 mm (LS-TCL-0351)LS-TCL-0351

通过电子邮件发送价格、交货期和批量价格，通常在一天内完成。

添加电话、交货日期或备注（可选）

无需账户。我们将在一个工作日内回复。

远心镜头，在整个景深内保持恒定放大倍率，用于测量和检测，无透视误差。工作距离 328 mm；景深 215.8 mm。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全结账 Shipping, warranty, support and payment details
  • 全球追踪物流Tracked UPS or DHL
  • 至少 3 年保修涵盖材料和工艺缺陷
  • 包含专业机器视觉支持来自我们的工程团队，包括持证专业工程师
  • 批量折扣与 30 净价适用于已批准的商业账户；欢迎采购订单
  • 由 Shopify 提供安全结算信用卡、PayPal、Shop Pay 或 Google Pay

90 天退货 未使用的商品，自交付之日起计算；美国境内免费退货标签；无重新入库费 Return policy

规格

通用

型号LS-TCL-0351
FOV @ 1/1.8″162.79 x 121.69 mm
FOV @ 1/2″146.12 x 109.59 mm
镜头类型远心
工作光圈值f/8

光学

放大倍率0.044×
工作距离328 mm
景深215.8 mm
畸变最大值（%）< 0.8
畸变典型值（%）< 0.8
滤镜螺纹无滤镜螺纹
Field of view with 1/3” (4.8 x 3.6 mm sensor)109.59 x 82.19 mm
Field of view with 1/2.5” (5.70 x 4.28 mm sensor)130.14 x 97.72 mm
Field of view with 1/2” (6.4 x 4.8 mm sensor)146.12 x 109.59 mm
Field of view with 1/1.8” (7.13 x 5.33 mm sensor)162.79 x 121.69 mm
Field of view with 2/3” (8.50 x 7.09 mm sensor)194.06 x 161.87 mm
图像尺寸规格8.93 x 7.45 mm
残余畸变（%）< 0.01
远心度最大值0.18°
远心度典型值< 0.12°

传感器与成像

传感器幅面2/3"
分辨率（像素尺寸）115.9 μm

环境和合规性

工作温度范围0 至 40°C
存储温度范围0 至 50°C

机械

接口C-mount
近似尺寸359 x 344 x 410 mm
重量8982 克

Engineering data

Field of view with the LS-TCL-0351

像圆Ø 11.6 mmCovers sensors up to 2/3"
放大倍率0.044×
工作距离328 mm景深 215.8 毫米
畸变< 0.8 %
尺寸359 × 344 × 410 mm
重量8982 g
Field of view (width × height) by sensor format
传感器幅面0.044×
1/2.5"5.76 × 4.29 mm131 × 97.5 mm
1/2"6.4 × 4.8 mm145 × 109 mm
1/1.8"7.07 × 5.3 mm161 × 120 mm
2/3"8.8 × 6.6 mm200 × 150 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

适配此部件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $17,425.00

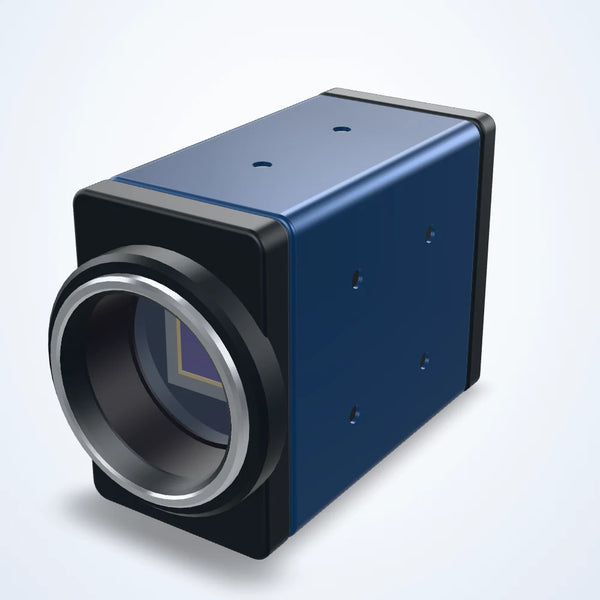

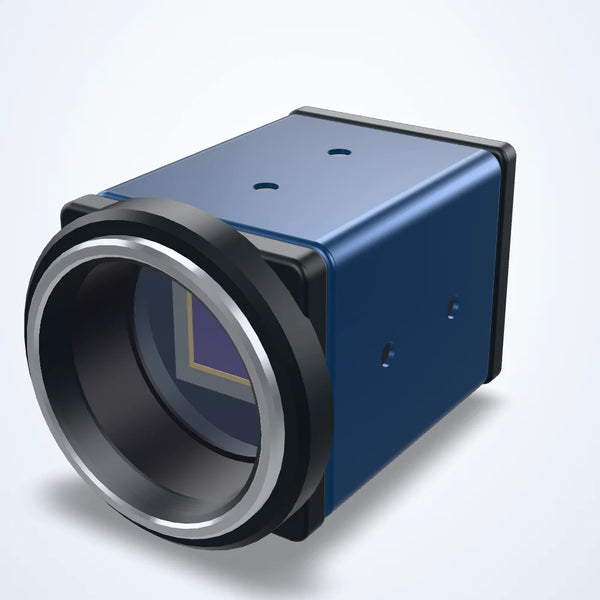

适配此镜头的相机

Its 11 mm sensor diagonal uses 95 % of this lens's 11.6 mm image circle

Its 10.9 mm sensor diagonal uses 94 % of this lens's 11.6 mm image circle

Its 11 mm sensor diagonal uses 95 % of this lens's 11.6 mm image circle

Its 10.9 mm sensor diagonal uses 94 % of this lens's 11.6 mm image circle

Its 11 mm sensor diagonal uses 95 % of this lens's 11.6 mm image circle

Its 9.2 mm sensor diagonal uses 79 % of this lens's 11.6 mm image circle

适配器

For CS-mount cameras

Lights for this lens

购买前

Questions about the LS-TCL-0351

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which cameras does the LS-TCL-0351 cover?

Its image circle (about 11.6 mm) covers these fit-tested cameras: LS-CMR-0076 (2/3", 5 MP), LS-CMR-0091 (2/3", 2.3 MP), LS-CMR-0093 (2/3") and LS-CMR-0310 (2/3", 2.8 MP).

What field of view does the LS-TCL-0351 give?

About 200 x 150 mm on a 2/3" sensor, at its 328 mm working distance (calculated: sensor size / 0.044x magnification).

Does the LS-TCL-0351 need an adapter for C-mount or CS-mount cameras?

Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.

What sensor size is the LS-TCL-0351 made for?

Printed: Sensor format: 2/3"; Image size dimensions: 8.93 x 7.45 mm.

Which light suits the LS-TCL-0351?

Collimated or coaxial lights whose printed beam covers its field of view: LS-CLM-0091 and LS-CLM-0092.

远心镜头，C-mount (LS-TCL-S20) 系列的其他型号

查看所有6型号

How this model compares

  • Working distance 328 mm: 2 of the 6 telecentric lenses in the series are longer, 2 shorter (median 328 mm).
  • Compared with LS-TCL-0348: magnification 0.044x here, 0.033x there; sensor format 2/3" here, 1/1.8" there.
型号分辨率放大倍率传感器工作距离价格库存状况链接
LS-TCL-035086.6 µm0.059×2/3"217.4 mm$13,639.00 报价 交货期以报价为准 View
LS-TCL-0347115.3 µm0.044×1/1.8"217.4 mm$13,639.00 报价 交货期以报价为准 View
LS-TCL-0351本型号115.9 µm0.044×2/3"328 mm$13,639.00 报价 交货期以报价为准
LS-TCL-0352141 µm0.036×2/3"366 mm$18,719.00 报价 交货期以报价为准 View
LS-TCL-0348154.3 µm0.033×1/1.8"328 mm$13,639.00 报价 交货期以报价为准 View
LS-TCL-0349188 µm0.027×1/1.8"366 mm$18,719.00 报价 交货期以报价为准 View
