GigE 板機器人 / 模組，1.3 MP，彩色（LS-BCM-0051）
LS-BCM-0051
- 解析度 1280x1024
- 介面 GigE (GigE Vision, GenICam)
$209.00
2-3 週內出貨
遠心鏡頭
雙遠心鏡頭，適用於 1/2.3" 相機, B 版本, 0.111x, 工作距離 178 mm, 1/2", C-mount (LS-TCL-2563)
型號 LS-TCL-2563
- 安裝C-mount
- 感測器1/2"
- 工作距離178±2 mm
- 搭配 9J003 (6.44x4.62 感測器) 之視野 (mm x mm)58.0x41.6 mm
$2,459.00
2-3 週內出貨
1.54 kg 運送重量
需要批量定價、淨價 30 條款或正式採購報價？
lumaspecvision.com/zh-hant/products/lumaspec-ls-tcl-2563
雙遠心鏡頭系列採用矩陣設計與極高成像品質；標準視場從 26 至 240 mm。每支鏡頭均附成像品質測試報告。
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
- 全球追蹤運送追蹤 UPS 或 DHL
- 至少 3 年保固涵蓋材料與工藝缺陷
- 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
- 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
- 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay
90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy
規格
一般
| 型號 | LS-TCL-2563 |
|---|---|
| 放大率 | 0.111x |
| FOV | 72 mm |
光學
| 工作距離 (mm) | 178±2 |
|---|---|
| 最佳光圈 (F/#) | 4.18 |
| 典型遠心度 (最大) (deg) | 0.1 |
| 典型畸變 (最大) (%) | 0.1 |
| MTF30 (lp/mm) | >247 |
| 景深 (mm) | ±6 |
| 搭配 9J003 (6.44x4.62 感測器) 之視野 (mm x mm) | 58.0x41.6 |
感測器與成像
| 感光元件格式 | 1/2" |
|---|---|
| 最大感光元件尺寸（直徑 mm） | 8.0 |
介面與I/O
| I/O 長度 (mm) | 376.8 |
|---|
機械
| 安裝 | C |
|---|---|
| 長度 (mm) | 181.3 |
| 重量 (kg) | 1.03 |
工程數據

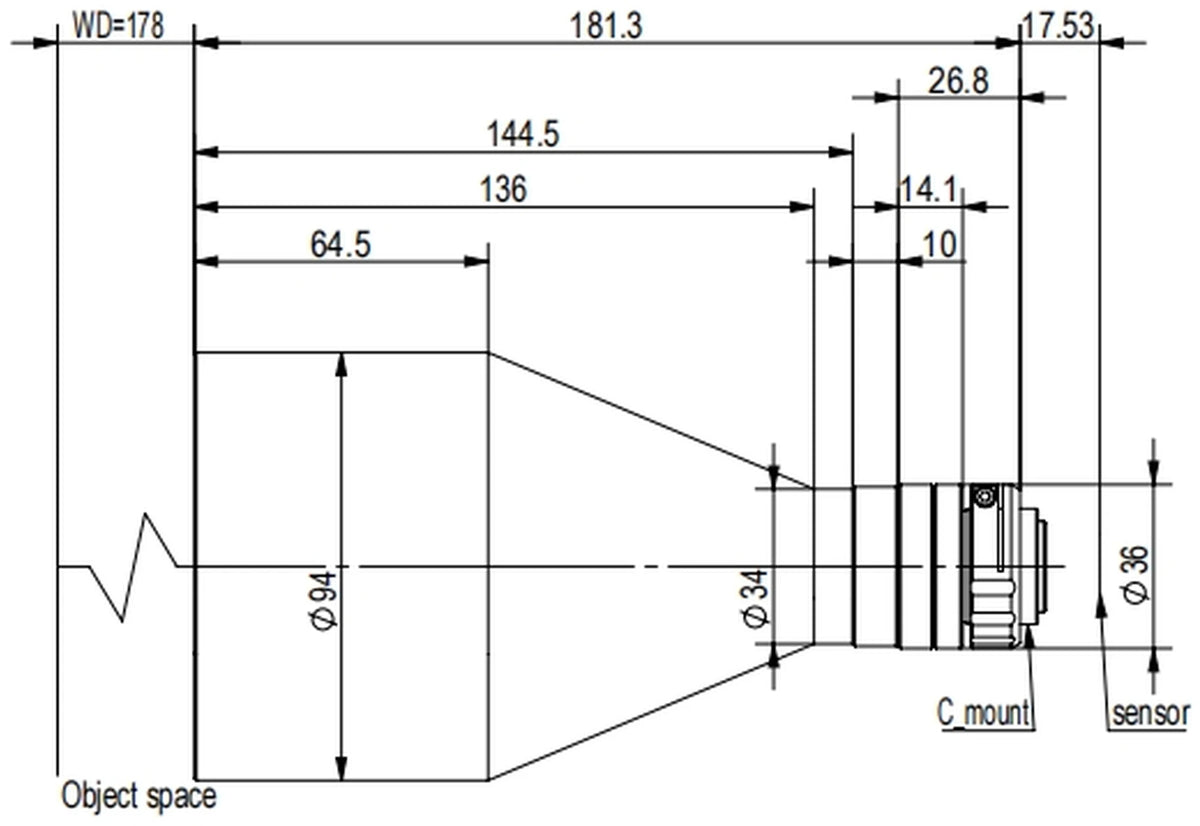

LS-TCL-2563 之視野
像圈Ø 8 mm可覆蓋感測器最大 1/2"
倍率0.111×
工作距離178 mm景深 ±6 mm
畸變0.1 %
Total length181.3 mm
MTF> 247 lp/mmat 30 % contrast
重量1.03 kg
| 感光元件格式 | 0.111× |
|---|---|
| 1/3"4.8 × 3.6 mm | 43.2 × 32.4 mm |
| 1/2.9"4.98 × 3.74 mm | 44.9 × 33.7 mm |
| 1/2.5"5.76 × 4.29 mm | 51.9 × 38.6 mm |
| 1/2"6.4 × 4.8 mm | 57.7 × 43.2 mm |
視野 = 感光元件尺寸 ÷ 倍率。感光元件尺寸為各光學格式的典型值。
相容零件
適用於此零件
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-

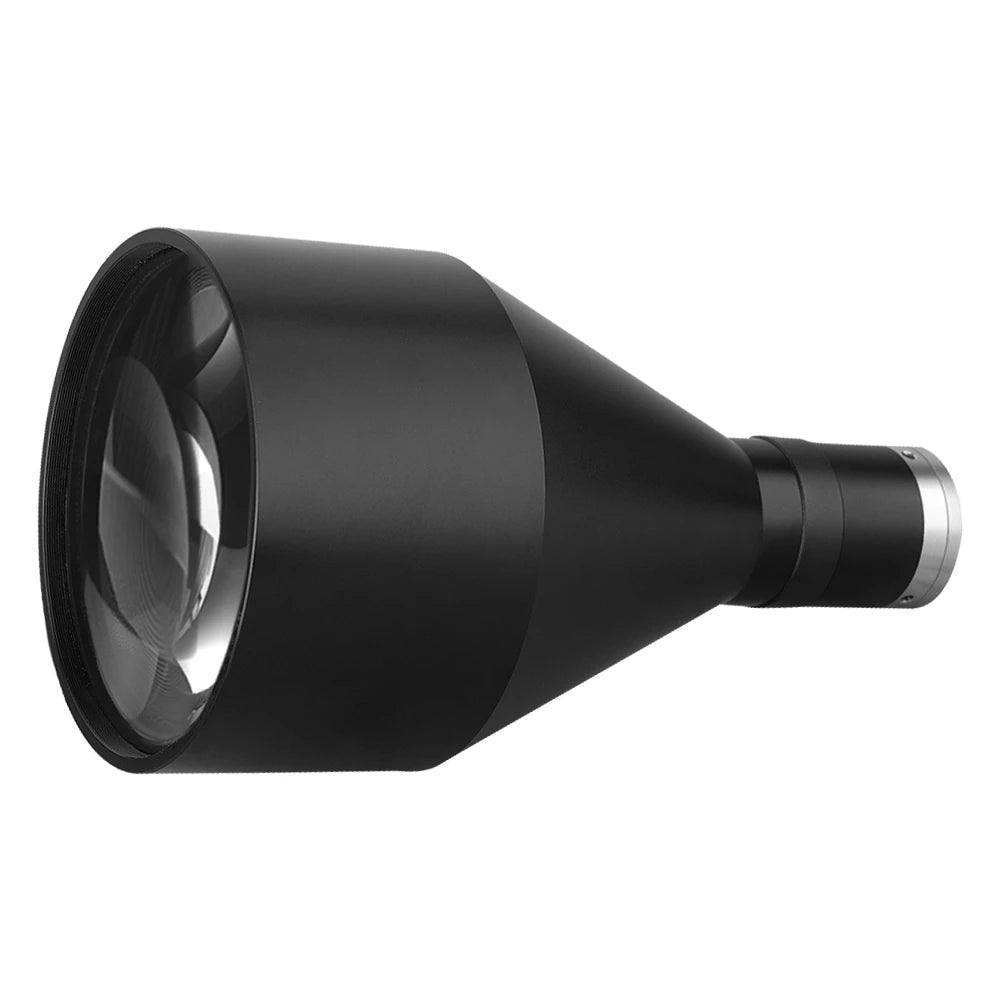

This part雙遠心鏡頭，適用於 1/2.3" 相機, B 版本, 0.111x, 工作距離 178 mm, 1/2", C-mount (LS-TCL-2563)
$2,459.00
-
適用此鏡頭的相機
GigE 板機器人 / 模組，1.3 MP，彩色（LS-BCM-0051）
$209.00
-
Lights for this lens
75 x 73 mm 同軸燈（LS-CXL-0168）
$340.00
Set total $3,008.00
Added to your quote list.
適用此鏡頭的相機
配備 5 mm C-CS 環形光源
Its 7.9 mm sensor diagonal uses 99 % of this lens's 8 mm image circle
GigE 板載相機 / 模組，1.3 MP，彩色/黑白（LS-BCM-0050）
LS-BCM-0050
- 解析度 1.3 MP
- 介面 GigE (GigE Vision, GenICam)
$209.00
2-3 週內出貨
Its 8 mm sensor diagonal uses 100 % of this lens's 8 mm image circle
GigE 面陣相機搭配 CMOS 感測器, 12 MP, 彩色/黑白, 1/2", 12 MP 解析度
LS-CMR-0418
- 解析度 4000 x 3000
- 感測器 CMOS
$559.00
2-3 週內出貨
Its 8 mm sensor diagonal uses 100 % of this lens's 8 mm image circle
Its 7.9 mm sensor diagonal uses 99 % of this lens's 8 mm image circle
Its 7.7 mm sensor diagonal uses 96 % of this lens's 8 mm image circle
Its 7.4 mm sensor diagonal uses 92 % of this lens's 8 mm image circle
轉接環
適用於 CS-mount 相機
Lights for this lens
應用案例
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-TCL-2694, the same type of part
金屬零件與加工
Turned shaft diameters with a 0.114x telecentric lens
Pick the magnification from the longest feature that must fit in one image, then check sampling on the smallest one.Field of view (derived)About 74.1 × 62.0 mm探索研究
Set up with the LS-TCL-2507, the same type of part
金屬零件與加工
使用遠心光學檢測橢圓形光圈
將鏡頭、準直光源和夾具視為一個校準測量系統。光源區域51.16 × 38.84 mm探索研究
Set up with the LS-TCL-2688, the same type of part
金屬零件與加工
匹配遠心光學的軸心輪廓
將鏡頭、準直光源和夾具視為一個校準測量系統。光源區域47.52 × 39.85 mm探索研究
購買前須知
Questions about the LS-TCL-2563
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which cameras does the LS-TCL-2563 cover?
Its image circle (about 8 mm) covers these fit-tested cameras: LS-BCM-0051 (1/2", 1.3 MP, CS-mount, with a 5 mm C-CS ring), LS-BCM-0050 (1/2"), LS-CMR-0418 (1/2", 12 MP) and LS-CMR-0262 (1/2.3", 10.6 MP).
What field of view does the LS-TCL-2563 give?
About 57.7 x 43.2 mm on a 1/2" sensor, at its 178 mm working distance (calculated: sensor size / 0.111x magnification).
Does the LS-TCL-2563 need an adapter for C-mount or CS-mount cameras?
Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.
What sensor size is the LS-TCL-2563 made for?
Printed: Sensor format: 1/2"; Max sensor size (dia. mm): 8.0.
Which light suits the LS-TCL-2563?
Collimated or coaxial lights whose printed beam covers its field of view: LS-CXL-0168, LS-CXL-0028, LS-CXL-0074 and LS-CXL-0048.
適用於 1/2.3" 相機的雙側遠心鏡頭 - B 型號 (LS-TCL-S76) 系列其他型號
查看所有11型號How this model compares
- Compared with LS-TCL-2561: working distance 178±2 mm here, 187±2 mm there; length 181.3 mm here, 137.3 mm there.
- Total length 181.3 mm: 3rd longest of the 11 telecentric lenses in the series.
- Object-to-image distance 376.8 mm; next down 341.8 mm (LS-TCL-2561), up 419.5 mm (LS-TCL-2564), of 11 object-to-image distances from 195.6 to 504.3 mm.
Swipe to see all columns
| 型號 | 長度 | 工作距離 | Field of view with 9J003 (6.44x4.62 sensor) (mm x mm) | 價格 | 庫存 | 連結 |
|---|---|---|---|---|---|---|
| LS-TCL-2557 | 121.1 mm | 111±2 mm | 29.1 x 20.9 mm | $1,629.00 | 2-3 週內出貨 | View |
| LS-TCL-2559 | 127.3 mm | 128±2 mm | 38.7 x 27.8 mm | $1,899.00 | 2-3 週內出貨 | View |
| LS-TCL-2561 | 137.3 mm | 187±2 mm | 51.5 x 36.9 mm | $2,269.00 | 2-3 週內出貨 | View |
| LS-TCL-2560 | 148.8 mm | 138±2 mm | 45.0 x 32.3 mm | $2,089.00 | 2-3 週內出貨 | View |
| LS-TCL-2562 | 155.4 mm | 159±2 mm | 51.9 x 37.2 mm | $2,279.00 | 2-3 週內出貨 | View |
| LS-TCL-2564 | 172 mm | 230±2 mm | 64.4 x 46.2 mm | $2,649.00 | 2-3 週內出貨 | View |
| LS-TCL-2563This model | 181.3 mm | 178±2 mm | 58.0 x 41.6 mm | $2,459.00 | 2-3 週內出貨 | |
| LS-TCL-2565 | 206.3 mm | 208±3 mm | 71.5 x 51.3 mm | $2,879.00 | 2-3 週內出貨 | View |
| LS-TCL-2566 | 248.8 mm | 238±3 mm | 80.5 x 57.7 mm | $3,139.00 | 2-3 週內出貨 | View |
