LS-TCL-2203 個尺寸 (mm)
  • LS-TCL-2203 個尺寸 (mm)
  • 0.7x, WD 108 mm, 1", C-mount 遠心鏡頭搭配同軸燈 (LS-TCL-2203)

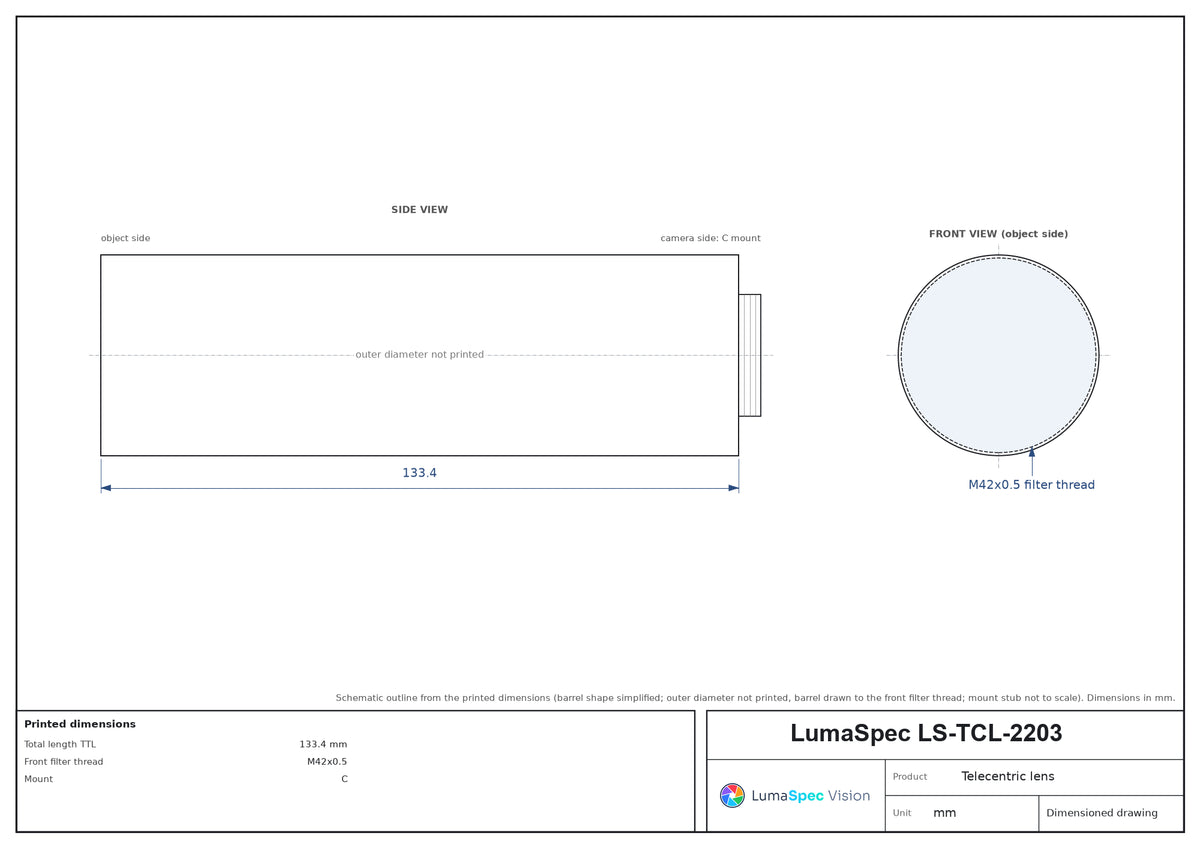

主圖：此型號之尺寸圖，依其標註尺寸繪製。照片顯示此系列之代表性鏡頭，並非此特定型號；尺寸與形狀因型號而異。

遠心鏡頭

0.7x, WD 108 mm, 1", C-mount 遠心鏡頭搭配同軸燈 (LS-TCL-2203)

型號 LS-TCL-2203

  • 倍率0.7x
  • 安裝C-mount
  • 感測器1"
  • 工作距離108 mm
  • 光圈7
$1,329.00

2-3 週內出貨

0.74 kg 運送重量

需要批量定價、淨價 30 條款或正式採購報價？

lumaspecvision.com/zh-hant/products/lumaspec-ls-tcl-2203

請求詢價

0.7x, WD 108 mm, 1", C-mount 遠心鏡頭搭配同軸燈 (LS-TCL-2203)LS-TCL-2203

透過電子郵件提供價格、交期和數量價格，通常在一個工作日內。

加入電話、交貨日期或備註（選填）

無需帳號。我們會在一個工作天內回覆。

LS-TCL-2203：倍率 0.7x，工作距離 108 mm，NA 0.04944，理論景深 ±0.6@F7。

0.7x, 工作距離 108 mm, 1", C-mount 遠心鏡頭。概覽：倍率 0.7x；工作距離 108 mm；最大感光元件尺寸 16.0 mm (1")；物方解析度 6.8 µm；像方 f/# 7。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
  • 全球追蹤運送追蹤 UPS 或 DHL
  • 至少 3 年保固涵蓋材料與工藝缺陷
  • 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
  • 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
  • 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay

90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy

規格

一般

型號LS-TCL-2203

光學

倍率 (x)0.7
工作距離 (mm)108
像方 F/#7
像方 MTF30 (lp/mm)>135
理論景深 (mm)±0.6@F7
物方解析度 (um)6.8
數值孔徑 NA0.04944
像方畸變 (% 最大值)<0.02
物方遠心度 (最大 deg)<0.02
總長度 TTL (mm)133.4
同軸照明是
前端濾光片螺紋M42x0.5

感測器與成像

感光元件格式1"
最大感光元件尺寸（直徑 mm）16.0

機械

安裝C
出貨重量（估計）0.74 kg

照片顯示本系列代表機型；請參閱本機型規格。

工程數據

LS-TCL-2203 之視野

像圈Ø 16 mm可覆蓋感測器最大 1"
倍率0.7×
工作距離108 mm景深 ±0.6 mm @ F7
畸變< 0.02 %
Field of view at 108 mm18.9 × 12.6 mmCalculated: 1" sensor ÷ 0.7× magnification
Total length133.4 mm
NA0.04944
濾光片螺紋M42 × 0.5
MTF> 135 lp/mmimage side, at 30 % contrast
依感測器格式的視野 (寬 × 高)
感光元件格式0.7×
1/1.8"7.07 × 5.3 mm10.1 × 7.6 mm
2/3"8.8 × 6.6 mm12.6 × 9.4 mm
1/1.2"11.25 × 7.03 mm16.1 × 10 mm
1"13.2 × 8.8 mm18.9 × 12.6 mm

視野 = 感光元件尺寸 ÷ 倍率。感光元件尺寸為各光學格式的典型值。

相容零件

適用於此零件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $2,027.00

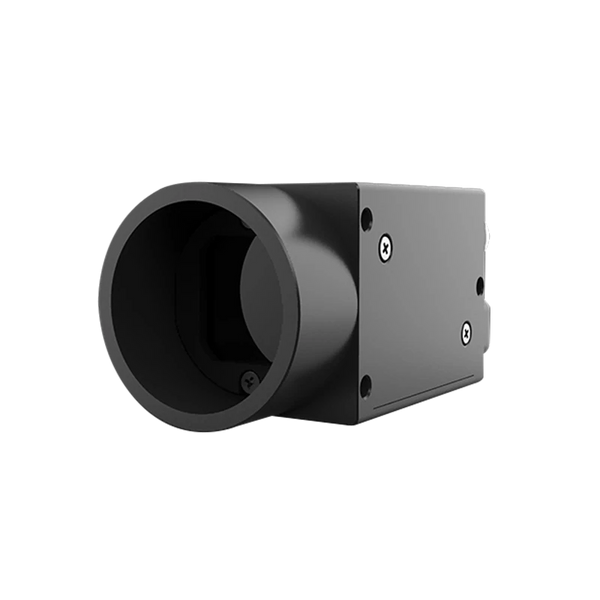

適用此鏡頭的相機

Its 15.8 mm sensor diagonal uses 99 % of this lens's 16 mm image circle

Its 16 mm sensor diagonal uses 100 % of this lens's 16 mm image circle

Its 15.9 mm sensor diagonal uses 99 % of this lens's 16 mm image circle

Its 15.9 mm sensor diagonal uses 99 % of this lens's 16 mm image circle

Its 16 mm sensor diagonal uses 100 % of this lens's 16 mm image circle

Its 15.8 mm sensor diagonal uses 99 % of this lens's 16 mm image circle

轉接環

適用於 CS-mount 相機

Lights for this lens

26 x 25 mm 同軸燈

LS-CXL-0123

  • 顏色 紅色, 綠色, 藍色, 白色
  • 紅色波長 620-630 nm

$139.00

2-3 週內出貨

購買前須知

Questions about the LS-TCL-2203

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which cameras does the LS-TCL-2203 cover?

Its image circle (about 16 mm) covers these fit-tested cameras: LS-CMR-0352 (1", 20.2 MP), LS-CMR-0079 (1", 8.8 MP), LS-CMR-0092 (1", 5.3 MP) and LS-CMR-0138 (1", 4.2 MP).

What field of view does the LS-TCL-2203 give?

About 18.9 x 12.6 mm on a 1" sensor, at its 108 mm working distance (calculated: sensor size / 0.7x magnification).

Does the LS-TCL-2203 need an adapter for C-mount or CS-mount cameras?

Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.

What sensor size is the LS-TCL-2203 made for?

Printed: Sensor format: 1"; Max sensor size (dia. mm): 16.0.

Which light suits the LS-TCL-2203?

Collimated or coaxial lights whose printed beam covers its field of view: LS-CXL-0142, LS-CXL-0123, LS-CXL-0210 and LS-CXL-0148.

5-20 MP 遠心鏡頭 (LS-TCL-S63) 系列其他型號

查看所有127型號

How this model compares

  • Same specifications as LS-TCL-2202 except the coaxial illumination (Yes here, No there) row.
  • Working distance 108 mm: joint 3rd shortest of the 34 1" C-mount telecentric lenses that list a working distance.
  • Compared with LS-TCL-2213: working distance 108 mm here, 110 mm there; total length 133.4 mm here, 129.8 mm there.
  • Total length 133.4 mm: 20 of the 28 1" C-mount telecentric lenses that list a total length are longer, 6 shorter (median 205.7 mm).
型號倍率感測器工作距離物側解析度Coaxial illumination價格庫存連結
LS-TCL-21950.5x1"128 mm10.7 µmNo$1,539.00 2-3 週內出貨 View
LS-TCL-22490.5x1.1"220 mm9.4 µmYes$1,629.00 2-3 週內出貨 View
LS-TCL-22130.66x1"110 mm7.1 µmNo$1,359.00 2-3 週內出貨 View
LS-TCL-22140.66x1"110 mm7.1 µmYes$1,359.00 2-3 週內出貨 View
LS-TCL-22020.7x1"108 mm6.8 µmNo$1,329.00 2-3 週內出貨 View
LS-TCL-2203This model0.7x1"108 mm6.8 µmYes$1,329.00 2-3 週內出貨
LS-TCL-22040.8x1"115 mm7.1 µmNo$1,269.00 2-3 週內出貨 View
LS-TCL-22050.8x1"115 mm7.12616822429907 µmNo$1,269.00 2-3 週內出貨 View
LS-TCL-22413.5x1.1"108 mm4.5 µmYes$1,259.00 2-3 週內出貨 View
