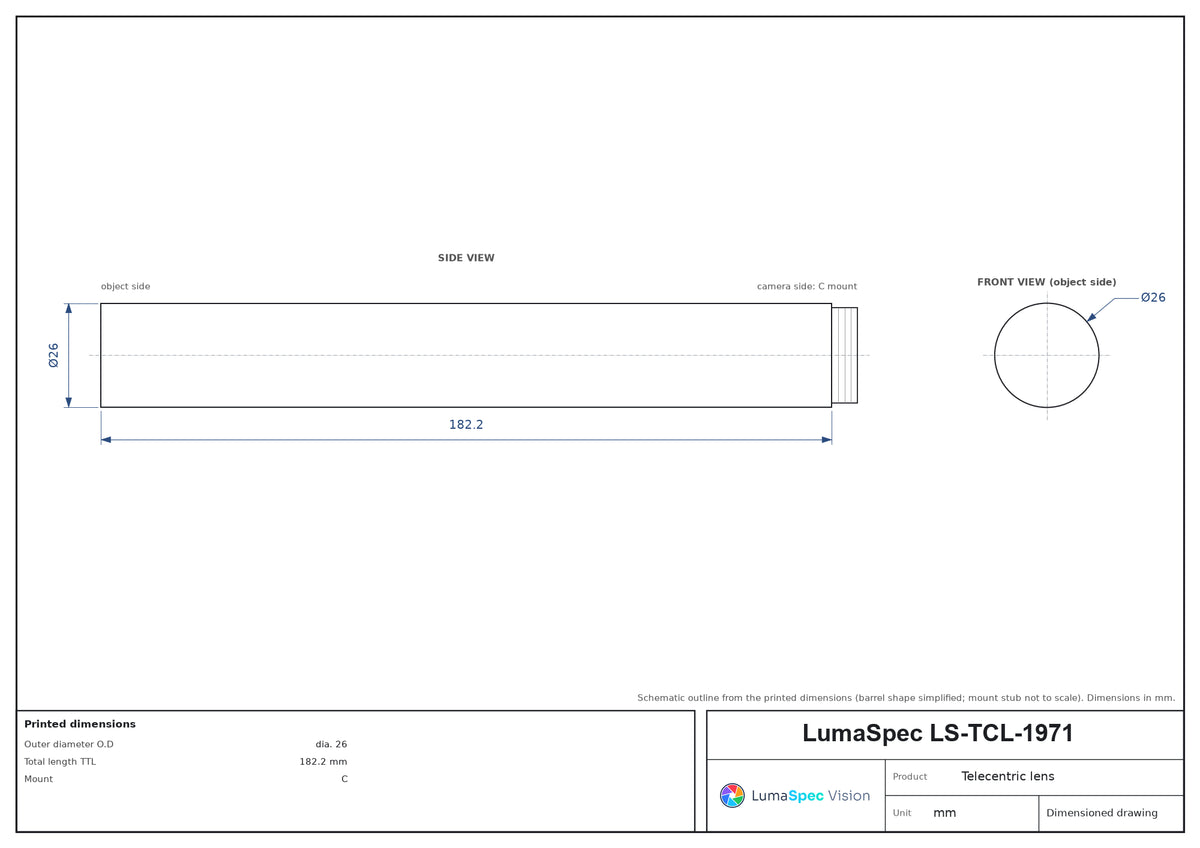

主圖：此型號之尺寸圖，依其標註尺寸繪製。照片顯示此系列之代表性鏡頭，並非此特定型號；尺寸與形狀因型號而異。

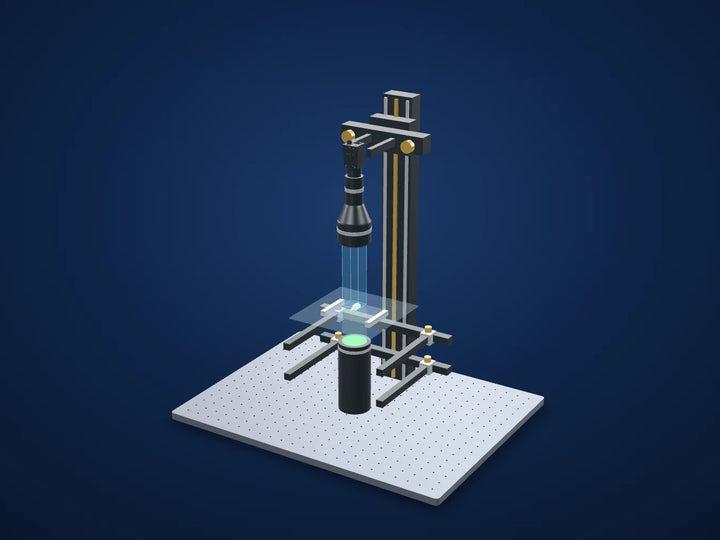

遠心鏡頭
1x，工作距離 410 mm，2/3"，C-mount 遠心鏡頭，長度 182.2 mm (LS-TCL-1971)
型號 LS-TCL-1971
- 倍率1.0x
- 安裝C-mount
- 感測器2/3"
- 工作距離410 mm
- 光圈17.9
2-3 週內出貨
0.59 kg 運送重量
需要批量定價、淨價 30 條款或正式採購報價？
lumaspecvision.com/zh-hant/products/lumaspec-ls-tcl-1971
LS-TCL-1971：倍率 1.0x，工作距離 410 mm，NA 0.0273，理論景深 1.43 mm，總長度 TTL 182.2 mm。
1x, 工作距離 410 mm, 2/3", C-mount 遠心鏡頭。概覽：倍率 1.0x；工作距離 410 mm；最大感光元件尺寸 11.0 mm (2/3")；物方解析度 12.3 µm；像方 f/# 17.9。
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
- 全球追蹤運送追蹤 UPS 或 DHL
- 至少 3 年保固涵蓋材料與工藝缺陷
- 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
- 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
- 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay
90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy
規格
一般
| 型號 | LS-TCL-1971 |
|---|
光學
| 倍率 (x) | 1.0 |
|---|---|
| 工作距離 (mm) | 410 |
| 像方 F/# | 17.9 |
| 物方遠心度 (最大 deg) | <0.1 |
| 像方畸變 (% 最大值) | <0.1 |
| 數值孔徑 NA | 0.0273 |
| 物方解析度 (um) | 12.3 |
| 理論景深 (mm) | 1.43 |
| 像方 MTF30 (lp/mm) | 40 |
| 總長度 TTL (mm) | 182.2 |
| 前端濾光片螺紋 | 移除前鏡頭固定環後為 M25x0.5 |
感測器與成像
| 感光元件格式 | 2/3" |
|---|---|
| 最大感光元件尺寸（直徑 mm） | 11.0 |
機械
| 安裝 | C |
|---|---|
| 外徑 O.D (mm) | dia. 26 |
| 出貨重量（估計） | 0.59 kg |
照片顯示本系列代表機型；請參閱本機型規格。
工程數據
LS-TCL-1971 之視野
| 感光元件格式 | 1× |
|---|---|
| 1/2.5"5.76 × 4.29 mm | 5.8 × 4.3 mm |
| 1/2"6.4 × 4.8 mm | 6.4 × 4.8 mm |
| 1/1.8"7.07 × 5.3 mm | 7.1 × 5.3 mm |
| 2/3"8.8 × 6.6 mm | 8.8 × 6.6 mm |
視野 = 感光元件尺寸 ÷ 倍率。感光元件尺寸為各光學格式的典型值。
相容零件
適用於此零件
