LS-TCL-1765 個尺寸 (mm)
  • LS-TCL-1765 個尺寸 (mm)
  • 0.122x, WD 85 mm, 1/2.5", C-mount 遠心鏡頭 (LS-TCL-1765)

主圖：此型號之尺寸圖，依其標註尺寸繪製。照片顯示此系列之代表性鏡頭，並非此特定型號；尺寸與形狀因型號而異。

遠心鏡頭

0.122x, WD 85 mm, 1/2.5", C-mount 遠心鏡頭 (LS-TCL-1765)

型號 LS-TCL-1765

  • 倍率0.122x
  • 安裝C-mount
  • 感測器1/2.5"
  • 工作距離85±1 mm
  • 光圈4.2
  • 視野Ø 59 mm
$2,699.00

2-3 週內出貨

1.36 kg 運送重量

需要批量定價、淨價 30 條款或正式採購報價？

lumaspecvision.com/zh-hant/products/lumaspec-ls-tcl-1765

請求詢價

0.122x, WD 85 mm, 1/2.5", C-mount 遠心鏡頭 (LS-TCL-1765)LS-TCL-1765

透過電子郵件提供價格、交期和數量價格，通常在一個工作日內。

加入電話、交貨日期或備註（選填）

無需帳號。我們會在一個工作天內回覆。

LS-TCL-1765：倍率 0.122x，工作距離 85±1 mm，理論景深 ±21.5@F8，感測器格式 1/2.5"。

0.122x, WD 85 mm, 1/2.5", C-mount 遠心鏡頭。一目了然: 倍率 0.122x; 工作距離 85±1 mm; 最大感光元件尺寸 7.2 mm (1/2.5"); 物體視野 59 mm; 鏡像 f/# 4.2。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
  • 全球追蹤運送追蹤 UPS 或 DHL
  • 至少 3 年保固涵蓋材料與工藝缺陷
  • 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
  • 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
  • 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay

90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy

規格

一般

型號LS-TCL-1765

光學

物件視野 (直徑 mm)59
倍率 (x)0.122
工作距離 (mm)85±1
像方 F/#4.2
像方 MTF30 (lp/mm)>200
理論景深 (mm)±21.5@F8
像方畸變 (% 最大值)<0.1
物方遠心度 (最大 deg)<0.1
物距 I/O (mm)233±1
總長度 TTL (mm)130.1
前端濾光片螺紋M80 P0.5

感測器與成像

感光元件格式1/2.5"
最大感光元件尺寸（直徑 mm）7.2

機械

安裝C
淨重 (kg)0.9
出貨重量（估計）1.36 kg

照片顯示本系列代表機型；請參閱本機型規格。

工程數據

LS-TCL-1765 之視野

像圈Ø 7.2 mm可覆蓋感測器最大 1/2.5"
倍率0.122×
工作距離85 mm景深 ±21.5 mm @ F8
畸變< 0.1 %
Total length130.1 mm
濾光片螺紋M80 × 0.5
MTF> 200 lp/mmimage side, at 30 % contrast
重量0.9 kg
依感測器格式的視野 (寬 × 高)
感光元件格式0.122×
1/3"4.8 × 3.6 mm39.3 × 29.5 mm
1/2.9"4.98 × 3.74 mm40.8 × 30.7 mm
1/2.5"5.76 × 4.29 mm47.2 × 35.2 mm

視野 = 感光元件尺寸 ÷ 倍率。感光元件尺寸為各光學格式的典型值。

相容零件

適用於此零件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $3,267.00

適用此鏡頭的相機

Its 7.2 mm sensor diagonal uses 100 % of this lens's 7.2 mm image circle

Its 7.1 mm sensor diagonal uses 99 % of this lens's 7.2 mm image circle

Its 7.2 mm sensor diagonal uses 100 % of this lens's 7.2 mm image circle

Its 6.6 mm sensor diagonal uses 92 % of this lens's 7.2 mm image circle

Its 7.1 mm sensor diagonal uses 99 % of this lens's 7.2 mm image circle

Its 7.1 mm sensor diagonal uses 99 % of this lens's 7.2 mm image circle

轉接環

適用於 CS-mount 相機

Lights for this lens

120 x 65 mm 同軸燈

LS-CXL-0134

  • 顏色 紅色, 綠色, 藍色, 白色
  • 紅色波長 620-630 nm

$589.00

2-3 週內出貨

購買前須知

Questions about the LS-TCL-1765

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which cameras does the LS-TCL-1765 cover?

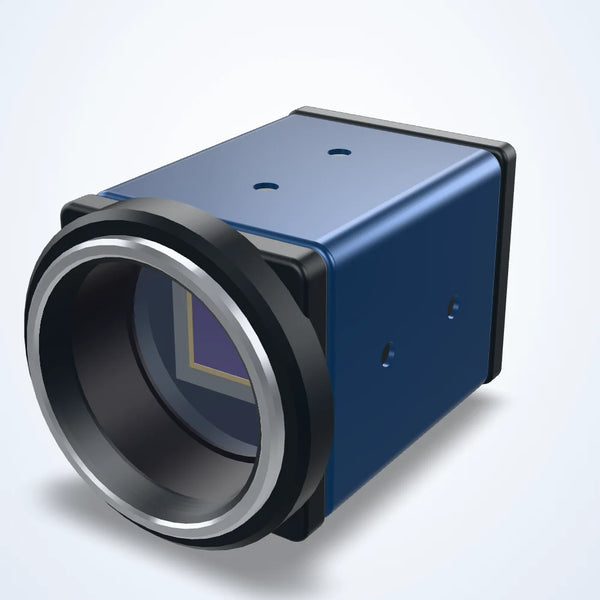

Its image circle (about 7.2 mm) covers these fit-tested cameras: LS-CMR-0425 (1/2.5", 0.4 MP), LS-CMR-0409 (1/2.5", 5 MP), LS-CMR-0026 (1/2.2", 2.3 MP) and LS-CMR-0395 (1/2.7", 1.3 MP).

What field of view does the LS-TCL-1765 give?

About 47.2 x 35.2 mm on a 1/2.5" sensor, at its 85 mm working distance (calculated: sensor size / 0.122x magnification).

Does the LS-TCL-1765 need an adapter for C-mount or CS-mount cameras?

Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.

What sensor size is the LS-TCL-1765 made for?

Printed: Sensor format: 1/2.5"; Max sensor size (dia. mm): 7.2.

Which light suits the LS-TCL-1765?

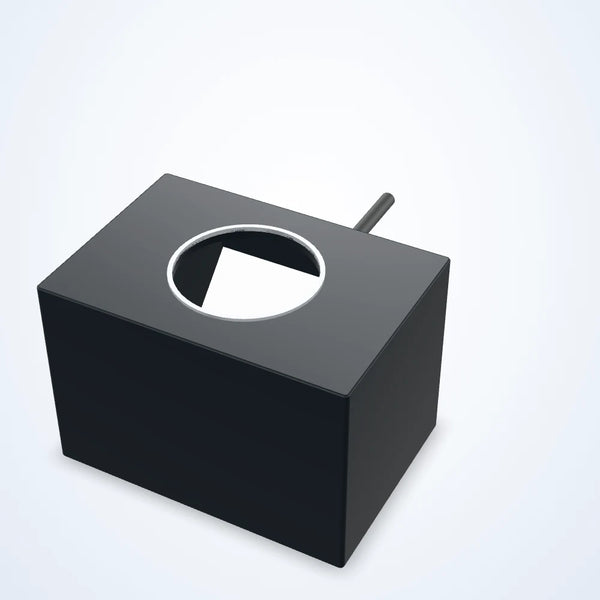

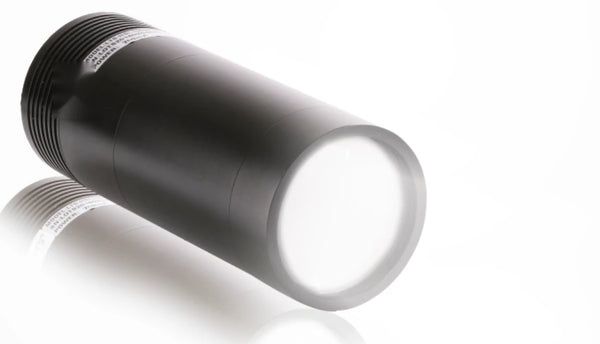

Collimated or coaxial lights whose printed beam covers its field of view: LS-CXL-0027, LS-CXL-0179, LS-CXL-0134 and LS-CLM-0054.

雙側遠心鏡頭 (LS-TCL-S59) 系列其他型號

查看所有508型號

How this model compares

  • Same 0.122x magnification as LS-TCL-1427 (373 mm long); this one: 130.1 mm long.
  • Compared with LS-TCL-1519: total length 130.1 mm here, 133.8 mm there; sensor format 1/2.5" here, 1/2" there.
  • Total length 130.1 mm: 18 of the 30 1/2.5" C-mount telecentric lenses that list a total length are longer, 11 shorter (median 162.5 mm).
型號倍率感測器工作距離價格庫存連結
LS-TCL-17700.08x1/2.5"208±3 mm$3,069.00 2-3 週內出貨 View
LS-TCL-17670.113x1/2.5"158±3 mm$2,699.00 2-3 週內出貨 View
LS-TCL-1765This model0.122x1/2.5"85±1 mm$2,699.00 2-3 週內出貨
LS-TCL-17640.129x1/2.5"138±3 mm$2,599.00 2-3 週內出貨 View
LS-TCL-15190.136x1/2"85±1 mm$2,159.00 2-3 週內出貨 View
LS-TCL-15730.153x1/1.8"85±1 mm$2,469.00 2-3 週內出貨 View
LS-TCL-17610.164x1/2.5"82±1 mm$2,139.00 2-3 週內出貨 View
LS-TCL-17600.171x1/2.5"118±3 mm$2,139.00 2-3 週內出貨 View
LS-TCL-18830.193x2/3"85±1 mm$2,159.00 2-3 週內出貨 View
