遠心鏡頭
2x, WD 39 mm, C-mount 遠心鏡頭 (LS-TCL-1395)
型號 LS-TCL-1395
- 倍率2x
- 安裝C-mount
- 感測器4/3"
- 工作距離39 mm
- 光圈10
- 視野Ø 11.5 mm
從工廠 2021-2022 目錄：我們在您下訂單後透過電子郵件確認可用性和交期，如果產品已停產則取消並全額退款。
2-3 週內出貨
0.59 kg 運送重量
需要批量定價、淨價 30 條款或正式採購報價？
lumaspecvision.com/zh-hant/products/lumaspec-ls-tcl-1395
LS-TCL-1395：倍率 2x，工作距離 39 mm，最大感光元件尺寸 22 mm，像側 F/# 10。
2x，工作距離 39 mm，C-mount 遠心鏡頭。概覽：倍率 2x；工作距離 39 mm；最大感光元件尺寸 22 mm；物體視野 11.5 mm；影像側 f/# 10。
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
- 全球追蹤運送追蹤 UPS 或 DHL
- 至少 3 年保固涵蓋材料與工藝缺陷
- 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
- 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
- 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay
90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy
規格
一般
| 型號 | LS-TCL-1395 |
|---|
光學
| 遠心型 | 雙遠心 |
|---|---|
| 倍率 (x) | 2 |
| 工作距離 (mm) | 39 |
| 物件視野 (直徑 mm) | 11.5 |
| 像方 F/# | 10 |
感測器與成像
| 最大感光元件尺寸（直徑 mm） | 22 |
|---|
機械
| 安裝 | C |
|---|---|
| 出貨重量（估計） | 0.59 kg |
照片顯示本系列代表機型；請參閱本機型規格。
工程數據
LS-TCL-1395 之視野
| 感光元件格式 | 2× |
|---|---|
| 1/1.2"11.25 × 7.03 mm | 5.6 × 3.5 mm |
| 1"13.2 × 8.8 mm | 6.6 × 4.4 mm |
| 1.1"14.13 × 10.35 mm | 7.1 × 5.2 mm |
| 4/3"17.3 × 13 mm | 8.7 × 6.5 mm |
視野 = 感光元件尺寸 ÷ 倍率。感光元件尺寸為各光學格式的典型值。
相容零件
適用於此零件
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This part2x, WD 39 mm, C-mount 遠心鏡頭 (LS-TCL-1395)
$1,539.00
-
適用此鏡頭的相機

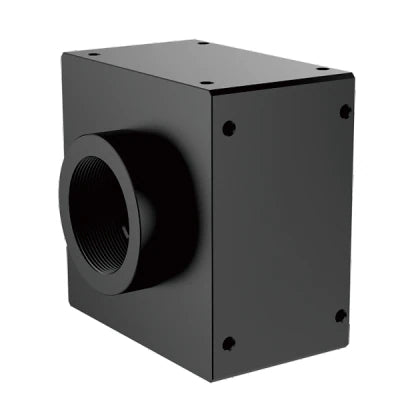

GigE 面陣相機，5.2 MP，單色，C 接口（LS-CMR-0355）
$149.00
-
Lights for this lens
12 mm 直徑準直點光源 (LS-CLM-0049)
$349.00
Set total $2,037.00
Added to your quote list.
適用此鏡頭的相機
Its 21.7 mm sensor diagonal uses 99 % of this lens's 22 mm image circle
Its 20.4 mm sensor diagonal uses 93 % of this lens's 22 mm image circle
Its 19.3 mm sensor diagonal uses 88 % of this lens's 22 mm image circle

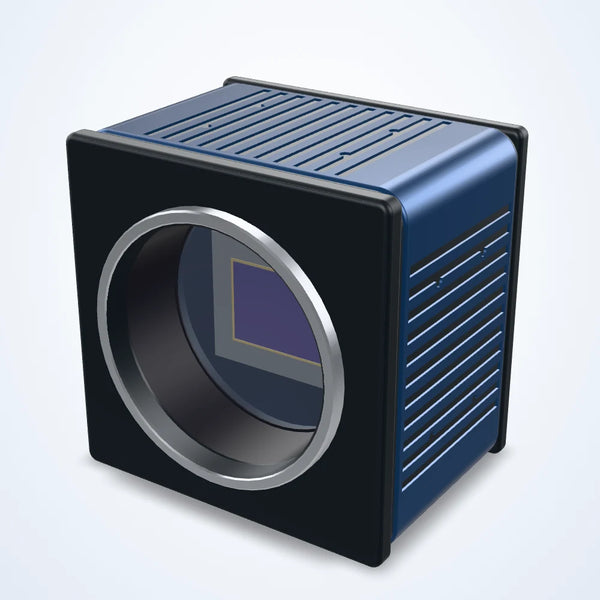

24.5 MP 10GigE 面陣相機, IMX540, 1.2" 全域快門, 35.1 fps, C-mount
LS-CMR-0105
- 解析度 5320 × 4600
- 感測器 1.2”
$4,600.00
3-4 週內出貨
Its 19.3 mm sensor diagonal uses 88 % of this lens's 22 mm image circle

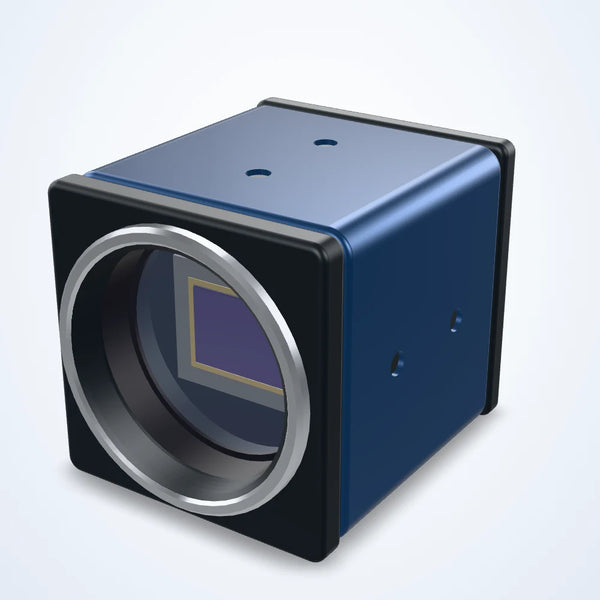

4.2 MP NIR USB3 面陣相機，Gsense2020E，1.2" 捲簾快門，45 fps
LS-CMR-0099
- 解析度 2048 × 2048
- 感測器 1.2"
$1,800.00
3-4 週內出貨
Its 18.8 mm sensor diagonal uses 85 % of this lens's 22 mm image circle
Its 18.1 mm sensor diagonal uses 82 % of this lens's 22 mm image circle
轉接環
Lights for this lens
應用案例
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-TCL-2678, the same type of part
電子設備
Connector pin height in side view with a 0.438x telecentric lens
Measure pin height from the side, where telecentric optics keep near and far pins at one scale.Field of view (derived)About 19.3 × 16.1 mm探索研究
購買前須知
Questions about the LS-TCL-1395
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which cameras does the LS-TCL-1395 cover?
Its image circle (about 22 mm) covers these fit-tested cameras: LS-CMR-0355 (4/3", 5.2 MP), LS-CMR-0370 (4/3", 16.9 MP), LS-CMR-0064 (1.2", 24.6 MP) and LS-CMR-0105 (1.2", 24.5 MP).
What field of view does the LS-TCL-1395 give?
About 8.7 x 6.5 mm on a 4/3" sensor, at its 39 mm working distance (calculated: sensor size / 2x magnification).
Does the LS-TCL-1395 need an adapter for C-mount or CS-mount cameras?
Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.
What sensor size is the LS-TCL-1395 made for?
Printed: Max sensor size (dia. mm): 22.
Which light suits the LS-TCL-1395?
Collimated or coaxial lights whose printed beam covers its field of view: LS-CLM-0049, LS-CXL-0057, LS-CXL-0121 and LS-CXL-0058.
大靶面遠心鏡頭，最大至 24K，部分具備手動光圈 (LS-TCL-S57) 系列其他型號
查看所有80型號- Joint shortest 工作距離 of the 75 models that list it (39 至 520 mm)
How this model compares
- Same specifications as LS-TCL-1396 except the coaxial light port (No here, Yes there) row.
- Working distance 39 mm: joint shortest of the 75 telecentric lenses that list a working distance, with 2 others.
- Same 2x magnification as LS-TCL-1344 (63 mm WD) and LS-TCL-1345 (63 mm WD); this one: 39 mm WD.
- Compared with LS-TCL-1358: image-side F-number 10 here, 9.5 there.
