線陣鏡頭
5.5K 線陣鏡頭、50 mm、0.0946x、F2.8、M42、BFL 12 mm (LS-LSL-0091)
型號 LS-LSL-0091
- 焦距50 mm
- 倍率0.0946x
- 安裝M42
- 感測器APS-C
- 工作距離600-700 mm
- 光圈F2.8
3-4 週內出貨
1.0 kg 運送重量
需要批量定價、淨價 30 條款或正式採購報價？
lumaspecvision.com/zh-hant/products/lumaspec-ls-lsl-0091
LS-LSL-0091：焦距 50 mm，感測器格式 Φ30，光圈 F2.8，工作距離 600-700 mm，法兰後距 12 mm。
5.5K 線陣鏡頭，50 mm，適用於網路與傳送帶上的線陣相機。焦距 50 mm；倍率 0.0946x；工作距離 600 mm；光圈 F2.8；M42 安裝；像圈 30 mm。
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
- 全球追蹤運送追蹤 UPS 或 DHL
- 至少 3 年保固涵蓋材料與工藝缺陷
- 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
- 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
- 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay
90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy
規格
一般
| 型號 | LS-LSL-0091 |
|---|---|
| 最短物距 | 574 mm |
光學
| 焦距 | 50 mm |
|---|---|
| 倍率 | 0.0946x |
| 光圈 | F2.8 |
| 畸變 | -0.61% |
| 工作距離 | 600-700 mm |
感測器與成像
| 解析度 | 5.5K5μ |
|---|---|
| 感光元件格式 | Ø30 |
機械
| 法蘭後長度 | 12 mm |
|---|---|
| 安裝 | M42-mount |
| 出貨重量 | 1.00 kg |
工程數據
LS-LSL-0091 之視野
| 感光元件格式 | 0.0946× |
|---|---|
| 2k × 7 µm14.34 mm | 152 mm |
| 4k × 7 µm28.67 mm | 303 mm |
視野 = 感光元件尺寸 ÷ 倍率。感光元件尺寸為各光學格式的典型值。
相容零件
適用於此零件
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This part5.5K 線陣鏡頭、50 mm、0.0946x、F2.8、M42、BFL 12 mm (LS-LSL-0091)
$110.00
-
適用此鏡頭的相機

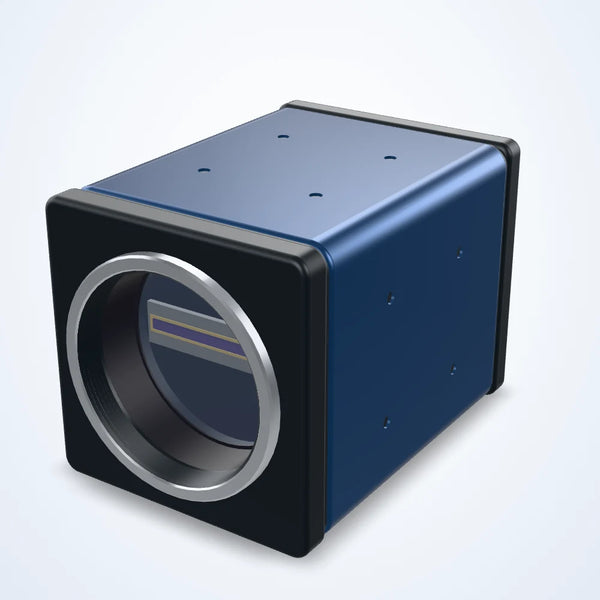

2K GigE 線陣相機，14 μm，49 kHz，M42，單色（LS-LCM-0013）
$975.00
Set total $1,085.00
Added to your quote list.
適用此鏡頭的相機
Its 28.7 mm sensor diagonal uses 96 % of this lens's 30 mm image circle
Its 28.7 mm sensor diagonal uses 96 % of this lens's 30 mm image circle
Its 28.7 mm sensor diagonal uses 96 % of this lens's 30 mm image circle
Its 28.7 mm sensor diagonal uses 96 % of this lens's 30 mm image circle
Its 28.7 mm sensor diagonal uses 96 % of this lens's 30 mm image circle
Its 28.7 mm sensor diagonal uses 96 % of this lens's 30 mm image circle
購買前須知
Questions about the LS-LSL-0091
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which cameras does the LS-LSL-0091 cover?
Its image circle (about 30 mm) covers these fit-tested cameras: LS-LCM-0013, LS-LCM-0088, LS-LCM-0078 (APS-C) and LS-LCM-0029 (APS-C).
What field of view does the LS-LSL-0091 give?
About 303 mm wide on a 4k × 7 µm line sensor (calculated: sensor size / 0.0946x magnification).
What sensor size is the LS-LSL-0091 made for?
Printed: Sensor format: Ø30.
5.5K 線陣鏡頭 (LS-LSL-S01) 系列其他型號
查看所有61型號How this model compares
- Same 50 mm focal length as LS-LSL-0077 (F-mount) and LS-LSL-0078 (M42× 1(T)-mount); this one: M42-mount.
- Focal length 50 mm; next down 45 mm (LS-LSL-0087), up 54.3 mm (LS-LSL-0094), of 18 focal lengths from 20 to 145 mm.
- Compared with LS-LSL-0090: flange back length 12 mm here, 5.9 mm there.
Swipe to see all columns
| 型號 | 焦距 | 倍率 | 安裝 | 法蘭後長度 | 價格 | 庫存 | 連結 |
|---|---|---|---|---|---|---|---|
| LS-LSL-0086 | 40 mm | 0.1x | V-mount | 40.1 mm | $585.00 | 3-4 週內出貨 | View |
| LS-LSL-0085 | 40 mm | 0.05x | M72 | 12 mm | $640.00 | 3-4 週內出貨 | View |
| LS-LSL-0087 | 45 mm | 0.2x | M72 | 12 mm | $1,050.00 | 3-4 週內出貨 | View |
| LS-LSL-0089 | 50 mm | 0.094x | M42 | 12 mm | $110.00 | 3-4 週內出貨 | View |
| LS-LSL-0091This model | 50 mm | 0.0946x | M42 | 12 mm | $110.00 | 3-4 週內出貨 | |
| LS-LSL-0090 | 50 mm | 0.0946x | M42 | 5.9 mm | $110.00 | 3-4 週內出貨 | View |
| LS-LSL-0092 | 54.3 mm | 0.095x | M3 | $110.00 | 3-4 週內出貨 | View | |
| LS-LSL-0093 | 54.3 mm | 0.095x | M42 | $110.00 | 3-4 週內出貨 | View | |
| LS-LSL-0080 | 60 mm | 0.04x | V38 | $110.00 | 3-4 週內出貨 | View |
