線掃描燈, 1300 mm, 白色 (LS-LSC-0630)
  • 線掃描燈, 1300 mm, 白色 (LS-LSC-0630)
  • LS-LSC-0630 個尺寸 (mm)

線陣光源

線掃描燈, 1300 mm, 白色 (LS-LSC-0630)

型號 LS-LSC-0630

  • 顏色白色
  • 發光面積1300 mm × 17 mm
  • 尺寸1370 mm × 58 mm × 90.5 mm
  • 電壓48 VDC
  • 電源546 W
$3,809.00
List price

Sold by quote: request a quote and we confirm the price, lead time and volume pricing.

2-3 週內出貨

10.25 kg 運送重量

將零件加入詢價清單；我們將回報價格、交期和批量價格。

lumaspecvision.com/zh-hant/products/lumaspec-ls-lsc-0630

請求詢價

線掃描燈, 1300 mm, 白色 (LS-LSC-0630)LS-LSC-0630

透過電子郵件提供價格、交期和數量價格，通常在一個工作日內。

加入電話、交貨日期或備註（選填）

無需帳號。我們會在一個工作天內回覆。

LS-LSC-0630：尺寸 1370 mm x 58 mm x 90.5 mm，發光面積尺寸 1300 mm x 17 mm，功率 546 W。

線掃光源, 1300 mm, 白色。採用高功率 LED 燈珠結合高聚焦結構，使光源表面的照度高達 1000K lux。外殼配有冷卻風扇以延長光源使用壽命。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
  • 全球追蹤運送追蹤 UPS 或 DHL
  • 至少 3 年保固涵蓋材料與工藝缺陷
  • 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
  • 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
  • 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay

90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy

規格

一般

型號LS-LSC-0630

光學

最佳工作距離10 mm 至 200 mm

介面與I/O

連接器類型雙通道 19M-8H
電纜長度附加選項

光源

顏色白色
色溫6000K 至 7000K
中心照度/輻照度≥ 600K lux @ 100 mm
發光面積尺寸1300 mm × 17 mm
LED 燈列1

環境與合規性

溫度工作溫度：0 °C 至 40 °C（32 °F 至 104 °F）；儲存溫度：–20 °C 至 60 °C（–4 °F 至 140 °F）
濕度20% RH 至 90% RH (無冷凝)

電氣

電源546 W
輸入電壓48 VDC

機械

尺寸1370 mm × 58 mm × 90.5 mm
重量7.25 kg
出貨重量（估計）10.25 kg

工程數據

安裝並固定 LS-LSC-0630

48 V 下的電流11375 mACalculated: printed power ÷ supply voltage
所需控制器通道48 V constant voltage, at least 546 W

Mounting and installation

安裝See the dimension drawing
連接器Dual-channel 19M-8H

相容零件

適用於此零件

Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $4,838.00

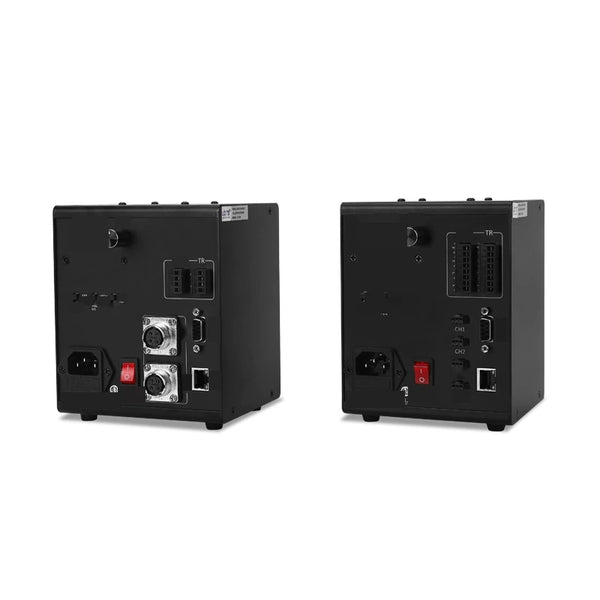

此光源的照明控制器

This 546 W light uses 68 % of one 800 W channel

This 546 W light uses 55 % of one 1000 W channel

This 546 W light uses 55 % of one 1000 W channel

This 546 W light uses 91 % of one 600 W channel

This 546 W light uses 91 % of one 600 W channel

Same 48 V supply

購買前須知

Questions about the LS-LSC-0630

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which controller drives the LS-LSC-0630?

Fit-tested for this 546 W light: LS-CTL-0256 (800 W per channel, about 32 % headroom), LS-CTL-0079 (1000 W per channel, about 45 % headroom), LS-CTL-0257 (1000 W per channel, about 45 % headroom) and LS-CTL-0268 (600 W per channel, about 9 % headroom).

What supply voltage and power does the LS-LSC-0630 need?

Input voltage: 48 VDC; Power: 546 W. That is about 11.38 A at 546 W on 48 V (calculated).

What lit area and working distance does the LS-LSC-0630 give?

Printed: Best working distance: 10 mm to 200 mm.

What temperature range is the LS-LSC-0630 rated for?

Printed: Temperature: Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F).

高亮度線形燈 (LS-LSC-S58) 系列其他型號

查看所有15型號

How this model compares

  • Compared with LS-LSC-0629: power 546 W here, 504 W there.
型號電源發光面積尺寸價格庫存連結
LS-LSC-0624294 W700 mm × 17 mm750 mm × 58 mm × 90.5 mm$2,139.00 2-3 週內出貨 View
LS-LSC-0625336 W800 mm × 17 mm850 mm × 58 mm × 90.5 mm$2,419.00 2-3 週內出貨 View
LS-LSC-0626378 W900 mm × 17 mm970 mm × 58 mm × 90.5 mm$2,699.00 詢價 2-3 週內出貨 View
LS-LSC-0627420 W1000 mm × 17 mm1070 mm × 58 mm × 90.5 mm$2,979.00 詢價 2-3 週內出貨 View
LS-LSC-0628462 W1100 mm × 17 mm1170 mm × 58 mm × 90.5 mm$3,249.00 詢價 2-3 週內出貨 View
LS-LSC-0629504 W1200 mm × 17 mm1270 mm × 58 mm × 90.5 mm$3,529.00 詢價 2-3 週內出貨 View
LS-LSC-0630This model546 W1300 mm × 17 mm1370 mm × 58 mm × 90.5 mm$3,809.00 詢價 2-3 週內出貨
LS-LSC-0631588 W1400 mm × 17 mm1470 mm × 58 mm × 90.5 mm$4,089.00 詢價 2-3 週內出貨 View
LS-LSC-0632630 W1500 mm × 17 mm1570 mm × 58 mm × 90.5 mm$4,359.00 詢價 2-3 週內出貨 View
