水冷線掃描光源，500 x 40 x 111.7 mm（LS-LSC-0198）
  • 水冷線掃描光源，500 x 40 x 111.7 mm（LS-LSC-0198）
  • LS-LSC-0198 個尺寸 (mm)

本系列代表照片

線陣光源

水冷線掃描光源，500 x 40 x 111.7 mm（LS-LSC-0198）

型號 LS-LSC-0198-R

  • 顏色紅色、藍色、綠色、白色
  • 發光面積484 x 24 mm
  • 尺寸L500xW40xH111.7(mm)
  • 電壓24 V
  • 電源360 W/432 W
$1,549.00

2-3 週內出貨

1.8 kg 運送重量

顏色

需要批量定價、淨價 30 條款或正式採購報價？

lumaspecvision.com/zh-hant/products/lumaspec-ls-lsc-0198

請求詢價

水冷線掃描光源，500 x 40 x 111.7 mm（LS-LSC-0198）LS-LSC-0198-R

透過電子郵件提供價格、交期和數量價格，通常在一個工作日內。

加入電話、交貨日期或備註（選填）

無需帳號。我們會在一個工作天內回覆。

採用水冷機制設計，實現超高亮度、無風扇且緊湊。亮度高達 2.5-5million Lx，適用於無風扇且安靜的環境。最適合無塵室使用。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
  • 全球追蹤運送追蹤 UPS 或 DHL
  • 至少 3 年保固涵蓋材料與工藝缺陷
  • 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
  • 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
  • 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay

90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy

規格

一般

型號LS-LSC-0198
散熱水冷
備註UV 與 IR 光源可根據需求客製化。

介面與I/O

電纜極性1: +, 2: -, 3: NC, 4: NC
電纜 (mm)3000 (圖面)

光源

LED 顏色R(紅色)/W(白色)
發光面 (mm)484 x 24

電氣

電壓24V
電源360W/432W
輸入電壓DC 24V (最大值)

機械

尺寸L500xW40xH111.7(mm)
安裝各側設有 M3 螺母槽，供安裝使用
出貨重量1.80 kg

工程數據

安裝並固定 LS-LSC-0198

供應24 V DC
24 V 下的電流18000 mACalculated: printed power ÷ supply voltage
所需控制器通道24 V constant voltage, at least 432 W

Mounting and installation

安裝T-slot / nut channel, Slots take M3 nuts
纜線3 m

相容零件

適用於此零件

Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $3,278.00

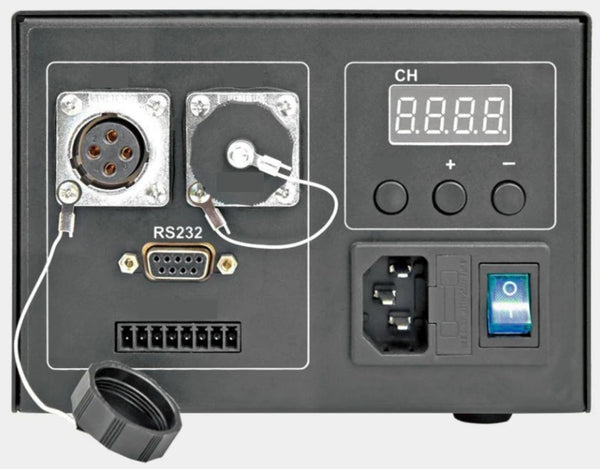

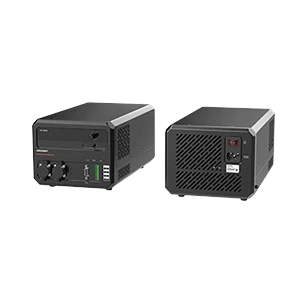

此光源的照明控制器

This 432 W light uses 58 % of one channel (about 750 W, from the rated output)

This 432 W light uses 43 % of one 1000 W channel

This 432 W light uses 86 % of one 500 W channel

This 432 W light uses 86 % of one 500 W channel

This 432 W light uses 90 % of one 480 W channel

This 432 W light uses 100 % of one 432 W channel

購買前須知

Questions about the LS-LSC-0198

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which controller drives the LS-LSC-0198?

Fit-tested for this 432 W light: LS-CTL-0446 (about 750 W per channel, about 42 % headroom), LS-CTL-0022 (1000 W per channel, about 57 % headroom), LS-CTL-0267 (500 W per channel, about 14 % headroom) and LS-CTL-0254 (500 W per channel, about 14 % headroom).

What supply voltage and power does the LS-LSC-0198 need?

Voltage: 24 V; Power: 360 W/432 W. That is about 18.00 A at 432 W on 24 V (calculated).

How does the LS-LSC-0198 differ from LS-LSC-0196?

Compared with LS-LSC-0196: power 360 W/432 W here, 216 W/260 W there; emitting surface 484 x 24 mm here, 284 x 24 mm there.

水冷線形掃描燈 (LS-LSC-S21) 系列其他型號

查看所有10型號

How this model compares

  • Emitting length 484 mm; next size down 384 mm (LS-LSC-0197), up 584 mm (LS-LSC-0199), of 10 lengths from 84 to 984 mm.
  • Compared with LS-LSC-0196: power 360 W/432 W here, 216 W/260 W there; emitting surface 484 x 24 mm here, 284 x 24 mm there.
型號發光表面發光面積尺寸電壓價格庫存連結
LS-LSC-019484 x 24 mm84 x 24 mmL100xW40xH111.7(mm)24 V$459.00 2-3 週內出貨 View
LS-LSC-0195184 x 24 mm184 x 24 mmL200xW40xH111.7(mm)24 V$739.00 2-3 週內出貨 View
LS-LSC-0196284 x 24 mm284 x 24 mmL300xW40xH111.7(mm)24 V$1,009.00 2-3 週內出貨 View
LS-LSC-0197384 x 24 mm384 x 24 mmL400xW40xH111.7(mm)24 V$1,279.00 2-3 週內出貨 View
LS-LSC-0198This model484 x 24 mm484 x 24 mmL500xW40xH111.7(mm)24 V$1,549.00 2-3 週內出貨
LS-LSC-0199584 x 24 mm584 x 24 mmL600xW40xH111.7(mm)48 V$1,819.00 2-3 週內出貨 View
LS-LSC-0200684 x 24 mm684 x 24 mmL700xW40xH111.7(mm)48 V$2,089.00 2-3 週內出貨 View
LS-LSC-0201784 x 24 mm784 x 24 mmL800xW40xH111.7(mm)48 V$2,359.00 2-3 週內出貨 View
LS-LSC-0202884 x 24 mm884 x 24 mmL900xW40xH111.7(mm)48 V$2,629.00 2-3 週內出貨 View
