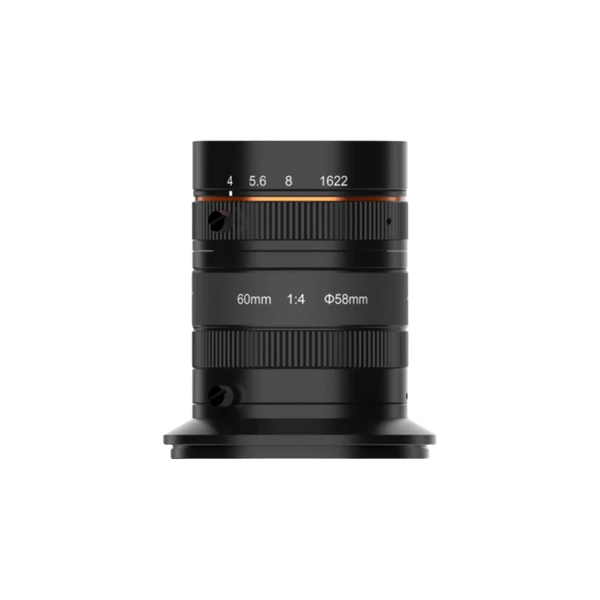

60 mm, F4.0, 大像圈 φ58 mm, 建議倍率 0.07-0.37x, M72-mount 鏡頭
LS-FFL-1431
- 焦距 60 mm
- 倍率 0.37x ~ 0.13x ~ 0.07x ~ 0.001x
$839.00
2-3 週內出貨
本系列代表照片
線陣相機
線陣相機 (V-generation)，16K，10GigE，黑白，16384*2 解析度 (LS-LCM-0105)
型號 LS-LCM-0105
- 解析度16384*2
- 介面10GigE
- 鏡頭接環M72
- 像素尺寸3.5 μm
$1,439.00
2-3 週內出貨
0.59 kg 運送重量
需要批量定價、淨價 30 條款或正式採購報價？
lumaspecvision.com/zh-hant/products/lumaspec-ls-lcm-0105
此 2K 線陣相機採用 GigE 介面，最大線頻為 120K
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
- 全球追蹤運送追蹤 UPS 或 DHL
- 至少 3 年保固涵蓋材料與工藝缺陷
- 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
- 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
- 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay
90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy
規格
一般
| 型號 | LS-LCM-0105 |
|---|---|
| 線頻 | 57 kHz |
感測器與成像
| 解析度 | 16384*2 |
|---|---|
| 感測器 | 16K |
| 像素尺寸 | 3.5 μm |
介面與I/O
| 資料介面 | 10GigE |
|---|
光源
| 單色 / 彩色 | 單色 |
|---|
機械
| 鏡頭接環 | M72 |
|---|---|
| 出貨重量 | 0.59 kg |
工程數據
LS-LCM-0105 之視野與解析度
Sensor area57.3 mm
Lens image circle needed≥ Ø 57.4 mmM72
像素間距3.5 µm16384 x 2 px
配備 60 mm 鏡頭，工作距離 500 mm478 mm0.029 mm per pixel
Image data at max line rate≈ 934 MB/sCalculated: 16384 px × 57 kHz at 8 bit
最大線速57 kHz
| 鏡頭 | At 300 mm | At 500 mm | At 1000 mm |
|---|---|---|---|
| 35 mm | 491 mm0.03 mm per pixel | 819 mm0.05 mm per pixel | 1637 mm0.1 mm per pixel |
| 50 mm | 344 mm0.021 mm per pixel | 573 mm0.035 mm per pixel | 1146 mm0.07 mm per pixel |
| 60 mm | 286 mm0.017 mm per pixel | 478 mm0.029 mm per pixel | 955 mm0.058 mm per pixel |
| 85 mm | 202 mm0.012 mm per pixel | 337 mm0.021 mm per pixel | 674 mm0.041 mm per pixel |
| 100 mm | 172 mm0.01 mm per pixel | 286 mm0.017 mm per pixel | 573 mm0.035 mm per pixel |
| 150 mm | 115 mm0.007 mm per pixel | 191 mm0.012 mm per pixel | 382 mm0.023 mm per pixel |
Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
相容零件
適用於此零件
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This part線陣相機 (V-generation)，16K，10GigE，黑白，16384*2 解析度 (LS-LCM-0105)
$1,439.00
-
Lenses for this camera
60 mm, F4.0, 大像圈 φ58 mm, 建議倍率 0.07-0.37x, M72-mount 鏡頭 (LS-FFL-1431)
$839.00
-
纜線與影像擷取卡
3 m GigE 相機傳輸線，螺絲鎖定 (LS-CBL-0195)
$22.00
Set total $2,300.00
Added to your quote list.
此 M72 相機適用鏡頭
This camera's 57.3 mm sensor diagonal uses 99 % of the lens's 58 mm image circle
30 mm，F4.0，影像尺寸 φ58 mm，建議倍率 0.031-0.145x，M72-mount
LS-FFL-1429
- 焦距 30 mm
- 倍率 0.145 x 至 0.031 x
$219.00
2-3 週內出貨
This camera's 57.3 mm sensor diagonal uses 99 % of the lens's 58 mm image circle
40 mm，F4.0，影像尺寸 φ64 mm，建議倍率 0.05-0.21x，M72-mount
LS-FFL-1430
- 焦距 40 mm
- 倍率 0.21 x 至 0.001 x
$229.00
2-3 週內出貨
This camera's 57.3 mm sensor diagonal uses 99 % of the lens's 58 mm image circle
This camera's 57.3 mm sensor diagonal uses 97 % of the lens's 59 mm image circle
This camera's 57.3 mm sensor diagonal uses 96 % of the lens's 60 mm image circle
80 mm, F4.0, 像面尺寸 φ60 mm, 建議倍率 0.12~0.31X, M72-mount
LS-FFL-1434
- 焦距 80 mm
- 倍率 0.12x 至 0.21x 至 0.31x
$969.00
2-3 週內出貨
This camera's 57.3 mm sensor diagonal uses 96 % of the lens's 60 mm image circle
纜線與影像擷取卡
10 GigE 卡、144.9 x 56.1 x 22.65 mm
LS-FGB-0001
- 介面 10-gigabit 乙太網路
- 尺寸 144.9 x 56.1 x 22.65 mm
$1,399.00
2-3 週內出貨
10 GigE 卡、203.5 x 126.25 x 22.1 mm
LS-FGB-0002
- 介面 10-gigabit 乙太網路
- 介面速率 10G/5G/2.5G/1G/100M
$1,529.00
2-3 週內出貨
購買前須知
Questions about the LS-LCM-0105
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which lenses fit the LS-LCM-0105?

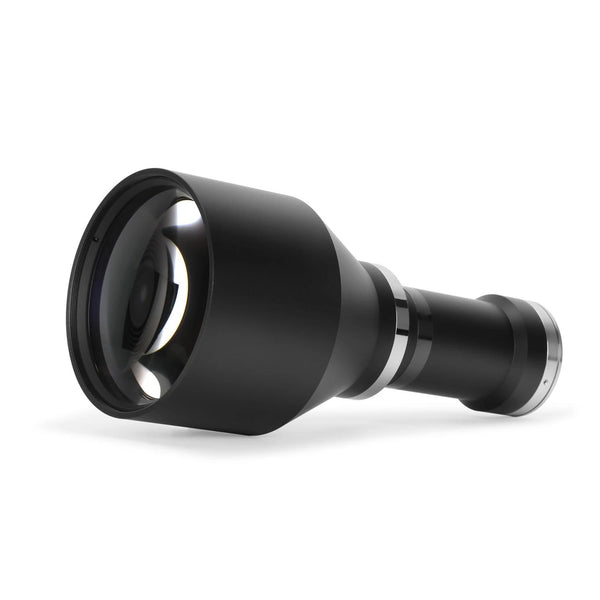

M72-mount lenses whose image circle covers its line (about 57.3 mm): LS-FFL-1431 (60 mm), LS-FFL-1429 (30 mm), LS-FFL-1430 (40 mm) and LS-LSL-0058 (0.63x).
What data rate does the LS-LCM-0105 need over 10GigE?
About 934 MB/s at its printed 57 kHz line rate x 16384 pixels (Mono 8, calculated).
Which cables and frame grabbers fit the LS-LCM-0105?
Fit-tested for its 10GigE interface: LS-CBL-0195 (3 m), LS-CBL-0196 (5 m), LS-CBL-0019 (3 m), LS-CBL-0197 (10 m) and frame grabber LS-FGB-0001.
How does the LS-LCM-0105 connect?
Printed: Data interface: 10GigE.
線陣相機 (LS-LCM-S16) 系列其他型號
查看所有30型號How this model compares
- Compared with LS-LCM-0106: line frequency 57 kHz here, 71 kHz there.
Swipe to see all columns
| 型號 | 解析度 | 鏡頭接環 | 像素尺寸 | 尺寸 | Line frequency | 價格 | 庫存 | 連結 |
|---|---|---|---|---|---|---|---|---|
| LS-LCM-0095 | 8192 x 2 | M72 | 7 µm | 8 K, 10GigE, Mono | 141 kHz | $1,439.00 | 2-3 週內出貨 | View |
| LS-LCM-0103 | 16384 x 1 | M72 | 3.5 µm | 16 K, 10GigE, Mono | 115 kHz | $1,439.00 | 2-3 週內出貨 | View |
| LS-LCM-0097 | 8192 x 3 | M72 | 7 µm | 8 K, 10GigE, Color | 57 kHz | $1,439.00 | 2-3 週內出貨 | View |
| LS-LCM-0105This model | 16384 x 2 | M72 | 3.5 µm | 16 K, 10GigE, Mono | 57 kHz | $1,439.00 | 2-3 週內出貨 | |
| LS-LCM-0106 | 16384 x 2 | M72 | 3.5 µm | 16 K, 10GigE, Mono | 71 kHz | $1,439.00 | 2-3 週內出貨 | View |
| LS-LCM-0104 | 16384 x 2 | M72 | 3.5 µm | 16 K, 10GigE, Color | 33 kHz | $1,439.00 | 2-3 週內出貨 | View |
| LS-LCM-0101 | 12288 x 3 | M72 | 5 µm | 12 K, 10GigE, Color | 31 kHz | $1,439.00 | 2-3 週內出貨 | View |
| LS-LCM-0102 | 12288 x 4 | M72 | 5 µm | 12 K, 10GigE, Mono | 94 kHz | $1,439.00 | 2-3 週內出貨 | View |
| LS-LCM-0107 | 16384 x 3 | M90 | 5 µm | 16 K, 10GigE, Color | 23.6 kHz | $1,439.00 | 2-3 週內出貨 | View |
