線陣相機
0K SWIR GigE 線陣相機，25 μm，29.4 kHz，M42 (LS-LCM-0035)
型號 LS-LCM-0035
- 解析度512 x 2
- 感測器InGaAs
- 介面GigE
- 速度29.4 kHz
- 鏡頭接環M42
- 像素尺寸25 μm
3-4 週內出貨
0.52 kg 運送重量
需要批量定價、淨價 30 條款或正式採購報價？
lumaspecvision.com/zh-hant/products/lumaspec-ls-lcm-0035
LS-LCM-0035: 解析度 512 x 2, 最大掃描速率 29.4 kHz, 資料介面 GigE, 動態範圍 ≥ 62.2 dB。
512畫素線陣相機，適用於連續式卷材、捲軸與傳送帶檢測。512 x 2畫素，每個畫素大小為25 μm；掃描速率最高達29.4 kHz；接口為GigE；鏡頭安裝座為M42。
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
- 全球追蹤運送追蹤 UPS 或 DHL
- 至少 3 年保固涵蓋材料與工藝缺陷
- 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
- 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
- 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay
90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy
規格
一般
| 型號 | LS-LCM-0035 |
|---|---|
| 光譜帶 | 0.95~1.7 μm |
| 散熱 | TEC 冷卻 |
感測器與成像
| 最大線速 | 29.4 kHz |
|---|---|
| 行頻（模式） | 29.4 kHz |
| 像素尺寸 | 25 μm |
| 解析度 | 512 x 2 |
| 感光元件類型 | InGaAs |
| 最大幀率 | 29.4 kHz |
| 感光元件尺寸 | 12.8 mm |
| 動態範圍 | ≥ 62.2 dB |
| 曝光時間 | 0.064 μs - 19.98 ms |
| 像素位元深度 | 8/10/12/14 bit |
介面與I/O
| 資料介面 | GigE |
|---|---|
| 數位 I/O | ● 軟體觸發 ● 硬體觸發 ● 自由運行 |
| 電源接頭 | DB15(母頭) |
光源
| 顏色類型 | 單色 |
|---|
環境與合規性
| 工作溫度 | 0 至 55 °C |
|---|---|
| 儲存溫度 | -20 至 75 °C |
電氣
| 電源 | DC12-24 V(±10%) 1.0A |
|---|
機械
| 鏡頭接環 | M42 |
|---|---|
| 重量 | 288 g |

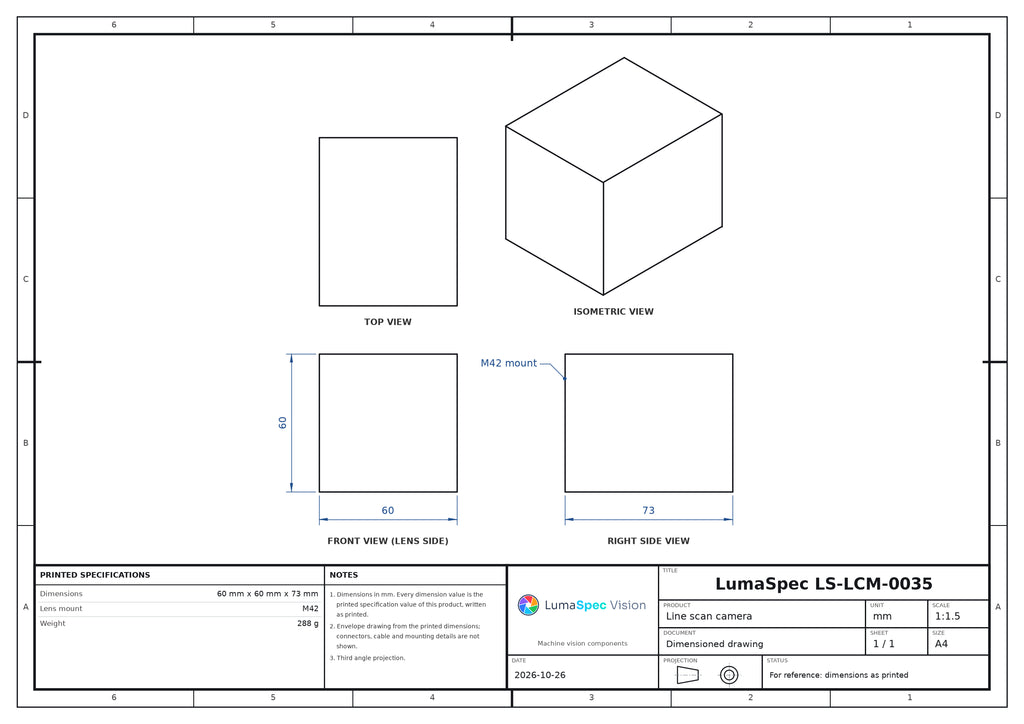

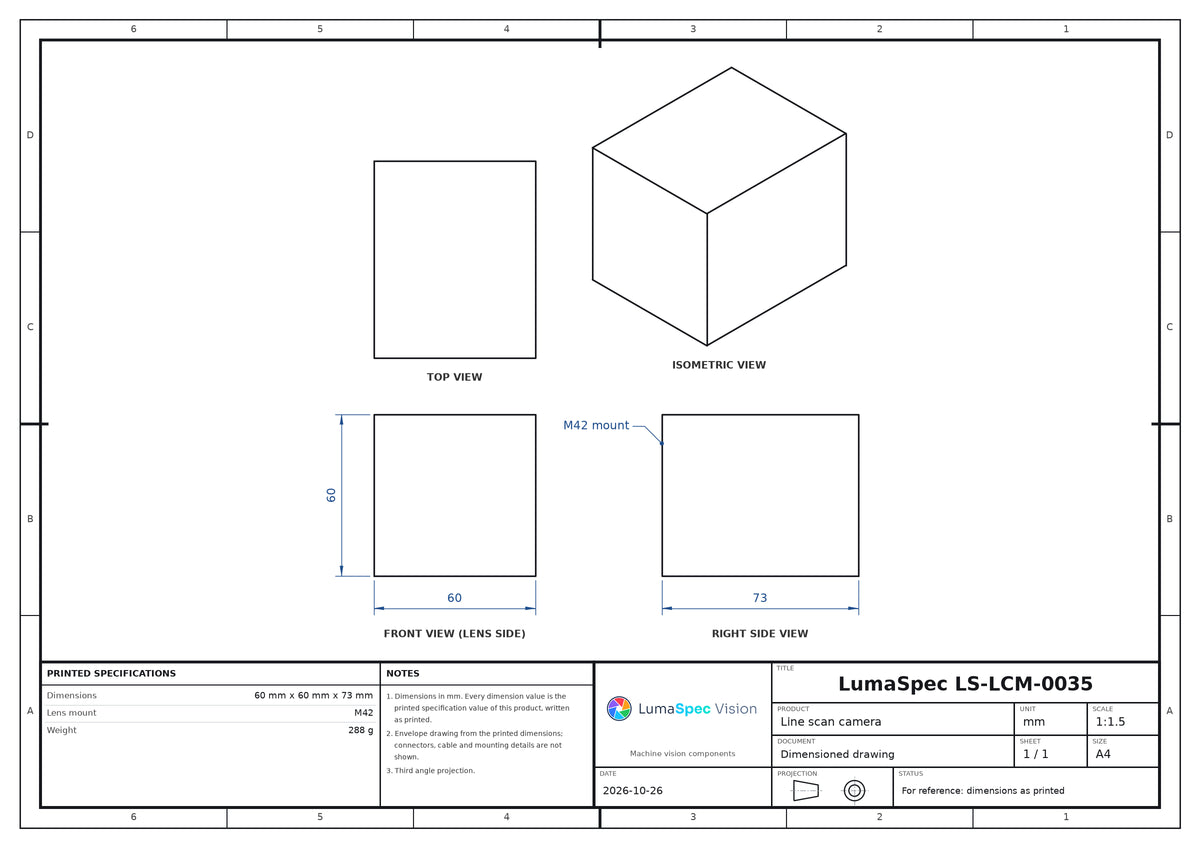

| 尺寸 | 60 mm x 60 mm x 73 mm |
工程數據
LS-LCM-0035 之視野與解析度
| 鏡頭 | At 300 mm | At 500 mm | At 1000 mm |
|---|---|---|---|
| 8 mm | 480 mm0.938 mm per pixel | 800 mm1.562 mm per pixel | 1600 mm3.125 mm per pixel |
| 12 mm | 320 mm0.625 mm per pixel | 533 mm1.042 mm per pixel | 1067 mm2.083 mm per pixel |
| 16 mm | 240 mm0.469 mm per pixel | 400 mm0.781 mm per pixel | 800 mm1.562 mm per pixel |
| 25 mm | 154 mm0.3 mm per pixel | 256 mm0.5 mm per pixel | 512 mm1 mm per pixel |
| 35 mm | 110 mm0.214 mm per pixel | 183 mm0.357 mm per pixel | 366 mm0.714 mm per pixel |
| 50 mm | 76.8 mm0.15 mm per pixel | 128 mm0.25 mm per pixel | 256 mm0.5 mm per pixel |
Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
相容零件
適用於此零件
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This part0K SWIR GigE 線陣相機，25 μm，29.4 kHz，M42 (LS-LCM-0035)
$3,530.00
-
纜線與影像擷取卡
3 m GigE 相機傳輸線，螺絲鎖定 (LS-CBL-0195)
$22.00
Set total $3,552.00
Added to your quote list.
纜線與影像擷取卡
購買前須知
Questions about the LS-LCM-0035
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
What data rate does the LS-LCM-0035 need over GigE?
About 15.1 MB/s at its printed 29.4 kHz line rate x 512 pixels (Mono 8, calculated).
Which cables does the LS-LCM-0035 take?
Fit-tested for its GigE interface: LS-CBL-0195 (3 m), LS-CBL-0196 (5 m), LS-CBL-0072 (1 m), LS-CBL-0084 (1 m) and LS-CBL-0107 (1 m).
What detector and spectral range does the LS-LCM-0035 have?
Printed: Spectral band: 0.95~1.7 μm.
How does the LS-LCM-0035 connect?
Printed: Data interface: GigE.
What I/O does the LS-LCM-0035 have?
Printed: Digital I/O: Soft Trigger; Hardware Trigger; Free Run.
SWIR GigE 線陣相機 (LS-LCM-S07) 系列其他型號
查看所有9型號How this model compares
- Compared with LS-LCM-0039: resolution 512 x 2 here, 1024 x 1 there; spectral band 0.95~1.7 µm here, 0.9~1.7 µm there.
Swipe to see all columns
| 型號 | 解析度 | 介面 | Speed | Spectral band | Line rate (modes) | 價格 | 庫存 | 連結 |
|---|---|---|---|---|---|---|---|---|
| LS-LCM-0035This model | 512 x 2 | GigE | 29.4 kHz | 0.95~1.7 µm | 29.4 kHz | $3,530.00 | 3-4 週內出貨 | |
| LS-LCM-0037 | 512 x 2 | GigE / Camera Link | 29.4 kHz | 29.4 kHz | $3,600.00 | 3-4 週內出貨 | View | |
| LS-LCM-0036 | 512 x 2 | GigE | 29.4 kHz | 29.4 kHz | $3,675.00 | 3-4 週內出貨 | View | |
| LS-LCM-0039 | 1024 x 1 | GigE | 29.4 kHz | 0.9~1.7 µm | 29.4 kHz | $3,960.00 | 3-4 週內出貨 | View |
| LS-LCM-0038 | 1024 x 1 | GigE | 29.4 kHz | $4,020.00 | 3-4 週內出貨 | View | ||
| LS-LCM-0040 | 1024 x 1 | GigE | 29.4 kHz | 29.4 kHz | $4,224.00 | 3-4 週內出貨 | View | |
| LS-LCM-0042 | 2048 x 1 | GigE | 40 kHz | 0.95~1.7 µm | 40 kHz | $5,780.00 詢價 | 3-4 週內出貨 | View |
| LS-LCM-0041 | 2048 x 1 | GigE | 40 kHz | 40 kHz | $5,800.00 詢價 | 3-4 週內出貨 | View | |
| LS-LCM-0044 | 2048 x 1 | GigE / Camera Link | 40 kHz | 40 kHz | $5,850.00 詢價 | 3-4 週內出貨 | View |
