機器視覺鏡頭
2/3"，C-mount 機器視覺鏡頭，0.2x，工作距離 170 mm，長度 73.1 mm (LS-FFL-0904)
型號 LS-FFL-0904
- 倍率0.2x
- 安裝C-mount
- 感測器2/3"
- 工作距離170 mm
- 光圈12.6
2-3 週內出貨
0.31 kg 運送重量
需要批量定價、淨價 30 條款或正式採購報價？
lumaspecvision.com/zh-hant/products/lumaspec-ls-ffl-0904
LS-FFL-0904: 感測器格式 2/3"，像側 F/# 12.6，工作距離 170 mm，倍率 0.2x。
2/3", C-mount 機器視覺鏡頭。概覽：倍率 0.2x；工作距離 170 mm；最大感光元件尺寸 11 mm (2/3")；物方解析度 42.2 µm；像方 f/# 12.6。
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
- 全球追蹤運送追蹤 UPS 或 DHL
- 至少 3 年保固涵蓋材料與工藝缺陷
- 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
- 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
- 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay
90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy
規格
一般
| 型號 | LS-FFL-0904 |
|---|
光學
| 倍率 (x) | 0.2 |
|---|---|
| 工作距離 (mm) | 170 |
| 像方 F/# | 12.6 |
| 物方遠心度 (最大 deg) | 非遠心 |
| 像方畸變 (% 最大值) | 0.13 |
| 數值孔徑 NA | 0.00795 |
| 物方解析度 (um) | 42.2 |
| 理論景深 (mm) | 25.2 |
| 像方 MTF30 (lp/mm) | 75 |
| 總長度 TTL (mm) | 73.1 |
| 前端濾光片螺紋 | M25x0.5 |
| 出貨時實測景深（mm） | 13 |
感測器與成像
| 感光元件格式 | 2/3" |
|---|---|
| 最大感光元件尺寸（直徑 mm） | 11 |
機械
| 外徑 O.D (mm) | dia. 30 |
|---|---|
| 安裝 | C |
| 出貨重量（估計） | 0.31 kg |
照片顯示本系列代表機型；請參閱本機型規格。
工程數據
LS-FFL-0904 之視野
| 感光元件格式 | 0.2× |
|---|---|
| 1/2.5"5.76 × 4.29 mm | 28.8 × 21.4 mm |
| 1/2"6.4 × 4.8 mm | 32 × 24 mm |
| 1/1.8"7.07 × 5.3 mm | 35.4 × 26.5 mm |
| 2/3"8.8 × 6.6 mm | 44 × 33 mm |
視野 = 感光元件尺寸 ÷ 倍率。感光元件尺寸為各光學格式的典型值。
相容零件
適用於此零件
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This part2/3"，C-mount 機器視覺鏡頭，0.2x，工作距離 170 mm，長度 73.1 mm (LS-FFL-0904)
$189.00
-
適用此鏡頭的相機
10 GigE 面陣相機，5.0 MP，彩色/單色 (LS-CMR-0313)
$2,699.00
Set total $2,888.00
Added to your quote list.
適用此鏡頭的相機
Its 10.8 mm sensor diagonal uses 98 % of this lens's 11 mm image circle

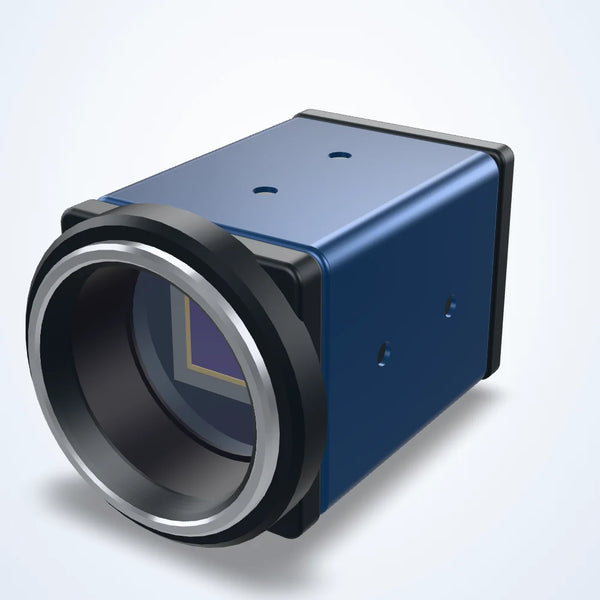

2.3 MP Camera Link 面陣相機，PYTHON2000，2/3" 全局快門，38 fps
LS-CMR-0072
- 解析度 1920 px x 1200 px
- 感測器 2/3"
$750.00
3-4 週內出貨
Its 10.9 mm sensor diagonal uses 99 % of this lens's 11 mm image circle
Its 10.9 mm sensor diagonal uses 99 % of this lens's 11 mm image circle
Its 11 mm sensor diagonal uses 100 % of this lens's 11 mm image circle
Its 11 mm sensor diagonal uses 100 % of this lens's 11 mm image circle
Its 9.2 mm sensor diagonal uses 84 % of this lens's 11 mm image circle
轉接環
應用案例
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-FFL-1542, the same type of part
電子設備
在 1300 nm 的光伏參考標記
選擇您需要定位的標記的光譜波段。建議光源外殼 (規格)162 × 22 × 36 mm探索研究
Set up with the LS-FFL-1454, the same type of part
塑膠、橡膠與陶瓷
風扇轉子定位
使用環形燈作為中心，並使用幾個明顯的缺口來辨識角度。光源內LS-SDL-0112 · 藍色探索研究
Set up with the LS-FFL-1455, the same type of part
電子設備
壓接端子顏色
先消除眩光，再判斷色彩與位置。光源內LS-RNG-0586 · 白色探索研究
購買前須知
Questions about the LS-FFL-0904
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which cameras does the LS-FFL-0904 cover?
Its image circle (about 11 mm) covers these fit-tested cameras: LS-CMR-0313 (2/3", 5 MP), LS-CMR-0072 (2/3", 2.3 MP), LS-CMR-0310 (2/3", 2.8 MP) and LS-CMR-0158 (2/3", 8.1 MP).
What field of view does the LS-FFL-0904 give?
About 44 x 33 mm on a 2/3" sensor, at its 170 mm working distance (calculated: sensor size / 0.2x magnification).
Does the LS-FFL-0904 need an adapter for C-mount or CS-mount cameras?
Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.
What sensor size is the LS-FFL-0904 made for?
Printed: Sensor format: 2/3"; Max sensor size (dia. mm): 11.
長工作距離標準機器視覺鏡頭 (LS-FFL-S96) 系列其他型號
查看所有288型號How this model compares
- Same 0.2x magnification as LS-FFL-0789 (180 mm WD) and LS-FFL-0905 (180 mm WD); this one: 170 mm WD.
- Compared with LS-FFL-0845: magnification 0.2x here, 0.5x there; total length 73.1 mm here, 149.7 mm there.
- Total length 73.1 mm: only 29 of the 286 lenses that list a total length are shorter.
- Image circle 11 mm: only 76 of the 288 lenses in the series are larger.
Swipe to see all columns
| 型號 | Numerical aperture NA | 倍率 | 感測器 | 工作距離 | 價格 | 庫存 | 連結 |
|---|---|---|---|---|---|---|---|
| LS-FFL-0911 | 0.0074 | 0.2x | 2/3" | 625 mm | $189.00 | 2-3 週內出貨 | View |
| LS-FFL-0727 | 0.00742 | 0.2x | 1" | 590 mm | $309.00 | 2-3 週內出貨 | View |
| LS-FFL-0910 | 0.00746 | 0.2x | 2/3" | 620 mm | $189.00 | 2-3 週內出貨 | View |
| LS-FFL-0974 | 0.00751 | 0.14x | 2/3" | 700 mm | $189.00 | 2-3 週內出貨 | View |
| LS-FFL-0904This model | 0.00795 | 0.2x | 2/3" | 170 mm | $189.00 | 2-3 週內出貨 | |
| LS-FFL-0905 | 0.00804 | 0.2x | 2/3" | 180 mm | $189.00 | 2-3 週內出貨 | View |
| LS-FFL-0981 | 0.0086 | 0.18x | 2/3" | 680 mm | $189.00 | 2-3 週內出貨 | View |
| LS-FFL-0989 | 0.0088 | 0.22x | 2/3" | 580 mm | $189.00 | 2-3 週內出貨 | View |
| LS-FFL-0832 | 0.00913 | 0.2x | 1/1.8" | 155 mm | $189.00 | 2-3 週內出貨 | View |
