800 x 800 mm 孔背光 (LS-BKL-0903)
  • 800 x 800 mm 孔背光 (LS-BKL-0903)
  • LS-BKL-0903 個尺寸 (mm)

本系列代表照片

背光

800 x 800 mm 孔背光 (LS-BKL-0903)

型號 LS-BKL-0903-R

  • 顏色紅色, 藍色, 白色
  • 電壓24 V
  • 類型帶中心孔
  • LED 類型SMD
$3,639.00

2-3 週內出貨

15.3 kg 運送重量

顏色

需要批量定價、淨價 30 條款或正式採購報價？

lumaspecvision.com/zh-hant/products/lumaspec-ls-bkl-0903

請求詢價

800 x 800 mm 孔背光 (LS-BKL-0903)LS-BKL-0903-R

透過電子郵件提供價格、交期和數量價格，通常在一個工作日內。

加入電話、交貨日期或備註（選填）

無需帳號。我們會在一個工作天內回覆。

孔背光 (LS-BKL-S91) 採用 SMD LED, 發光尺寸 150 x 150 至 1000 x 1000 mm; 根據尺寸提供 SM3, 4-pin WS16 或 4-pin WS20 航空接頭。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
  • 全球追蹤運送追蹤 UPS 或 DHL
  • 至少 3 年保固涵蓋材料與工藝缺陷
  • 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
  • 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
  • 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay

90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy

規格

一般

型號LS-BKL-0903
工作壽命白色: 30000 小時，紅色: 30000 小時（依使用環境而異）
優質服務一年產品保固，技術支援
長度 (mm)814
寬度 (mm)854
高度 (mm)32
備註4 針 WS20 航空接頭

光源

LED 類型SMD
光源尺寸 (mm)800x800
紅色波長620-630 nm
藍色波長460-470 nm
白色色溫6000-7500 K

環境與合規性

操作環境（室內）溫度 0~40 °C，濕度 20~85%（無凝結）

電氣

電源容差實際產品功率於表格 ±10% 內為正常範圍
電壓 (V)24
紅色功率 (W)219.5
藍色/白色功率 (W)256.0

機械

線長500 mm (圖紙)
出貨重量15.30 kg

工程數據

安裝並固定 LS-BKL-0903

供應24 V DC
24 V 下的電流10667 mACalculated: printed power ÷ supply voltage
所需控制器通道24 V constant voltage, at least 256 W
發光面積800 × 800 mmKeep the camera's field of view inside it for an even background.
工作溫度0 至 40 °C
電纜長度500 mmdrawing

Mounting and installation

安裝See the dimension drawing
纜線0.5 m

Check the dimension drawing in Downloads before you drill a fixture.

相容零件

適用於此零件

Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $3,868.00

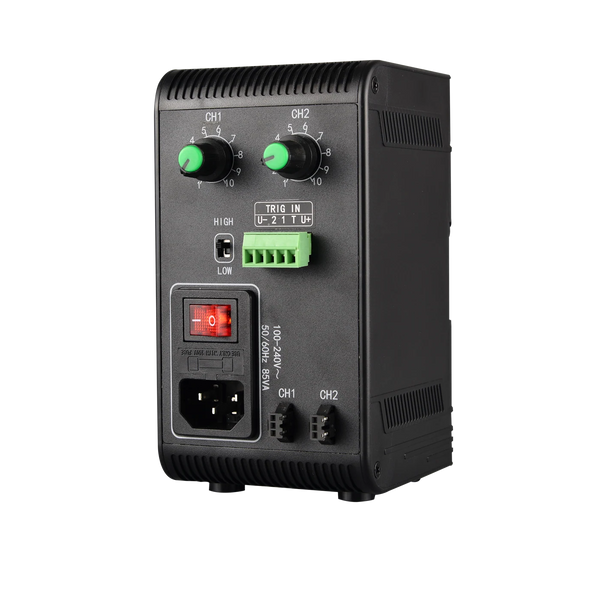

此光源的照明控制器

This 256 W light uses 64 % of one 400 W channel

This 256 W light uses 64 % of one 400 W channel

This 256 W light uses 64 % of one 400 W channel

This 256 W light uses 64 % of one 400 W channel

This 256 W light uses 59 % of one 432 W channel

This 256 W light uses 53 % of one 480 W channel

購買前須知

Questions about the LS-BKL-0903

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which controller drives the LS-BKL-0903?

Fit-tested for this 256 W light: LS-CTL-0118 (400 W per channel, about 36 % headroom), LS-CTL-0266 (400 W per channel, about 36 % headroom), LS-CTL-0020 (400 W per channel, about 36 % headroom) and LS-CTL-0253 (400 W per channel, about 36 % headroom).

What supply voltage and power does the LS-BKL-0903 need?

Voltage: 24 V; Power red: 219.5 W; Power blue/white: 256.0 W. That is about 10.67 A at 256 W on 24 V (calculated).

How does the LS-BKL-0903 differ from LS-BKL-0902?

Compared with LS-BKL-0902: power (red) 219.5 W here, 200.6 W there; power (blue, white) 256.0 W here, 238.0 W there.

孔型背光 (LS-BKL-S91) 系列其他型號

查看所有22型號

How this model compares

  • Luminous size 800 x 800 mm; next smaller area 700 x 700 mm (LS-BKL-0901), larger 900 x 900 mm (LS-BKL-0904), of 22 sizes from 200 x 100 to 1000 x 1000 mm.
  • Compared with LS-BKL-0902: power (red) 219.5 W here, 200.6 W there; power (blue, white) 256.0 W here, 238.0 W there.
型號發光尺寸價格庫存連結
LS-BKL-0898600 x 400 mm$1,869.00 2-3 週內出貨 View
LS-BKL-0897500 x 500 mm$1,929.00 2-3 週內出貨 View
LS-BKL-0900700 x 500 mm$2,079.00 2-3 週內出貨 View
LS-BKL-0899600 x 600 mm$2,129.00 2-3 週內出貨 View
LS-BKL-0902800 x 600 mm$2,779.00 2-3 週內出貨 View
LS-BKL-0901700 x 700 mm$2,839.00 2-3 週內出貨 View
LS-BKL-0903This model800 x 800 mm$3,639.00 2-3 週內出貨
LS-BKL-0904900 x 900 mm$4,559.00 2-3 週內出貨 View
LS-BKL-09051000 x 1000 mm$5,579.00 詢價 2-3 週內出貨 View
