6.3 MP USB3 板級相機，IMX178，1/1.8" 捲簾快門，60 fps，M12 (LS-BCM-0005)
  • 6.3 MP USB3 板級相機，IMX178，1/1.8" 捲簾快門，60 fps，M12 (LS-BCM-0005)
  • 6.3 MP USB3 板級相機，IMX178，1/1.8" 捲簾快門，60 fps，M12 (LS-BCM-0005)
  • 6.3 MP USB3 板級相機，IMX178，1/1.8" 捲簾快門，60 fps，M12 (LS-BCM-0005)

渲染圖：實際產品外觀可能有所不同。

板級相機

6.3 MP USB3 板級相機，IMX178，1/1.8" 捲簾快門，60 fps，M12 (LS-BCM-0005)

型號 LS-BCM-0005

  • 解析度3072 × 2048 (6.3 MP)
  • 感測器1/1.8"
  • 介面USB3.0
  • 速度60 fps
  • 鏡頭接環M12
  • 像素尺寸2.4 μm
$322.00

3-4 週內出貨

0.24 kg 運送重量

需要批量定價、淨價 30 條款或正式採購報價？

lumaspecvision.com/zh-hant/products/lumaspec-ls-bcm-0005

請求詢價

6.3 MP USB3 板級相機，IMX178，1/1.8" 捲簾快門，60 fps，M12 (LS-BCM-0005)LS-BCM-0005

透過電子郵件提供價格、交期和數量價格，通常在一個工作日內。

加入電話、交貨日期或備註（選填）

無需帳號。我們會在一個工作天內回覆。

LS-BCM-0005: 解析度 3072 x 2048 (6.3 MP), 感光元件尺寸 1/1.8", 最大畫面速率 60 fps, 動態範圍 66.0 dB, 鏡頭接環 M12。

用於將視覺整合至小型機械與設備中的 6.3 MP 板級相機。IMX178 感光元件 (1/1.8")；3072 x 2048 像素，像素尺寸 2.4 μm；幀率最高可達每秒 60 幀；捲簾快門；USB3 介面；M12 鏡頭接環。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
  • 全球追蹤運送追蹤 UPS 或 DHL
  • 至少 3 年保固涵蓋材料與工藝缺陷
  • 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
  • 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
  • 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay

90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy

規格

一般

型號LS-BCM-0005

感測器與成像

感測器型號Sony IMX178
解析度3072 × 2048 (6.3MP)
最大幀率60 fps
像素尺寸2.4 μm
感光元件尺寸1/1.8"
快門滾動式
像素位元深度10-bit
感測器品牌Sony
感光元件類型CMOS
動態範圍66.0 dB
曝光時間11 μs ~ 1 s

介面與I/O

資料介面USB3.0
數位 I/O1 組光耦合隔離輸入線，1 組光耦合隔離輸出線，1 組非光耦合隔離可配置輸入輸出線

環境與合規性

工作溫度-30 至 50 °C
儲存溫度-30 至 80 °C

電氣

輸出顏色
觸發模式● 軟體觸發 ● 硬體觸發 ● 自由運行
電源5 V 透過 USB3.0 介面

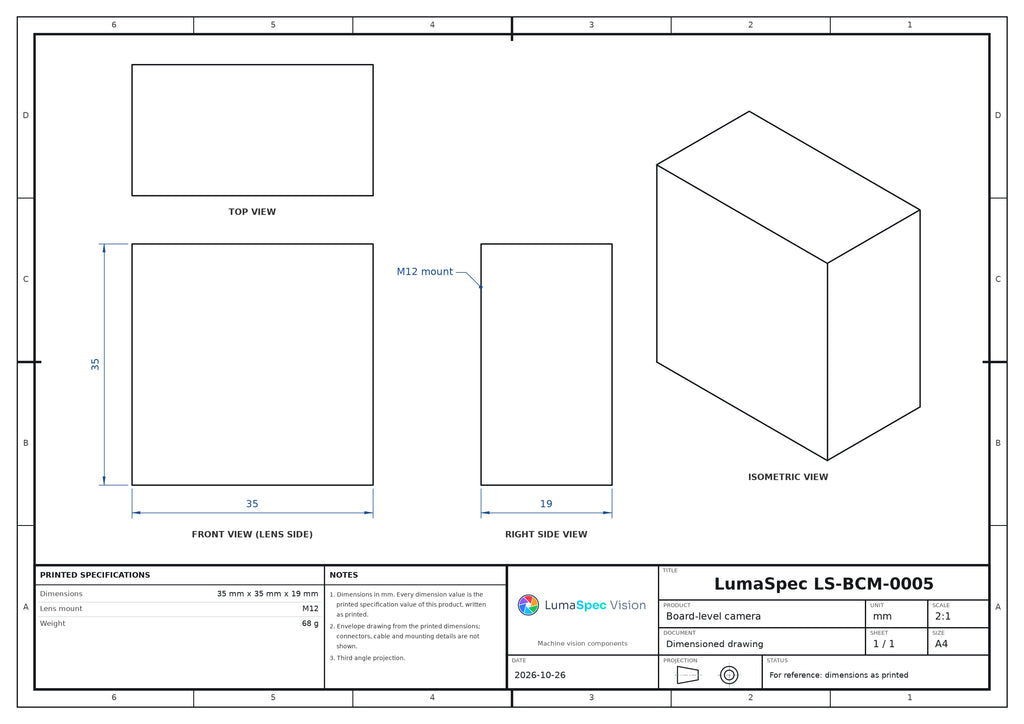

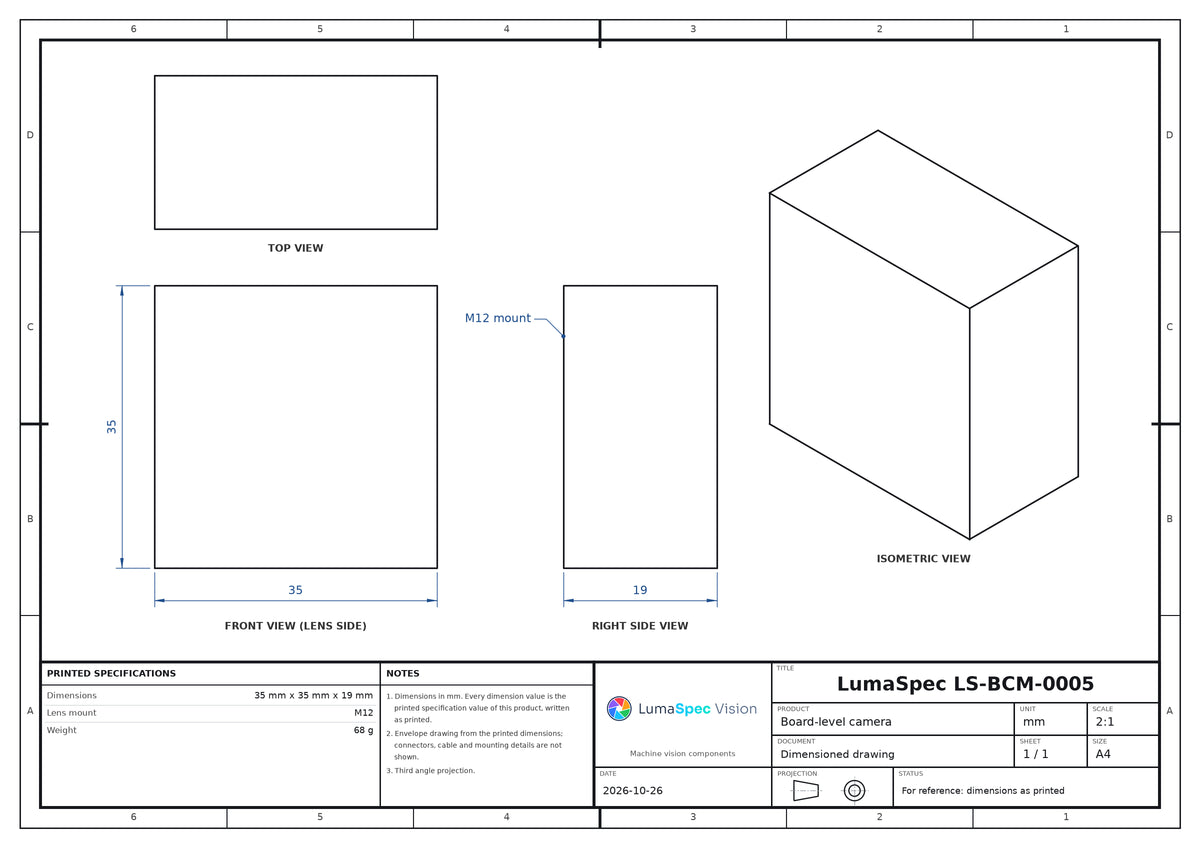

機械

鏡頭接環M12
尺寸35 mm x 35 mm x 19 mm
重量68 g

工程數據

LS-BCM-0005 之視野與解析度

Sensor area7.37 × 4.92 mm1/1.8" optical format
Lens image circle needed≥ Ø 8.9 mmM12
像素間距2.4 µm3072 x 2048 px
配備 6 mm 鏡頭，工作距離 500 mm614 × 410 mm0.2 mm per pixel
動態範圍66.0 dB
快門滾動式
Exposure range11 µs 至 1 s
重量68 g
依鏡頭焦距與工作距離的視野 (寬 × 高) 與物件像素尺寸
鏡頭At 300 mmAt 500 mmAt 1000 mm
2.8 mm790 × 527 mm0.257 mm per pixel1316 × 879 mm0.428 mm per pixel2632 × 1757 mm0.857 mm per pixel
4 mm553 × 369 mm0.18 mm per pixel921 × 615 mm0.3 mm per pixel1842 × 1230 mm0.6 mm per pixel
6 mm368 × 246 mm0.12 mm per pixel614 × 410 mm0.2 mm per pixel1228 × 820 mm0.4 mm per pixel
8 mm276 × 184 mm0.09 mm per pixel461 × 308 mm0.15 mm per pixel921 × 615 mm0.3 mm per pixel
12 mm184 × 123 mm0.06 mm per pixel307 × 205 mm0.1 mm per pixel614 × 410 mm0.2 mm per pixel
16 mm138 × 92.2 mm0.045 mm per pixel230 × 154 mm0.075 mm per pixel461 × 308 mm0.15 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

相容零件

適用於此零件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $433.00

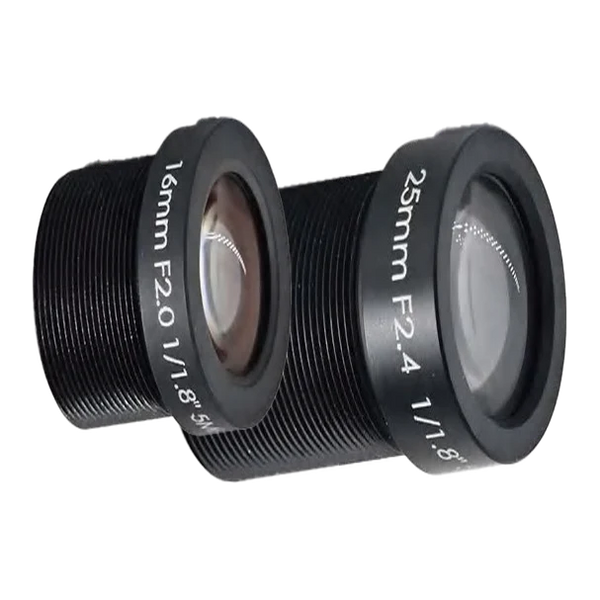

此 M12 相機適用鏡頭

This camera's 8.9 mm sensor diagonal uses 100 % of the lens's 8.9 mm image circle

This camera's 8.9 mm sensor diagonal uses 100 % of the lens's 8.9 mm image circle

This camera's 8.9 mm sensor diagonal uses 100 % of the lens's 8.9 mm image circle

This camera's 8.9 mm sensor diagonal uses 100 % of the lens's 8.9 mm image circle

This camera's 8.9 mm sensor diagonal uses 100 % of the lens's 8.9 mm image circle

This camera's 8.9 mm sensor diagonal uses 99 % of the lens's 9 mm image circle

纜線與影像擷取卡

購買前須知

Questions about the LS-BCM-0005

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the LS-BCM-0005?

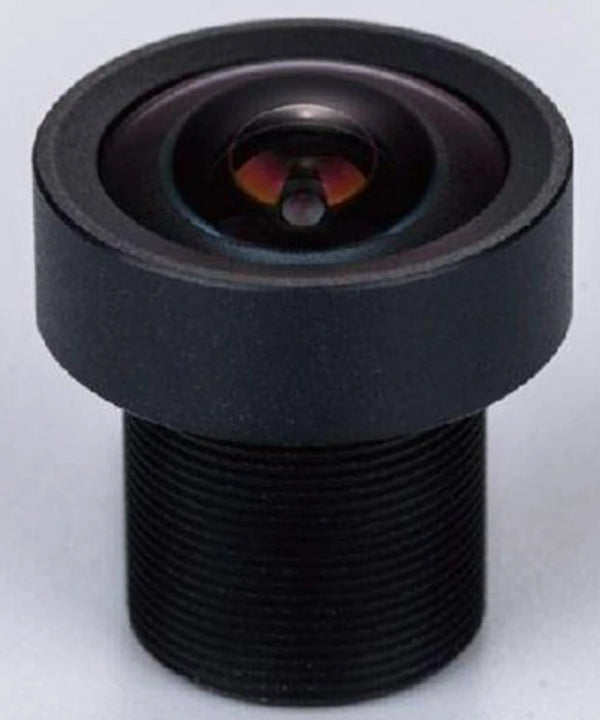

M12-mount lenses whose image circle covers its sensor diagonal (about 8.9 mm): LS-MBL-0010 (6 mm), LS-MBL-0102 (5 mm), LS-MBL-0013 (16 mm) and LS-MBL-0172 (7.8 mm).

Which cables does the LS-BCM-0005 take?

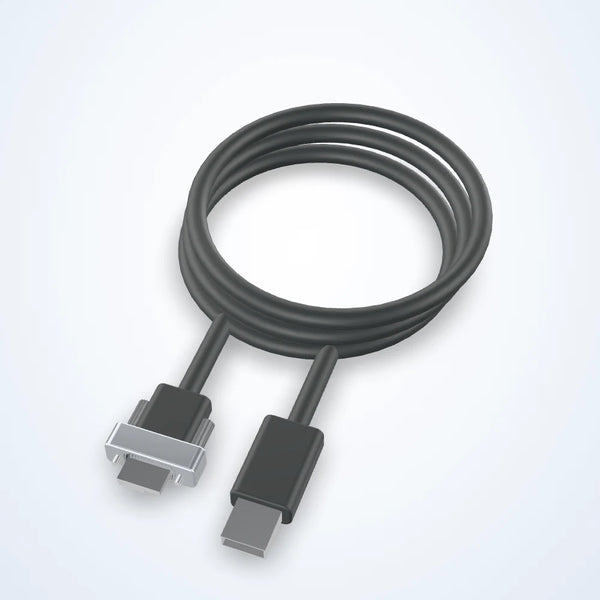

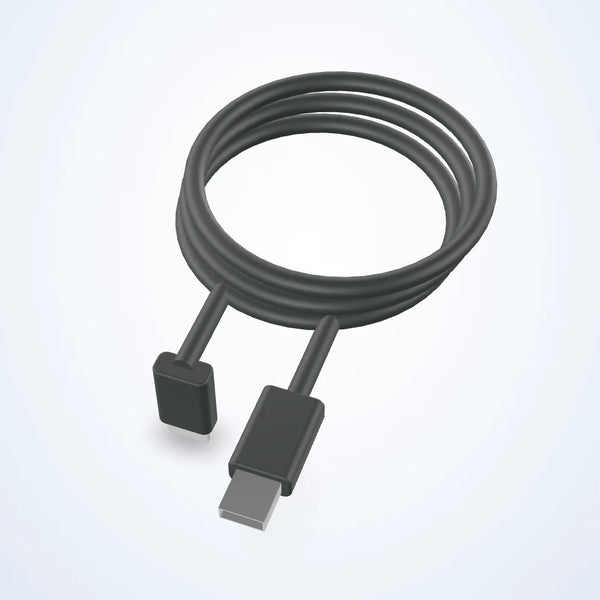

Fit-tested for its USB3 interface: LS-CBL-0217 (3 m), LS-CBL-0218 (5 m), LS-CBL-0220 (5 m), LS-CBL-0219 (3 m) and LS-CBL-0221 (3 m).

How does the LS-BCM-0005 connect?

Printed: Data interface: USB3.0.

Can the LS-BCM-0005 be triggered externally?

Yes, as printed: Trigger mode: Soft Trigger; Hardware Trigger; Free Run; Digital I/O: 1 opto-isolated input lines, 1 opto-isolated output lines, 1 non-opto-isolated Configurable input and output lines.

What power supply does the LS-BCM-0005 need?

Printed: Power supply: 5 V via USB3.0 port.

USB3 板級相機（LS-BCM-S02） 系列其他型號

查看所有4型號

How this model compares

  • Compared with LS-BCM-0004: output Color here, Mono / Color there.
型號像素尺寸解析度感測器Speed鏡頭接環價格庫存連結
LS-BCM-00042.4 µm3072 x 2048 (6.3 MP)1/1.8"60 fpsC-mount$275.00 3-4 週內出貨 View
LS-BCM-0005This model2.4 µm3072 x 2048 (6.3 MP)1/1.8"60 fpsM12$322.00 3-4 週內出貨
LS-BCM-00033.45 µm2048 x 1536 (3 MP)1/1.8"120 fpsC-mount$690.00 3-4 週內出貨 View
LS-BCM-00025.86 µm1920 x 12001/1.2"164 fpsC-mount$737.00 3-4 週內出貨 View
