352.8 mm 條形光源（LS-BAR-0979）
  • 352.8 mm 條形光源（LS-BAR-0979）
  • LS-BAR-0979 個尺寸 (mm)

本系列代表照片

條形燈

352.8 mm 條形光源（LS-BAR-0979）

型號 LS-BAR-0979-R

  • 顏色紅色, 綠色, 藍色, 白色, 紅外線, UV
  • 發光面積35.2 mm
  • 電壓24 V DC (可根據需求提供 12 V)
  • 類型條形 / 組合
$459.00

2-3 週內出貨

0.6 kg 運送重量

顏色

需要批量定價、淨價 30 條款或正式採購報價？

lumaspecvision.com/zh-hant/products/lumaspec-ls-bar-0979

請求詢價

352.8 mm 條形光源（LS-BAR-0979）LS-BAR-0979-R

透過電子郵件提供價格、交期和數量價格，通常在一個工作日內。

加入電話、交貨日期或備註（選填）

無需帳號。我們會在一個工作天內回覆。

採用表面貼裝 LED 與特殊光學鏡頭以集中發散角的條形燈；高 CP 值大面積照明的首選。由 25.2 mm 拼接單元組成；尺寸可客製化。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全結帳 Shipping, warranty, support and payment details
  • 全球追蹤運送追蹤 UPS 或 DHL
  • 至少 3 年保固涵蓋材料與工藝缺陷
  • 包含專業機器視覺技術支援來自我們工程團隊，包含執照專業工程師
  • 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
  • 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay

90 天退貨 未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費 Return policy

規格

一般

型號LS-BAR-0979
燈條行數8
最小拼接單元（mm）25.2

介面與I/O

電纜長度 (mm)500

光源

發光面寬度 (mm)35.2
發射面長度 (mm)352.8

電氣

電壓24 V DC (可根據需求提供 12 V)
紅色功率 (W)17.5
白色/藍色/綠色功率 (W)19.5

機械

寬度 (mm)40
高度 (mm)23.9
安裝2 x M3, 深度 4; M3 螺帽定位槽
總長 (mm)367.8
總寬度 (mm)40
總高度 (mm)23.9
出貨重量0.60 kg

工程數據

安裝並固定 LS-BAR-0979

24 V 下的電流812 mACalculated: printed power ÷ supply voltage
所需控制器通道24 V constant voltage, at least 19.5 W

Mounting and installation

安裝孔 2 × M3, 4 mm deep
安裝T-slot / nut channel, Slots take M3 nuts
纜線0.5 m

相容零件

適用於此零件

Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $708.00

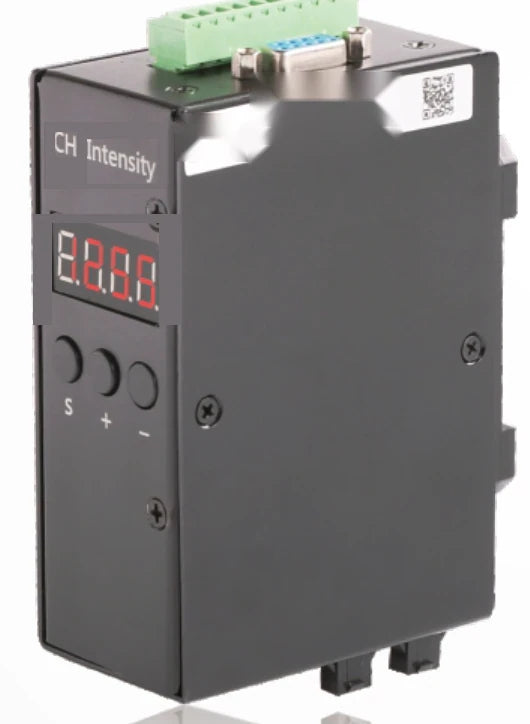

此光源的照明控制器

This 19.5 W light uses 65 % of one 30 W channel

This 19.5 W light uses 65 % of one 30 W channel

This 19.5 W light uses 65 % of one 30 W channel

This 19.5 W light uses 62 % of one channel (about 31.2 W, from the rated output)

This 19.5 W light uses 69 % of one channel (about 28.1 W, from the rated output)

This 19.5 W light uses 61 % of one channel (about 32 W, from the rated output)

購買前須知

Questions about the LS-BAR-0979

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which controller drives the LS-BAR-0979?

Fit-tested for this 19.5 W light: LS-CTL-0013 (30 W per channel, about 35 % headroom), LS-CTL-0347 (30 W per channel, about 35 % headroom), LS-CTL-0451 (30 W per channel, about 35 % headroom) and LS-CTL-0362 (about 31.2 W per channel, about 38 % headroom).

What supply voltage and power does the LS-BAR-0979 need?

Voltage: 24 V DC (12 V on request); Power red: 17.5 W; Power white/blue/green: 19.5 W. That is about 0.81 A at 19.5 W on 24 V (calculated).

How does the LS-BAR-0979 differ from LS-BAR-0980?

Compared with LS-BAR-0980: power (red) 17.5 W here, 20 W there; power (white, blue, green) 19.5 W here, 21.6 W there.

條形光源 (LS-BAR-S92) 系列其他型號

查看所有32型號

How this model compares

  • Compared with LS-BAR-0980: power (red) 17.5 W here, 20 W there; power (white, blue, green) 19.5 W here, 21.6 W there.
  • Overall length 367.8 mm; next size down 342.6 mm (LS-BAR-0978), up 393 mm (LS-BAR-0980), of 32 overall lengths from 40.2 to 1814.4 mm.
型號總長價格庫存連結
LS-BAR-0975267 mm$379.00 2-3 週內出貨 View
LS-BAR-0976292.2 mm$399.00 2-3 週內出貨 View
LS-BAR-0977317.4 mm$419.00 2-3 週內出貨 View
LS-BAR-0978342.6 mm$439.00 2-3 週內出貨 View
LS-BAR-0979This model367.8 mm$459.00 2-3 週內出貨
LS-BAR-0980393 mm$479.00 2-3 週內出貨 View
LS-BAR-0981418.2 mm$519.00 2-3 週內出貨 View
LS-BAR-0982443.4 mm$569.00 2-3 週內出貨 View
LS-BAR-0983468.6 mm$579.00 2-3 週內出貨 View
