Plier-jaw gaps: keep a narrow light path visible between dark jaws

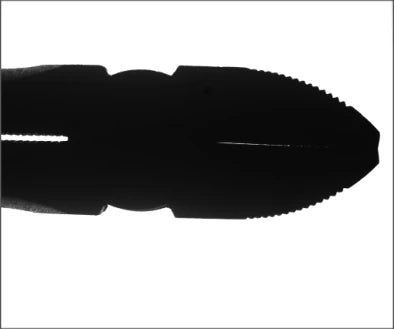

The supplied blue-backlight image shows a dark plier-tip outline with a faint narrow light line between the jaws. It is a useful starting point for a gap trial, while the source provides no gap value or measurement accuracy.
Prove the narrow light path before claiming a gap measurement.
實際相機拍攝
- Light in sourceLS-2FS100100 · blue
- EvidenceReal application-lab image
- Imaging kitCamera, lens and fixture proposed
- AcceptanceValidate on representative parts
Lighting application-lab catalog capture
What the camera saw
Cropped from the source test sheet; original test annotations are retained. Captures are not generated or enhanced. Drag a comparison slider, or open any image full size.
挑戰
A near-closed gap may occupy very few pixels even when the outside tool outline is sharp.
Burrs, jaw angle and acceptable serrations can interrupt the light path or change which edge is found.
解決方案
The source identifies a blue side backlight for inspecting a plier gap. The capture shows contrast, without supplying a numerical gap result.
Use the proposed narrower macro field on a representative jaw region. Determine the smallest required opening and calibrate the selected edge method before turning it into a gauge.
工作原理
- 1
Transmitted light emphasizes the outline and any open path between the jaws rather than relying on the jaw finish.
- 2
A visible line cannot establish a specific clearance, contact pressure or cutting performance.
Lighting application-lab catalog capture
您可以檢查的證據
The tool-tip outline and a faint narrow gap-like light line are visible.
The catalog labels nipper-plier gap inspection with a blue LS-2FS100100.
No source gap dimension, jaw-load condition, camera scale, calibrated result or tool-function test is reported.
從影像對比到生產決策
您需要驗證的事項
- 01
Define the jaw condition
Specify load, closure state and the actual region where clearance matters.
- 02
Challenge the smallest gap
Use known gaps and accepted burr or serration variation near the reject limit.
- 03
Check the gauge process
Validate calibration, repeatable placement and the edge algorithm independently of tool-function tests.
From the demo to your test bench
Parts in this setup
光源已測試
LS-2FS100100

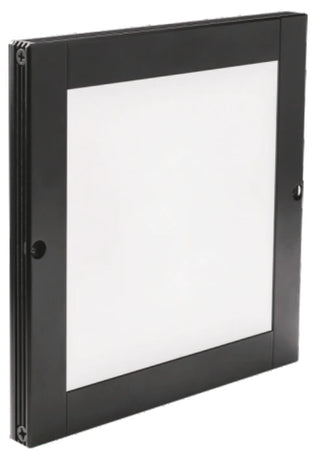

100 x 100 mm 側向背光源 (LS-2FS100100)
Blue LS-2FS100100 named in the nipper-plier gap example. Printed 100 × 100 mm emitting area and 132 × 132 × 10.5 mm housing.
$109.00
在所提出的設定中
相機推薦選擇
MV-CS050-10GM(NPOE)
Hikrobot MV-CS050-10GM(NPOE) 5 MP GigE 面陣相機，IMX264，Gen 2 基本版，單色，無 PoE
5 MP monochrome global-shutter camera proposed for a contrast trial. Confirm field, sampling, exposure and algorithm on the actual application.
$819.00
在所提出的設定中
鏡頭推薦選擇
LS-KF3528M-ML
35mm, F2.8, 1.1", C-mount, 微距鏡頭 (59 mm (-0.7X) 至 150 mm (-0.25X)) (LS-KF3528M-ML)
Proposed 35 mm C-mount macro lens at its printed 0.25x magnification / 150 mm working-distance pair. The proposed 2448 × 2048 sensor with 3.45 µm pixels gives a derived 33.7824 × 28.2624 mm field; confirm focus, coverage and residual distortion on the real sample.
$339.00
在所提出的設定中
Camera test station推薦選擇
LS-BT-XZ-G-6-6045
相機支架，含 XZ 調整及玻璃托盤，高度 600 mm (LS-BT-XZ-G-6-6045)
600 mm column, 600 × 450 mm breadboard, XZ adjustment, glass tray and two lighting holders as listed. Proposed bench fixture; confirm loads, travel and camera/lens clamps.
$359.00
在所提出的設定中
"Tested" 標示來源中指定的零件。"Our pick" 是建議的替代或輔助零件。下訂前請確認顏色、光學元件、控制器、電源、電纜和安裝方式。
設定
| Tested light | LS-2FS100100, blue |
|---|---|
| Source camera / lens | Not specified in the source image caption; proposed parts below |
| Proposed lens point | 0.25x at 150 mm, printed lens pair |
| Derived proposed field | 33.7824 × 28.2624 mm = sensor dimensions / 0.25x; not a source test field |
| Emitting area (printed) | 100 × 100 mm |
| Panel housing (printed) | 132 × 132 × 10.5 mm |
| Source gap value | Not supplied |
| Mounting (proposed) | LS-BT-XZ-G-6-6045; 600 mm column, 600 × 450 mm base, glass tray and two included lighting holders |
有目的地安裝光學元件

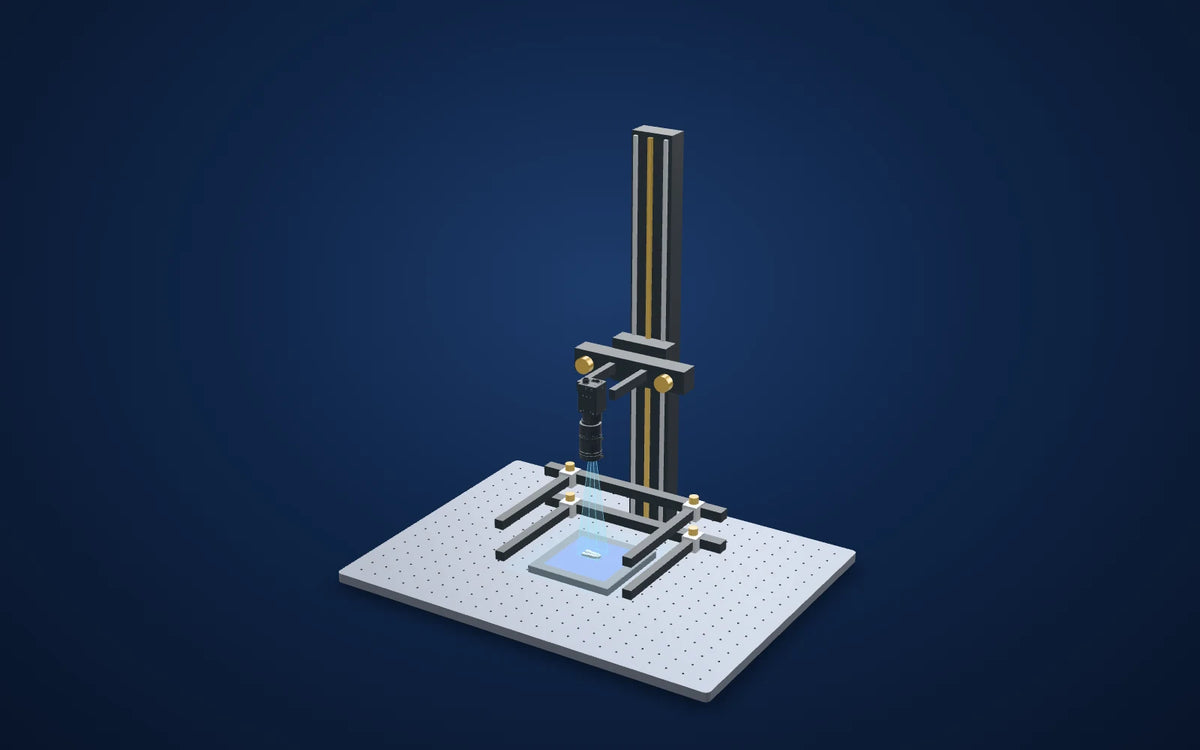

The station is an optical test bench, with its two lighting holders included in the catalog listing. The 3D column and base follow the published height and footprint. Carriages, clamps and part supports are schematic: confirm camera screw pattern, lens support, light fasteners, permissible load and actual travel before ordering.
完成電氣系統
Select a controller against the exact light voltage, drive mode and power, then confirm camera data/power/I/O cables and a suitable PC. These are not silently added to the proposed optical kit.
Build this system
Start from this setup, adapt it to your part.
The configurator opens with this study's camera, lens, light and station picked. Swap any part, check fit and price, then buy or ask for a quote.
Camera and available lens CAD are published models. Lens and light envelopes use printed dimensions. The linked station uses its published base size and column height; carriage, brackets, fittings, parts and spacing are illustrative. Confirm load, travel, fasteners and clearances before ordering. Light paths explain the arrangement and do not simulate optical performance. Representative part geometry is illustrative, not reconstructed inspection evidence. The specimen and lighting angle are representative, not dimensions or settings recovered from the source capture.
