How to choose a telecentric lens遠心鏡頭與雙遠心鏡頭在整個景深內保持倍率恆定，因此無論零件位於何處，測量尺寸均相同。請根據倍率 (感光元件尺寸 / 視野)、工作距離以及您使用的最大感光元件來選擇。
依感測器尺寸選購： 4/3 英吋遠心鏡頭 · 1.1 英吋遠心鏡頭 · 1 英吋遠心鏡頭 · 2/3 英吋遠心鏡頭 · 1/1.8 英吋遠心鏡頭 · 1/2 英吋遠心鏡頭 · 1/2.5 英吋遠心鏡頭 · APS-C 遠心鏡頭 · APS-H 遠心鏡頭 · 全片幅遠心鏡頭
依卡口選購： F-mount 遠心鏡頭 · M58-mount 遠心鏡頭 · M42-mount 遠心鏡頭 · M72-mount 遠心鏡頭
按倍率選購： 0.1x 遠心鏡頭 · 0.2x 遠心鏡頭 · 0.3x 遠心鏡頭 · 0.4x 遠心鏡頭 · 0.5x 遠心鏡頭 · 0.6x 遠心鏡頭 · 0.7x 遠心鏡頭 · 0.8x 遠心鏡頭 · 1x 遠心鏡頭 · 1.5x 遠心鏡頭 · 2x 遠心鏡頭 · 2.5x 遠心鏡頭 · 3x 遠心鏡頭 · 4x 遠心鏡頭 · 6x 遠心鏡頭
產品

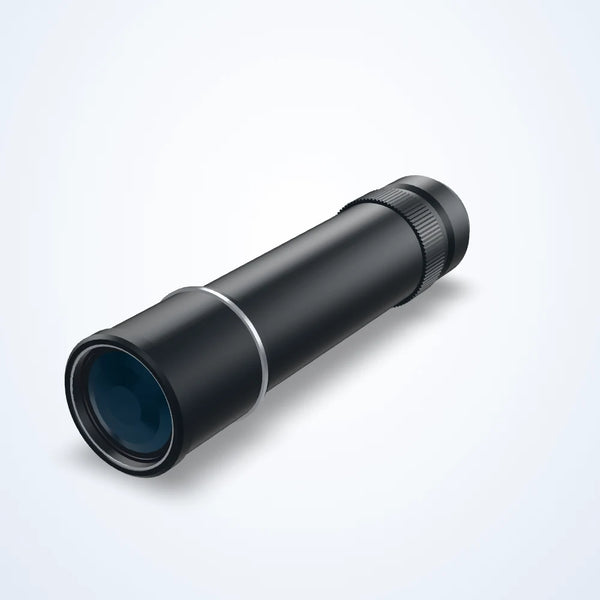

0.5x liquid-focus telecentric lens, WD 110-120 mm, 2/3", C-mount
LS-TCL-1262
- 倍率 0.5x
- 安裝 C-mount
- 感測器 2/3"
$2,400.00
3-4 週內出貨
0.4x liquid-focus telecentric lens, WD 100-120 mm, 2/3", C-mount
LS-TCL-1252
- 倍率 0.4x
- 安裝 C-mount
- 感測器 2/3"
$2,400.00
3-4 週內出貨
1.75x liquid-focus telecentric lens, WD 100-120 mm, 2/3", C-mount
LS-TCL-1280
- 倍率 1.75x
- 安裝 C-mount
- 感測器 2/3"
$2,400.00
3-4 週內出貨
0.5x liquid-focus telecentric lens, WD 100-120 mm, 2/3", C-mount
LS-TCL-1261
- 倍率 0.5x
- 安裝 C-mount
- 感測器 2/3"
$2,400.00
3-4 週內出貨
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-12230.067x 雙遠心鏡頭，工作距離 318 mm，2/3"
| 0.067x | C-mount | 2/3" | 318±5 mm | F4.9 | dia. 170 mm | $3,000.00 | 3-4 週內出貨 | |

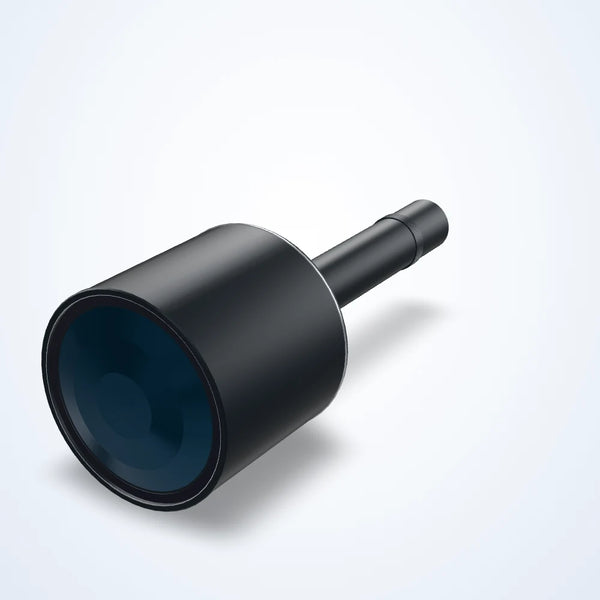

 LS-TCL-12250.084x 雙遠心鏡頭，工作距離 288 mm，2/3"
| 0.084x | C-mount | 2/3" | 288±5 mm | F4.9 | dia. 136 mm | $2,785.00 | 3-4 週內出貨 | |
 LS-TCL-12620.5x liquid-focus telecentric lens, WD 110-120 mm, 2/3", C-mount
| 0.5x | C-mount | 2/3" | 110-120 mm | F10 | - | $2,400.00 | 3-4 週內出貨 | |
|
LS-TCL-12934x 液態對焦遠心鏡頭，WD 62.8 mm，2/3"，C-mount
| 4.0x | C-mount | 2/3" | 62.778 mm | F17 | - | $2,500.00 | 3-4 週內出貨 | |
|
LS-TCL-12520.4x liquid-focus telecentric lens, WD 100-120 mm, 2/3", C-mount
| 0.4x | C-mount | 2/3" | 100-120 mm | F6.5 | - | $2,400.00 | 3-4 週內出貨 | |
|
LS-TCL-12801.75x liquid-focus telecentric lens, WD 100-120 mm, 2/3", C-mount
| 1.75x | C-mount | 2/3" | 100-120 mm | F13 | - | $2,400.00 | 3-4 週內出貨 | |

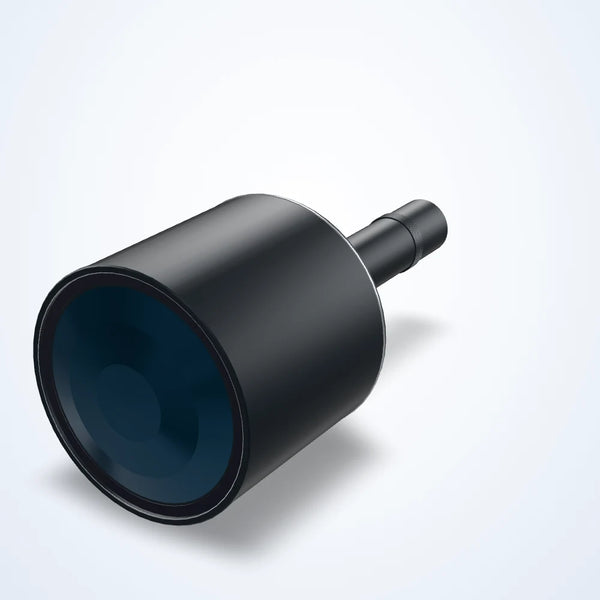

 LS-TCL-12240.076x 雙遠心鏡頭，工作距離 300 mm，2/3"
| 0.076x | C-mount | 2/3" | 300±5 mm | F4.9 | dia. 150 mm | $2,200.00 | 3-4 週內出貨 | |
|
LS-TCL-12610.5x liquid-focus telecentric lens, WD 100-120 mm, 2/3", C-mount
| 0.5x | C-mount | 2/3" | 100-120 mm | F10 | - | $2,400.00 | 3-4 週內出貨 | |
 LS-TCL-12280.106x 雙遠心鏡頭，工作距離 258 mm，2/3"
| 0.106x | C-mount | 2/3" | 258±4 mm | F4.9 | dia. 100 mm | $1,265.00 | 3-4 週內出貨 | |

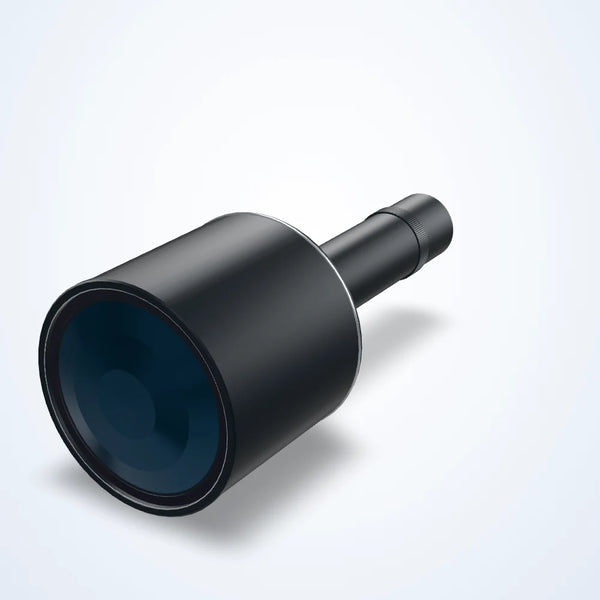

 LS-TCL-12270.104x 雙遠心鏡頭，工作距離 263 mm，2/3"
| 0.104x | C-mount | 2/3" | 263±4 mm | F4.9 | dia. 100 mm | $1,600.00 | 3-4 週內出貨 | |

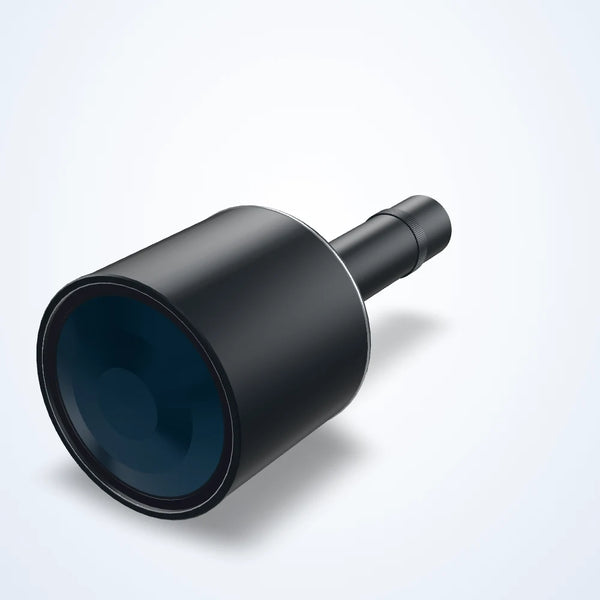

 LS-TCL-12260.095x 雙遠心鏡頭，工作距離 273 mm，2/3"
| 0.095x | C-mount | 2/3" | 273±5 mm | F4.9 | dia. 120 mm | $1,705.00 | 3-4 週內出貨 | |

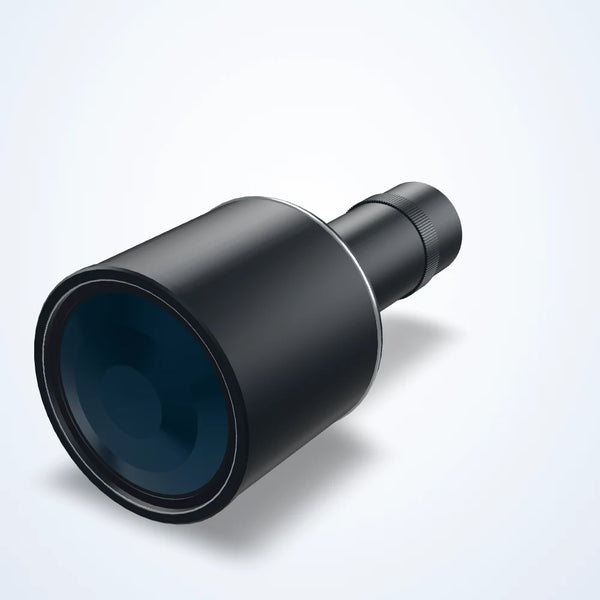

 LS-TCL-12300.142x 雙遠心鏡頭，工作距離 228 mm，2/3"
| 0.142x | C-mount | 2/3" | 228±4 mm | F4.9 | dia. 80 mm | $1,210.00 | 3-4 週內出貨 | |

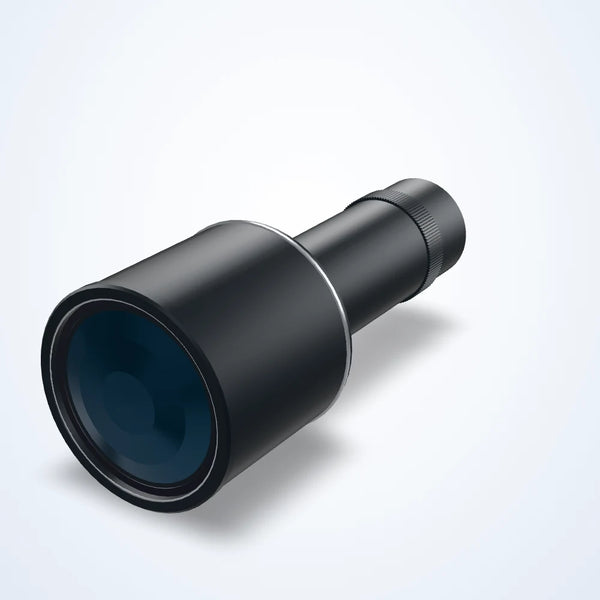

 LS-TCL-12330.178x 雙遠心鏡頭，工作距離 158 mm，2/3"
| 0.178x | C-mount | 2/3" | 158±3 mm | F4.9 | dia. 64 mm | $880.00 | 3-4 週內出貨 | |

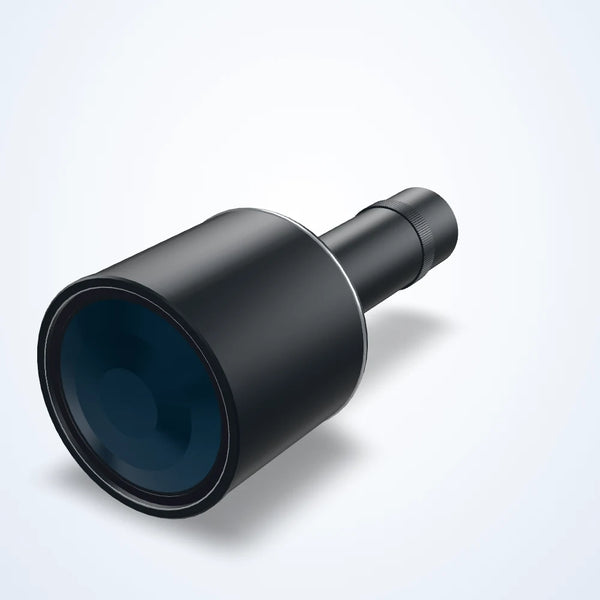

 LS-TCL-12290.127x 雙遠心鏡頭，工作距離 208 mm，2/3"
| 0.127x | C-mount | 2/3" | 208±3 mm | F4.9 | dia. 90 mm | $1,210.00 | 3-4 週內出貨 | |

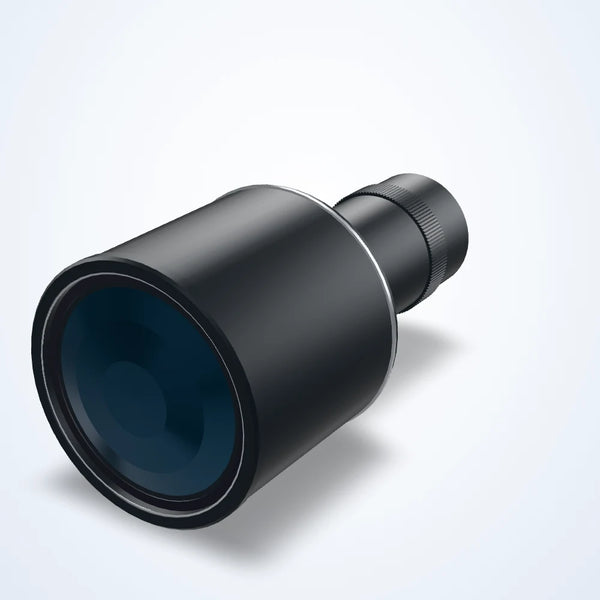

 LS-TCL-12320.166x 雙遠心鏡頭，工作距離 173 mm，2/3"
| 0.166X | C-mount | 2/3" | 173±3 mm | F3.3 | 66 Φmm | $825.00 | 3-4 週內出貨 | |
 LS-TCL-12450.3x 遠心鏡頭，工作距離 180 mm，2/3"，C-mount
| 0.3x | C-mount | 2/3" | 180±2 mm | F10 | - | $800.00 | 3-4 週內出貨 | |

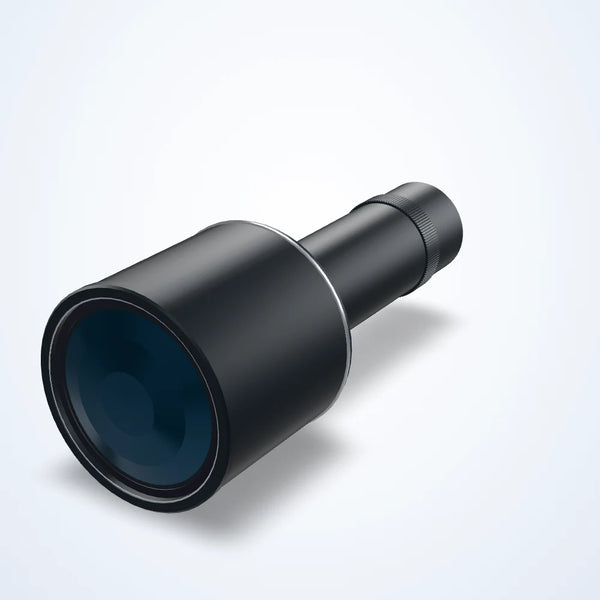

 LS-TCL-12310.158x 雙遠心鏡頭，工作距離 178 mm，2/3"
| 0.158x | C-mount | 2/3" | 178±3 mm | F4.9 | dia. 72 mm | $1,045.00 | 3-4 週內出貨 | |

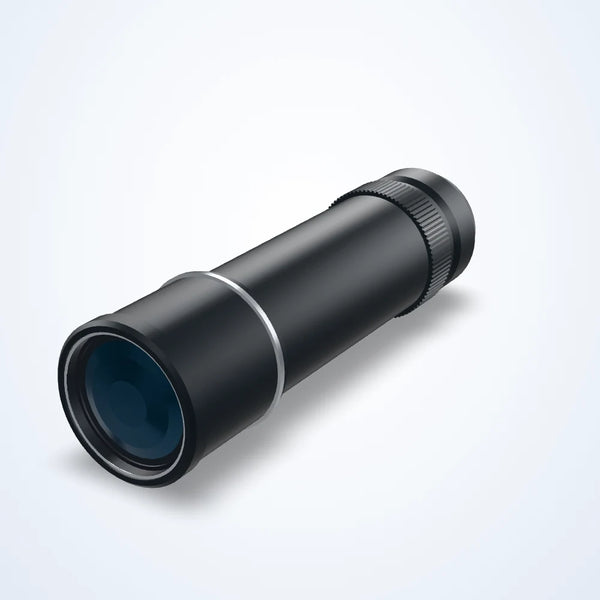

 LS-TCL-12600.5x 雙遠心鏡頭，工作距離 65 mm，2/3"，同軸（LS-TCL-1260）
| 0.5X | C-mount | 2/3" | 65±1 mm | F5.0 | 22 Φmm | $780.00 | 3-4 週內出貨 | |
 LS-TCL-12410.3x 遠心鏡頭，2/3"，0.3x 同軸
| 0.3x | C-mount | 2/3" | 220±3 mm | F13.6 | - | $830.00 | 3-4 週內出貨 | |

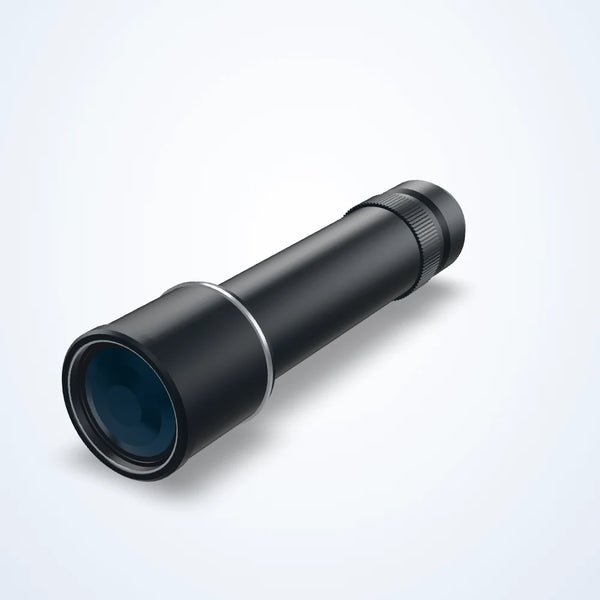

 LS-TCL-12480.4x 遠心鏡頭，2/3"，C-mount（LS-TCL-1248）
| 0.4x | C-mount | 2/3" | 110±2 mm | F7 | - | $740.00 | 3-4 週內出貨 | |

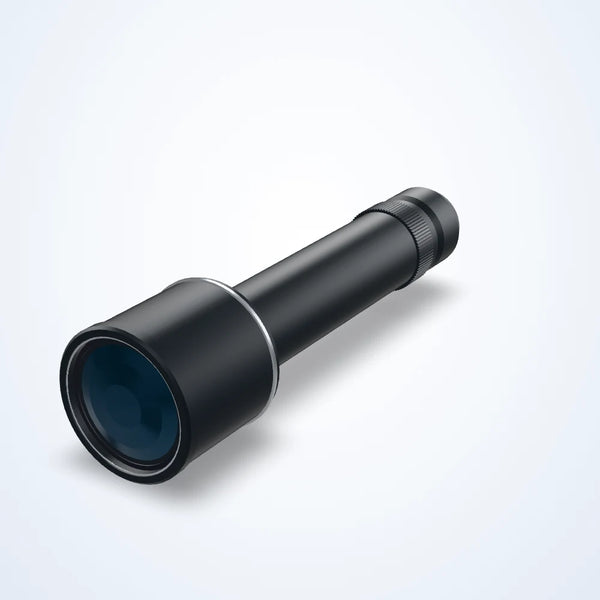

 LS-TCL-12460.3x 雙遠心鏡頭，工作距離 220 mm，2/3"
| 0.3x | C-mount | 2/3" | 220±3 mm | F13.6 | - | $740.00 | 3-4 週內出貨 | |

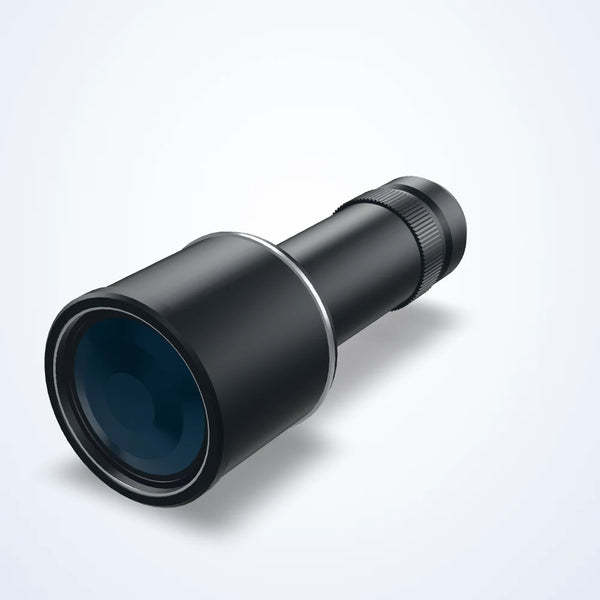

 LS-TCL-12420.3x 遠心鏡頭，2/3"，C-mount，感光元件 11.0 mm 2/3''
| 0.3x | C-mount | 2/3" | 110±2 mm | F5.6 | - | $740.00 | 3-4 週內出貨 | |

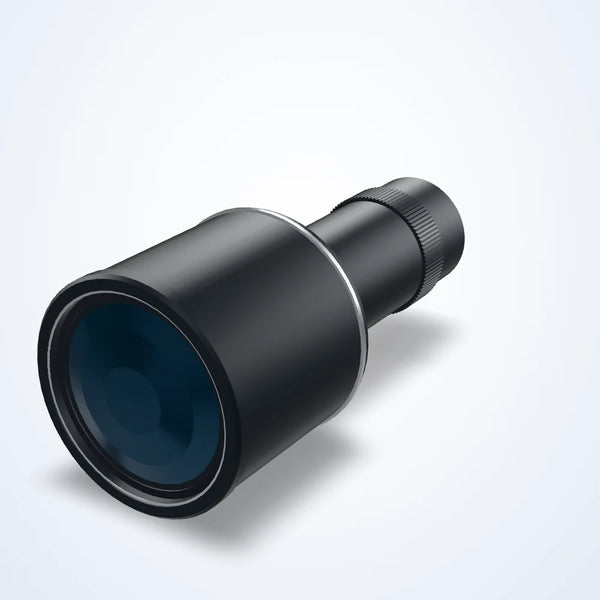

 LS-TCL-12380.238x 雙遠心鏡頭，工作距離 138 mm，2/3"
| 0.238x | C-mount | 2/3" | 138±3 mm | F6.7 | dia. 48 mm | $740.00 | 3-4 週內出貨 | |
 LS-TCL-12510.4x 雙遠心鏡頭，工作距離 85 mm，2/3"，同軸（LS-TCL-1251）
| 0.4X | C-mount | 2/3" | 85±2 mm | F4.5 | 27.5 Φmm | $715.00 | 3-4 週內出貨 |
How to choose a telecentric lens
A telecentric lens keeps the image size of the part constant when the part moves closer or farther within the depth of field, and removes perspective, so edges and holes are measured at their true size. Choose by magnification, sensor and working distance.
1. Magnification = sensor size / field of view
The field of view is the sensor size divided by the magnification. Pick the magnification that fits the part with a small margin, or let the telecentric lens calculator work it out for your sensor and part:
| Magnification | Field of view, 2/3-inch sensor (8.8 x 6.6 mm) | Field of view, 1.1-inch sensor (14.1 x 10.3 mm) |
|---|---|---|
| 0.1x | 88 x 66 mm | 141 x 103 mm |
| 0.2x | 44 x 33 mm | 70.5 x 51.5 mm |
| 0.3x | 29.3 x 22 mm | 47 x 34.3 mm |
| 0.5x | 17.6 x 13.2 mm | 28.2 x 20.6 mm |
| 0.8x | 11 x 8.3 mm | 17.6 x 12.9 mm |
| 1x | 8.8 x 6.6 mm | 14.1 x 10.3 mm |
| 2x | 4.4 x 3.3 mm | 7.1 x 5.2 mm |
| 4x | 2.2 x 1.7 mm | 3.5 x 2.6 mm |
2. Sensor format
The lens must be rated for the camera's sensor format or larger, or the corners go dark. Larger sensors need larger (and longer) lenses with F-mount or M58 / M72 mounts.
3. Object-side or bi-telecentric
Object-side telecentric lenses keep the magnification constant as the part moves. Bi-telecentric lenses are telecentric on the camera side too, so small focus changes and sensor tilt do not change the size either: the choice for the highest measuring accuracy.
4. Working distance, depth of field, front size
Check the working distance against the space in the machine, and the depth of field against how much the part height varies. The front of the lens must be larger than the field of view - a telecentric lens only sees what fits in front of it.
5. Lighting
For silhouettes, pair the lens with a collimated backlight: parallel light gives the sharpest edges. For surface features use a coaxial light that fits the lens.
