Hikrobot MV-CA023-10GM 2.3MP 面阵相机, GigE, IMX249, 单色
  • Hikrobot MV-CA023-10GM 2.3MP 面阵相机, GigE, IMX249, 单色
  • Hikrobot MV-CA023-10GM 2.3MP 面阵相机, GigE, IMX249, 单色

面阵相机

Hikrobot MV-CA023-10GM 2.3MP 面阵相机, GigE, IMX249, 单色

型号 MV-CA023-10GMHikrobot

  • 分辨率1920 × 1200
  • 传感器CMOS，全局快门
  • 速度41 fps @ 1920 × 1200
  • 镜头接口C-mount
  • 单色 / 彩色单色
  • 像素尺寸5.86 μm × 5.86 μm
$459.00
List price

即将停产：制造商正在逐步淘汰此型号，因此库存有限。请向我们咨询可用性或后续型号。

2-3 周内发货

0.2 kg 运输重量

美国不可用。可配送至其他国家。

咨询工程师Browse 面阵相机

lumaspecvision.com/zh-hans/products/lumaspec-mv-ca023-10gm

MV-CA023-10GM：分辨率 1920 x 1200；传感器类型 CMOS, 全局快门；传感器尺寸 1/1.2"；最大帧率 41 fps @ 1920 x 1200；单色/彩色单色。

Hikrobot MV-CA023-10GM 2.3MP 面阵相机, GigE, IMX249, 单色。采用 GigE 接口，最大传输距离可达 100 米（无需中继）。支持自动和手动调节曝光控制、LUT、Gamma校正等。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全结账 Shipping, warranty, support and payment details
  • 全球追踪物流Tracked UPS or DHL
  • 至少 3 年保修涵盖材料和工艺缺陷
  • 包含专业机器视觉支持来自我们的工程团队，包括持证专业工程师
  • 批量折扣与 30 净价适用于已批准的商业账户；欢迎采购订单
  • 由 Shopify 提供安全结算信用卡、PayPal、Shop Pay 或 Google Pay

90 天退货 未使用的商品，自交付之日起计算；美国境内免费退货标签；无重新入库费 Return policy

规格

通用

型号MV-CA023-10GM
品牌Hikrobot
兼容性GigE Vision V2.0, GenICam

传感器与成像

传感器类型CMOS，全局快门
传感器型号Sony IMX249
像素尺寸5.86 μm × 5.86 μm
传感器尺寸1/1.2"
分辨率1920 × 1200
最大帧率41 fps @ 1920 × 1200
动态范围70 dB
SNR40 dB
增益0 dB 至 20 dB
曝光时间34微秒至10秒
曝光模式关闭/单次/连续曝光模式
像素格式单色 8/10/10p/12/12p
像素合并支持1 × 1，1 × 2，2 × 1，1 × 4，4 × 1，2 × 2，2 × 4，4 × 2，4 × 4
降采样支持1 × 1，1 × 2，2 × 1，1 × 4，4 × 1，2 × 2，2 × 4，4 × 2，4 × 4
图像镜像支持水平和垂直镜像图像输出
图像缓冲区128 MB
单色/彩色单色

接口和I/O

数据接口千兆以太网，兼容快速以太网
数字 I/O6 针 Hirose 连接器提供电源和 I/O，包括光电隔离输入 × 1（Line 0）、光电隔离输出 × 1（Line 1）、双向非隔离 I/O × 1（Line 2）。
客户端软件符合 GigE Vision 协议的 MVS 或第三方软件

环境和合规性

防护等级IP30（在镜头正确安装和接线条件下）
温度工作温度：0 °C 至 50 °C（32 °F 至 122 °F）；存储温度：–30 °C 至 70 °C（–22 °F 至 158 °F）
湿度20% RH 至 80% RH（无冷凝）
认证CE, RoHS, KC

计算中

操作系统32/64 位 Windows 7/10，32/64 位 Linux

电气

电源12 VDC，支持 PoE
功耗典型值 2.9 W @ 12 VDC

机械

镜头接口C-mount
尺寸29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
重量约 68 g (0.15 磅)
运输重量（预估）0.20 kg

Engineering data

Field of view and resolution with the MV-CA023-10GM

传感器区域11.25 × 7.03 mm1/1.2" optical format
Lens image circle needed≥ Ø 13.3 mmC-mount
像素间距5.86 µm1920 x 1200 px
Image data at max frame rate94.5 MB/sCalculated: 41 fps × 1920 × 1200 px at 8 bit · GigE carries 125 MB/s nominal
With a 16 mm lens at 500 mm352 × 220 mm0.183 mm per pixel
动态范围70 dB
SNR40 dB
功耗2.9 Wtyp. at 12 V DC
快门全球
Exposure range34 µs 至 10 s
重量68 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
镜头At 300 mmAt 500 mmAt 1000 mm
8 mm422 × 264 mm0.22 mm per pixel703 × 439 mm0.366 mm per pixel1406 × 879 mm0.732 mm per pixel
12 mm281 × 176 mm0.146 mm per pixel469 × 293 mm0.244 mm per pixel938 × 586 mm0.488 mm per pixel
16 mm211 × 132 mm0.11 mm per pixel352 × 220 mm0.183 mm per pixel703 × 439 mm0.366 mm per pixel
25 mm135 × 84.4 mm0.07 mm per pixel225 × 141 mm0.117 mm per pixel450 × 281 mm0.234 mm per pixel
35 mm96.4 × 60.3 mm0.05 mm per pixel161 × 100 mm0.084 mm per pixel321 × 201 mm0.167 mm per pixel
50 mm67.5 × 42.2 mm0.035 mm per pixel112 × 70.3 mm0.059 mm per pixel225 × 141 mm0.117 mm per pixel

薄透镜近似公式：视场 ≈ 传感器尺寸 × 工作距离 ÷ 焦距。物体像素尺寸 = 视场宽度 ÷ 水平像素；特征应跨越约 3-4 pixels 才能可靠测量。

Compatible parts

适配此部件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $2,110.00

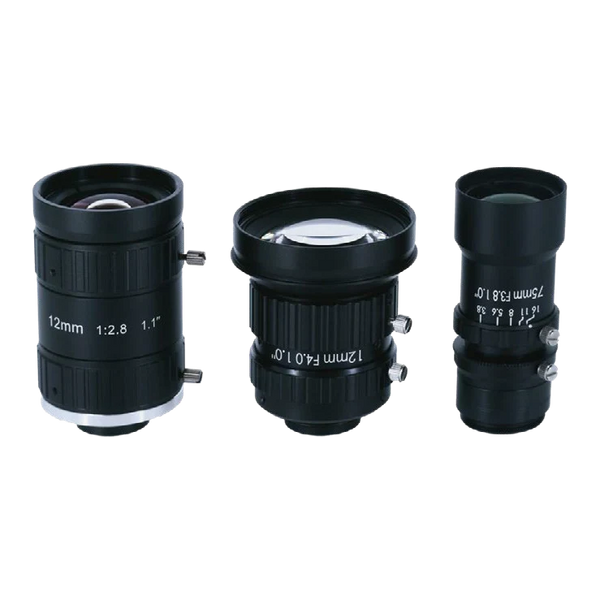

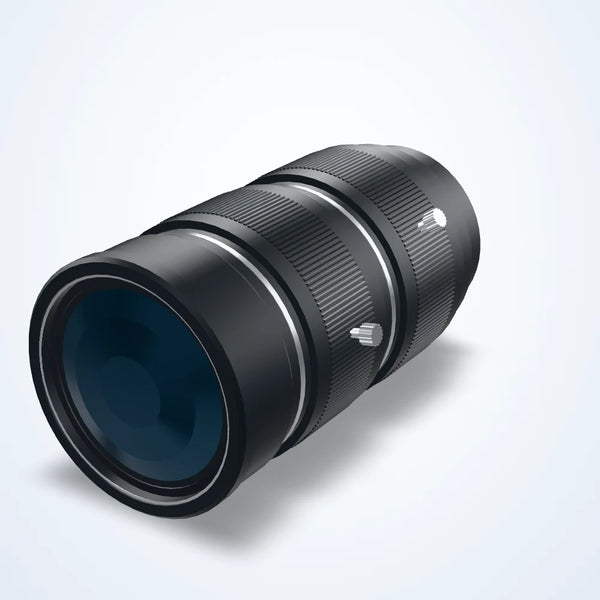

适用于此 C-mount 相机的镜头

This camera's 13.3 mm sensor diagonal uses 94 % of the lens's 14.2 mm image circle

This camera's 13.3 mm sensor diagonal uses 83 % of the lens's 16 mm image circle

This camera's 13.3 mm sensor diagonal uses 83 % of the lens's 16 mm image circle

This camera's 13.3 mm sensor diagonal uses 83 % of the lens's 16 mm image circle

This camera's 13.3 mm sensor diagonal uses 83 % of the lens's 16 mm image circle

This camera's 13.3 mm sensor diagonal uses 83 % of the lens's 16 mm image circle

电缆和图像采集卡

购买前

Questions about the MV-CA023-10GM

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the MV-CA023-10GM?

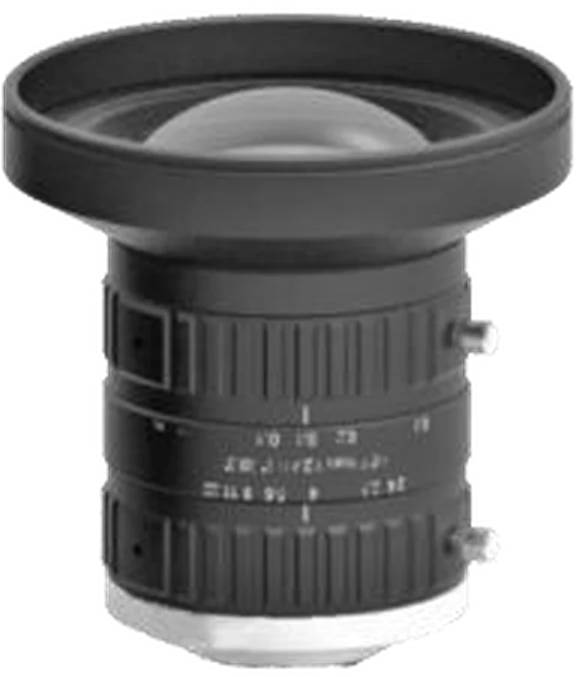

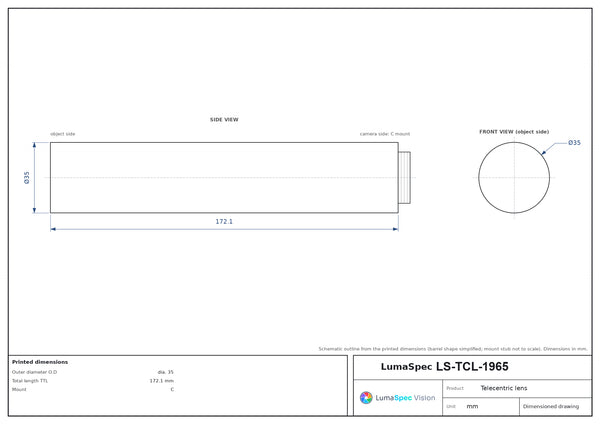

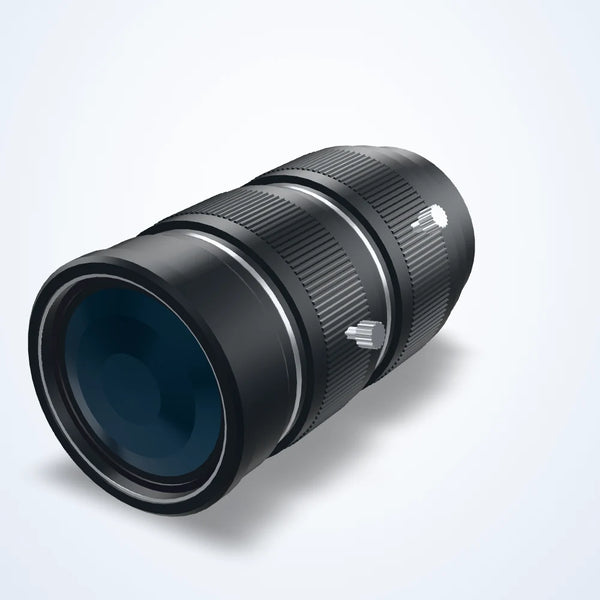

C-mount lenses whose image circle covers its sensor diagonal (about 13.3 mm): LS-TCL-1965 (1x), LS-FFL-0371 (12 mm), LS-FFL-1259 (75 mm) and LS-FFL-0602 (8.5 mm).

What data rate does the MV-CA023-10GM need over GigE?

About 94.5 MB/s at its printed 41 fps at 1920 x 1200 (8 bits per pixel, calculated), about 76 % of the nominal 125 MB/s GigE link.

Which cables does the MV-CA023-10GM take?

Fit-tested for its GigE interface: LS-CBL-0195 (3 m), LS-CBL-0196 (5 m), LS-CBL-0072 (1 m), LS-CBL-0084 (1 m) and LS-CBL-0107 (1 m).

How does the MV-CA023-10GM connect?

Printed: Data interface: Gigabit Ethernet, compatible with Fast Ethernet.

What I/O does the MV-CA023-10GM have?

Printed: Digital I/O: 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).

CA系列 GigE 面阵相机 系列的其他型号

查看所有19型号

How this model compares

  • Same 1920 × 1200 sensor as MV-CA023-10GC (Color) and MV-CA023-10UM (USB 3.0) and 5 more; this one: Mono, GigE.
  • Full-resolution 8-bit frames at 41 fps work out to about 94 MB/s, 76% of the 125 MB/s a 1 Gbit/s link carries.
  • Compared with MV-CA050-10GM: power consumption Typ. 2.9 W @ 12 VDC here, Typ. 3.2 W @ 12 VDC there; resolution 1920 x 1200 here, 2448 x 2048 there.
型号分辨率SpeedMono / colour价格库存状况链接
MV-CA017-10GM1608 x 110468.5 fps @ 1608 x 1104Mono$1,419.00 报价 2-3 周内发货 View
MV-CA017-10GC1608 x 110468.5 fps @ 1608 x 1104Color$1,419.00 报价 2-3 周内发货 View
MV-CA020-10GM1624 x 124060 fps @ 1624 x 1240Mono$429.00 报价 2-3 周内发货 View
MV-CA020-10GC1624 x 124060 fps @ 1624 x 1240Color$429.00 报价 2-3 周内发货 View
MV-CA023-10GM本型号1920 x 120041 fps @ 1920 x 1200Mono$459.00 报价 2-3 周内发货
MV-CA023-10GC1920 x 120041 fps @ 1920 x 1200Color$459.00 报价 2-3 周内发货 View
MV-CA050-10GM2448 x 204824.1 fps @ 2448 x 2048Mono$579.00 报价 2-3 周内发货 View
MV-CA050-12GC2448 x 204824.1 fps @ 2448 x 2048Color$679.00 报价 2-3 周内发货 View
MV-CA050-20GM2592 x 204822 fps @ 2592 x 2048Mono$699.00 报价 2-3 周内发货 View
