双远心镜头，适用于1/2.3"相机，0.027x，工作距离465 mm，1/2"，C-mount（LS-TCL-2555）
  • 双远心镜头，适用于1/2.3"相机，0.027x，工作距离465 mm，1/2"，C-mount（LS-TCL-2555）
  • LS-TCL-2555 尺寸 (mm)

远心镜头

双远心镜头，适用于1/2.3"相机，0.027x，工作距离465 mm，1/2"，C-mount（LS-TCL-2555）

型号 LS-TCL-2555

  • 放大倍率0.027x
  • 接口C-mount
  • 传感器1/2"
  • 工作距离465±6 mm
  • 视场Ø 300 mm
$8,689.00
List price

按报价销售：申请报价，我们将确认价格、交货期和批量价格。

2-3 周内发货

65.2 kg 运输重量

将零件添加到报价列表中，我们将回复价格、交货期和批量定价。

lumaspecvision.com/zh-hans/products/lumaspec-ls-tcl-2555

请求报价

双远心镜头，适用于1/2.3"相机，0.027x，工作距离465 mm，1/2"，C-mount（LS-TCL-2555）LS-TCL-2555

通过电子邮件发送价格、交货期和批量价格，通常在一天内完成。

添加电话、交货日期或备注（可选）

无需账户。我们将在一个工作日内回复。

双远心镜头系列，矩阵设计，成像质量极高；标准视场角 26 至 240 mm。每支镜头附带成像质量测试报告。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全结账 Shipping, warranty, support and payment details
  • 全球追踪物流Tracked UPS or DHL
  • 至少 3 年保修涵盖材料和工艺缺陷
  • 包含专业机器视觉支持来自我们的工程团队，包括持证专业工程师
  • 批量折扣与 30 净价适用于已批准的商业账户；欢迎采购订单
  • 由 Shopify 提供安全结算信用卡、PayPal、Shop Pay 或 Google Pay

90 天退货 未使用的商品，自交付之日起计算；美国境内免费退货标签；无重新入库费 Return policy

规格

通用

型号LS-TCL-2555

光学

畸变（最大%）<0.1
远心度（最大 °）<0.1
放大倍率 (x)0.027
物方视场 (直径 mm)300
工作距离 (mm)465±6
最佳光圈 (F/#)4.2
MTF30 (lp/mm)>205
景深（mm）±603@F11
9J003 (6.44x4.62传感器) 视场 (毫米 x 毫米)238.5x171.1
兼容远心 LED 照明LS-CLM-0092

传感器与成像

传感器幅面1/2"
最大传感器尺寸（直径 mm）8

接口和I/O

I/O 长度 (mm)1105±6

机械

接口C-Mount
长度（mm）622.2
重量 (kg)46.5

Engineering data

Field of view with the LS-TCL-2555

像圆Ø 8 mmCovers sensors up to 1/2"
放大倍率0.027×
工作距离465 mm
畸变< 0.1 %
Total length622.2 mm
景深± 603 mmat F11
MTF> 205 lp/mmat 30 % contrast
重量46.5 kg
Field of view (width × height) by sensor format
传感器幅面0.027×
1/3"4.8 × 3.6 mm178 × 133 mm
1/2.9"4.98 × 3.74 mm184 × 139 mm
1/2.5"5.76 × 4.29 mm213 × 159 mm
1/2"6.4 × 4.8 mm237 × 178 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

适配此部件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $12,077.00

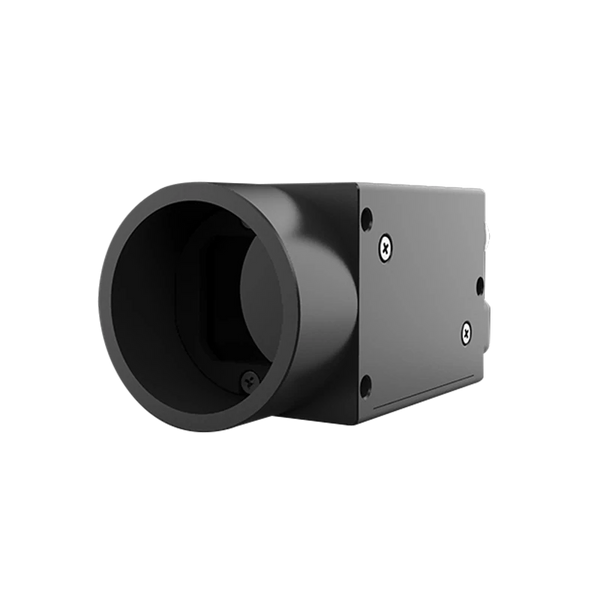

适配此镜头的相机

Its 7.9 mm sensor diagonal uses 99 % of this lens's 8 mm image circle

Its 8 mm sensor diagonal uses 100 % of this lens's 8 mm image circle

Its 8 mm sensor diagonal uses 100 % of this lens's 8 mm image circle

Its 7.9 mm sensor diagonal uses 99 % of this lens's 8 mm image circle

Its 7.8 mm sensor diagonal uses 98 % of this lens's 8 mm image circle

Its 7.7 mm sensor diagonal uses 96 % of this lens's 8 mm image circle

适配器

For CS-mount cameras

Lights for this lens

推荐

购买前

Questions about the LS-TCL-2555

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which cameras does the LS-TCL-2555 cover?

Its image circle (about 8 mm) covers these fit-tested cameras: LS-CMR-0246 (1/2", 1.3 MP), LS-CMR-0418 (1/2", 12 MP), LS-BCM-0050 (1/2") and LS-CMR-0262 (1/2.3", 10.6 MP).

What field of view does the LS-TCL-2555 give?

About 237 x 178 mm on a 1/2" sensor, at its 465 mm working distance (calculated: sensor size / 0.027x magnification).

Does the LS-TCL-2555 need an adapter for C-mount or CS-mount cameras?

Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.

What sensor size is the LS-TCL-2555 made for?

Printed: Sensor format: 1/2"; Max sensor size (dia. mm): 8.

Which light suits the LS-TCL-2555?

Collimated or coaxial lights whose printed beam covers its field of view: LS-CLM-0092 (named by the maker).

用于 1/2.3" 相机的双远心镜头 (LS-TCL-S75) 系列的其他型号

查看所有20型号
  • The largest 长度 in this series (101.9 至 622.2 mm)
  • The lowest 放大倍率 of the 19 models that list it (0.027x 至 0.309x)

How this model compares

  • Compared with LS-TCL-2554: magnification 0.027x here, 0.033x there; working distance 465±6 mm here, 410±5 mm there.
  • Total length 622.2 mm: the longest of the 20 telecentric lenses in the series.
型号长度放大倍率工作距离视场价格库存状况链接
LS-TCL-2539123.1 mm0.167x128±2 mm$1,899.00 2-3 周内发货 View
LS-TCL-2542133.1 mm0.126x187±2 mm$2,269.00 2-3 周内发货 View
LS-TCL-2541144.6 mm0.144x138±2 mm$2,089.00 2-3 周内发货 View
LS-TCL-2544174.6 mm0.111x178±2 mm$2,459.00 2-3 周内发货 View
LS-TCL-2546206.2 mm0.089x208±3 mmØ 90 mm$2,879.00 2-3 周内发货 View
LS-TCL-2549271.1 mm0.067x280±5 mmØ 120 mm$3,619.00 2-3 周内发货 View
LS-TCL-2551321.1 mm0.054x301±4 mm119.2 x 85.5 mm$4,309.00 2-3 周内发货 View
LS-TCL-2554539.6 mm0.033x410±5 mm195.1 x 140.0 mm$6,659.00 报价 2-3 周内发货 View
LS-TCL-2555本型号622.2 mm0.027x465±6 mmØ 300 mm$8,689.00 报价 2-3 周内发货
