1x，工作距离 75 mm，1/2" 远心镜头（LS-TCL-2360）
  • 1x，工作距离 75 mm，1/2" 远心镜头（LS-TCL-2360）

远心镜头

1x，工作距离 75 mm，1/2" 远心镜头（LS-TCL-2360）

型号 LS-TCL-2360

  • 放大倍率1x
  • 接口C-mount
  • 传感器1/2"
  • 工作距离75 mm
  • 光圈16.8
$1,429.00

来自工厂 2021-2022 目录：下单后我们通过电子邮件确认供货情况和交货期；如产品已停产，则取消订单并全额退款。

2-3 周内发货

0.55 kg 运输重量

批量定价，净30条款或正式采购报价？

lumaspecvision.com/zh-hans/products/lumaspec-ls-tcl-2360

请求报价

1x，工作距离 75 mm，1/2" 远心镜头（LS-TCL-2360）LS-TCL-2360

通过电子邮件发送价格、交货期和批量价格，通常在一天内完成。

添加电话、交货日期或备注（可选）

无需账户。我们将在一个工作日内回复。

1x，工作距离 75 mm，1/2" 远心镜头。一览：放大倍率 1x；工作距离 75 mm；最大传感器尺寸 8 mm（1/2"）；像面 f/# 16.8。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全结账 Shipping, warranty, support and payment details
  • 全球追踪物流Tracked UPS or DHL
  • 至少 3 年保修涵盖材料和工艺缺陷
  • 包含专业机器视觉支持来自我们的工程团队，包括持证专业工程师
  • 批量折扣与 30 净价适用于已批准的商业账户；欢迎采购订单
  • 由 Shopify 提供安全结算信用卡、PayPal、Shop Pay 或 Google Pay

90 天退货 未使用的商品，自交付之日起计算；美国境内免费退货标签；无重新入库费 Return policy

规格

通用

型号LS-TCL-2360

光学

放大倍率 (x)1
工作距离 (mm)75
像侧F值16.8

传感器与成像

最大传感器尺寸（直径 mm）8(1/2")

机械

运输重量（预估）0.55 kg
接环 (派生)C-mount，与本系列其他 51 个镜头上的印刷一致

图片显示本系列的代表性型号；具体规格请参阅该型号的参数。

Engineering data

Field of view with the LS-TCL-2360

像圆Ø 8 mmCovers sensors up to 1/2"
放大倍率1×
工作距离75 mm
Field of view at 75 mm6.4 × 4.8 mmCalculated: 1/2" sensor ÷ 1× magnification
Field of view (width × height) by sensor format
传感器幅面1×
1/3"4.8 × 3.6 mm4.8 × 3.6 mm
1/2.9"4.98 × 3.74 mm5 × 3.7 mm
1/2.5"5.76 × 4.29 mm5.8 × 4.3 mm
1/2"6.4 × 4.8 mm6.4 × 4.8 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

适配此部件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $2,087.00

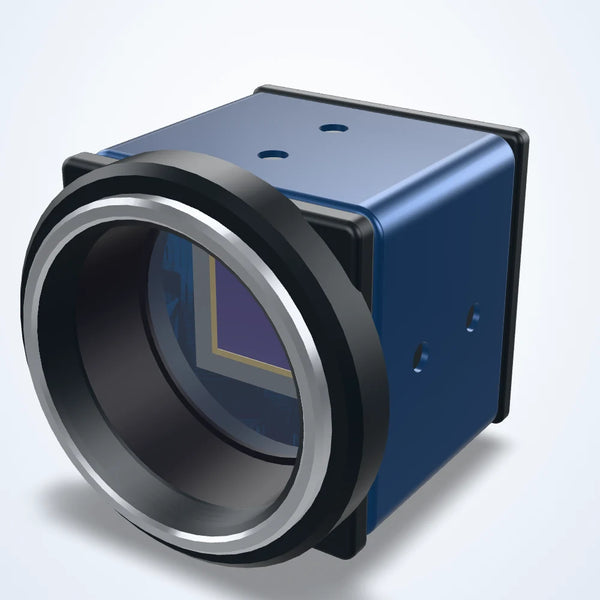

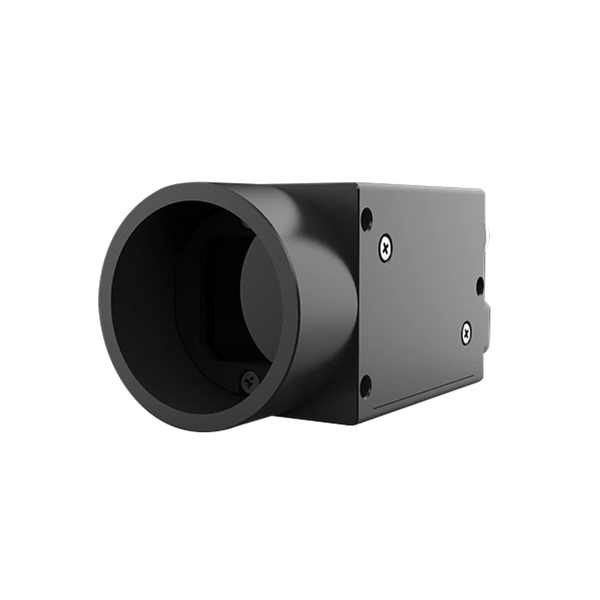

适配此镜头的相机

Its 7.9 mm sensor diagonal uses 99 % of this lens's 8 mm image circle

Its 7.9 mm sensor diagonal uses 99 % of this lens's 8 mm image circle

Its 8 mm sensor diagonal uses 100 % of this lens's 8 mm image circle

Its 8 mm sensor diagonal uses 100 % of this lens's 8 mm image circle

Its 7.8 mm sensor diagonal uses 98 % of this lens's 8 mm image circle

Its 7.7 mm sensor diagonal uses 96 % of this lens's 8 mm image circle

适配器

For CS-mount cameras

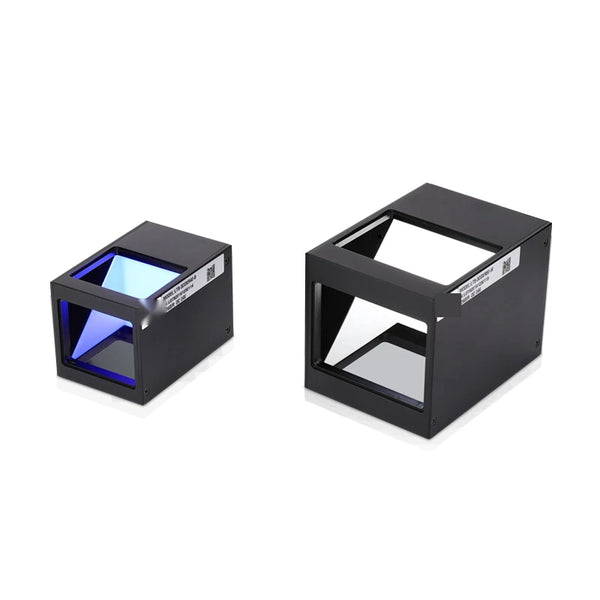

Lights for this lens

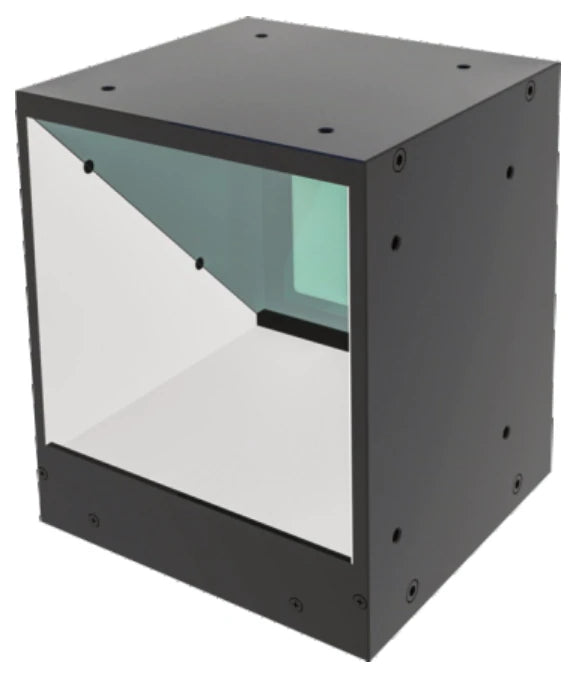

16 x 14.6 mm 同轴光源

LS-CXL-0121

  • 颜色 红色、绿色、蓝色、白色
  • 红光波长 620-630 nm

$109.00

2-3 周内发货

19 x 19 mm 同轴光源

LS-CXL-0122

  • 颜色 红色、绿色、蓝色、白色
  • 红光波长 620-630 nm

$119.00

2-3 周内发货

购买前

Questions about the LS-TCL-2360

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which cameras does the LS-TCL-2360 cover?

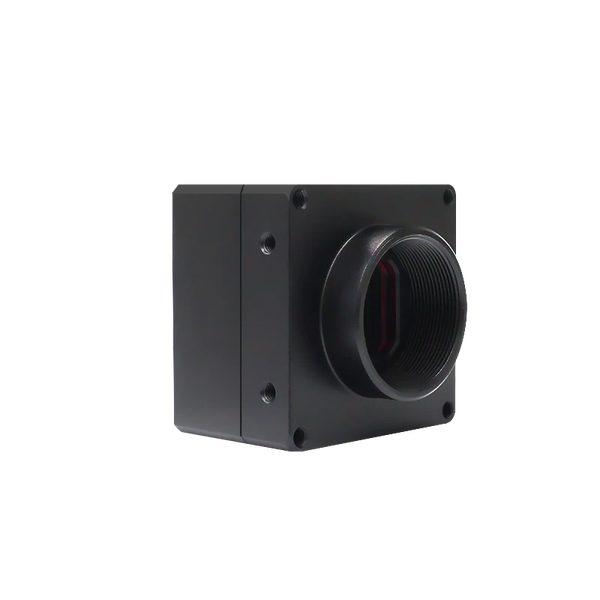

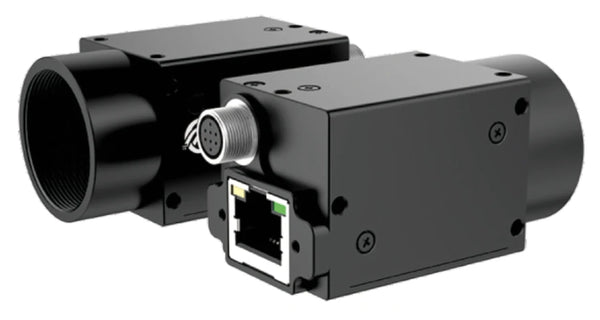

Its image circle (about 8 mm) covers these fit-tested cameras: LS-CMR-0262 (1/2.3", 10.6 MP), LS-CMR-0246 (1/2", 1.3 MP), LS-BCM-0050 (1/2") and LS-CMR-0418 (1/2", 12 MP).

What field of view does the LS-TCL-2360 give?

About 6.4 x 4.8 mm on a 1/2" sensor, at its 75 mm working distance (calculated: sensor size / 1x magnification).

Does the LS-TCL-2360 need an adapter for C-mount or CS-mount cameras?

Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.

What sensor size is the LS-TCL-2360 made for?

Printed: Sensor format: 1/2"; Max sensor size (dia. mm): 8.

Which light suits the LS-TCL-2360?

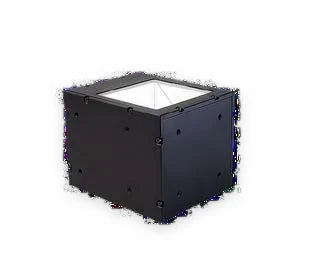

Collimated or coaxial lights whose printed beam covers its field of view: LS-CXL-0057, LS-CLM-0049, LS-CXL-0121 and LS-CXL-0042.

经济型远心镜头 (LS-TCL-S64) 系列的其他型号

查看所有66型号

How this model compares

  • Same specifications as LS-TCL-2361 except the coaxial light port (No here, Yes there) row.
  • Same 1x magnification as LS-TCL-2309 (65 mm WD) and LS-TCL-2310 (65 mm WD); this one: 75 mm WD.
  • Compared with LS-TCL-2362: working distance 75 mm here, 110 mm there; image-side F-number 16.8 here, 11.1 there.
型号放大倍率工作距离光圈Coaxial light port价格库存状况链接
LS-TCL-2343$1,179.00 2-3 周内发货 View
LS-TCL-23390.5x65 mm6.5$1,179.00 2-3 周内发货 View
LS-TCL-23510.8x110 mm16No$1,439.00 2-3 周内发货 View
LS-TCL-23520.8x110 mm16Yes$1,439.00 2-3 周内发货 View
LS-TCL-2360本型号1x75 mm16.8No$1,429.00 2-3 周内发货
LS-TCL-23631x110 mm11.1No$1,429.00 2-3 周内发货 View
LS-TCL-23611x75 mm16.8Yes$1,429.00 2-3 周内发货 View
LS-TCL-23642x110 mm18$1,239.00 2-3 周内发货 View
LS-TCL-23663.5x250 mm73.4Yes$1,239.00 2-3 周内发货 View
