  • 0.687x，工作距离 24 mm，2/3"，C-mount 远心镜头 (LS-TCL-1846)

主图：此型号的尺寸图，来自其印刷尺寸。照片展示了该系列的代表性镜头，而非此确切型号；尺寸和形状因型号而异。

远心镜头

0.687x，工作距离 24 mm，2/3"，C-mount 远心镜头 (LS-TCL-1846)

型号 LS-TCL-1846

  • 放大倍率0.687x
  • 接口C-mount
  • 传感器2/3"
  • 工作距离24±1 mm
  • 光圈4.9
  • 视场Ø 16.6 mm
$1,189.00

2-3 周内发货

0.38 kg 运输重量

批量定价，净30条款或正式采购报价？

lumaspecvision.com/zh-hans/products/lumaspec-ls-tcl-1846

请求报价

0.687x，工作距离 24 mm，2/3"，C-mount 远心镜头 (LS-TCL-1846)LS-TCL-1846

通过电子邮件发送价格、交货期和批量价格，通常在一天内完成。

添加电话、交货日期或备注（可选）

无需账户。我们将在一个工作日内回复。

LS-TCL-1846：放大倍率0.687x，工作距离24±1 mm，理论景深±0.9@F11，传感器格式2/3"。

0.687x，WD 24 mm，2/3"，C-mount 远心镜头。一目了然：放大倍率 0.687x；工作距离 24±1 mm；最大传感器尺寸 11.4 mm（2/3"）；物方视场 16.6 mm；像方 f/# 4.9。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全结账 Shipping, warranty, support and payment details
  • 全球追踪物流Tracked UPS or DHL
  • 至少 3 年保修涵盖材料和工艺缺陷
  • 包含专业机器视觉支持来自我们的工程团队，包括持证专业工程师
  • 批量折扣与 30 净价适用于已批准的商业账户；欢迎采购订单
  • 由 Shopify 提供安全结算信用卡、PayPal、Shop Pay 或 Google Pay

90 天退货 未使用的商品，自交付之日起计算；美国境内免费退货标签；无重新入库费 Return policy

规格

通用

型号LS-TCL-1846

光学

物方视场 (直径 mm)16.6
放大倍率 (x)0.687
工作距离 (mm)24±1
像侧F值4.9
像侧 MTF30 (lp/mm)>175
理论景深（mm）±0.9@F11
像侧畸变(最大%)<0.1
物侧远心度（°最大）<0.25
物像距离 I/O（mm）114±1
总长度TTL(mm)72.2
前滤镜螺纹M26 P0.5

传感器与成像

传感器幅面2/3"
最大传感器尺寸（直径 mm）11.4

机械

接口C
净重（kg）0.2
运输重量（预估）0.38 kg

图片显示本系列的代表性型号；具体规格请参阅该型号的参数。

Engineering data

Field of view with the LS-TCL-1846

像圆Ø 11.4 mmCovers sensors up to 2/3"
放大倍率0.687×
工作距离24 mm景深 ±0.9 毫米 @ F11
畸变< 0.1 %
Total length72.2 mm
滤镜螺纹M26 × 0.5
MTF> 175 lp/mmimage side, at 30 % contrast
重量0.2 kg
Field of view (width × height) by sensor format
传感器幅面0.687×
1/2.5"5.76 × 4.29 mm8.4 × 6.2 mm
1/2"6.4 × 4.8 mm9.3 × 7 mm
1/1.8"7.07 × 5.3 mm10.3 × 7.7 mm
2/3"8.8 × 6.6 mm12.8 × 9.6 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

适配此部件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $3,781.00

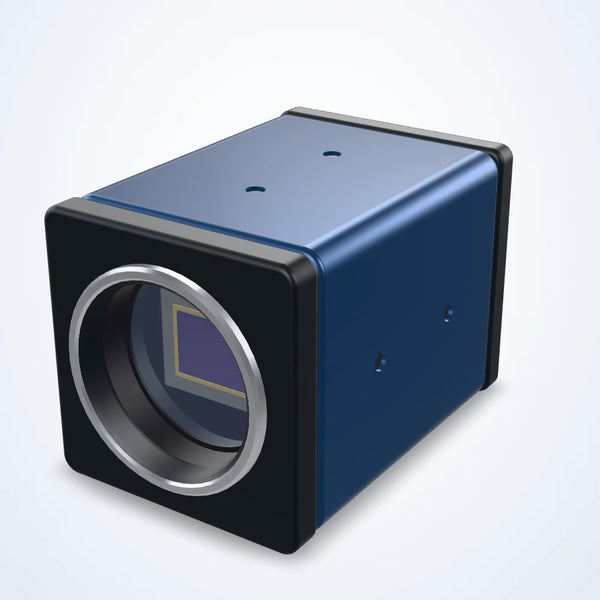

适配此镜头的相机

Its 11.2 mm sensor diagonal uses 98 % of this lens's 11.4 mm image circle

Its 10.9 mm sensor diagonal uses 96 % of this lens's 11.4 mm image circle

Its 11 mm sensor diagonal uses 96 % of this lens's 11.4 mm image circle

Its 10.9 mm sensor diagonal uses 96 % of this lens's 11.4 mm image circle

Its 11 mm sensor diagonal uses 96 % of this lens's 11.4 mm image circle

Its 8.9 mm sensor diagonal uses 78 % of this lens's 11.4 mm image circle

适配器

For CS-mount cameras

Lights for this lens

推荐

19 x 19 mm 同轴光源

LS-CXL-0122

  • 颜色 红色、绿色、蓝色、白色
  • 红光波长 620-630 nm

$119.00

2-3 周内发货

26 x 25 mm 同轴光源

LS-CXL-0123

  • 颜色 红色、绿色、蓝色、白色
  • 红光波长 620-630 nm

$139.00

2-3 周内发货

购买前

Questions about the LS-TCL-1846

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which cameras does the LS-TCL-1846 cover?

Its image circle (about 11.4 mm) covers these fit-tested cameras: LS-CMR-0101 (2/3", 5.3 MP), LS-CMR-0249 (2/3", 2.3 MP), LS-CMR-0089 (2/3") and LS-CMR-0310 (2/3", 2.8 MP).

What field of view does the LS-TCL-1846 give?

About 12.8 x 9.6 mm on a 2/3" sensor, at its 24 mm working distance (calculated: sensor size / 0.687x magnification).

Does the LS-TCL-1846 need an adapter for C-mount or CS-mount cameras?

Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.

What sensor size is the LS-TCL-1846 made for?

Printed: Sensor format: 2/3"; Max sensor size (dia. mm): 11.4.

Which light suits the LS-TCL-1846?

Collimated or coaxial lights whose printed beam covers its field of view: LS-CLM-0009 (named by the maker), LS-CXL-0058, LS-CXL-0122 and LS-CXL-0023.

双远心镜头 (LS-TCL-S59) 系列的其他型号

查看所有508型号

How this model compares

  • Compared with LS-TCL-1560: total length 72.2 mm here, 62.6 mm there; sensor format 2/3" here, 1/1.8" there.
  • Total length 72.2 mm: the shortest of the 30 2/3" C-mount telecentric lenses that list a total length.
  • Magnification 0.687x; next down 0.681x (LS-TCL-1635), up 0.688x (LS-TCL-1445), of 340 magnifications from 0.024 to 2.03x.
型号放大倍率接口传感器价格库存状况链接
LS-TCL-17520.434xC-mount1/2.5"$1,609.00 2-3 周内发货 View
LS-TCL-18540.477xC-mount2/3"$1,359.00 2-3 周内发货 View
LS-TCL-15060.482xC-mount1/2"$1,189.00 2-3 周内发货 View
