LS-TCL-1813 尺寸 (mm)
  • LS-TCL-1813 尺寸 (mm)
  • 0.879x，工作距离 48 mm，1.75" 远心镜头（LS-TCL-1813）

主图：此型号的尺寸图，来自其印刷尺寸。照片展示了该系列的代表性镜头，而非此确切型号；尺寸和形状因型号而异。

远心镜头

0.879x，工作距离 48 mm，1.75" 远心镜头（LS-TCL-1813）

型号 LS-TCL-1813

  • 放大倍率0.879x
  • 接口F-mount
  • 传感器1.75"
  • 工作距离48±1
  • 光圈6.8
  • 视场33
$1,569.00

2-3 周内发货

1.22 kg 运输重量

批量定价，净30条款或正式采购报价？

lumaspecvision.com/zh-hans/products/lumaspec-ls-tcl-1813

请求报价

0.879x，工作距离 48 mm，1.75" 远心镜头（LS-TCL-1813）LS-TCL-1813

通过电子邮件发送价格、交货期和批量价格，通常在一天内完成。

添加电话、交货日期或备注（可选）

无需账户。我们将在一个工作日内回复。

LS-TCL-1813：放大倍率0.879x，工作距离48±1 mm，理论景深±0.8@F16，传感器格式1.75"。

0.879x, WD 48 mm, 1.75" 远心镜头。一目了然：放大倍率 0.879x；工作距离 48±1 mm；最大传感器尺寸 29 mm (1.75")；物方视场 33 mm；像方 f/# 6.8。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全结账 Shipping, warranty, support and payment details
  • 全球追踪物流Tracked UPS or DHL
  • 至少 3 年保修涵盖材料和工艺缺陷
  • 包含专业机器视觉支持来自我们的工程团队，包括持证专业工程师
  • 批量折扣与 30 净价适用于已批准的商业账户；欢迎采购订单
  • 由 Shopify 提供安全结算信用卡、PayPal、Shop Pay 或 Google Pay

90 天退货 未使用的商品，自交付之日起计算；美国境内免费退货标签；无重新入库费 Return policy

规格

通用

型号LS-TCL-1813

光学

物方视场 (直径 mm)33
放大倍率 (x)0.879
工作距离 (mm)48±1
像侧F值6.8
像侧 MTF30 (lp/mm)>120
理论景深（mm）±0.8@F16
像侧畸变(最大%)<0.1
物侧远心度（°最大）<0.1
物像距离 I/O（mm）242±1
总长度TTL(mm)147.7
前滤镜螺纹M45 P0.5

传感器与成像

传感器幅面1.75"
最大传感器尺寸（直径 mm）29

机械

接口F/M42/M58
净重（kg）0.8
运输重量（预估）1.22 kg

图片显示本系列的代表性型号；具体规格请参阅该型号的参数。

Engineering data

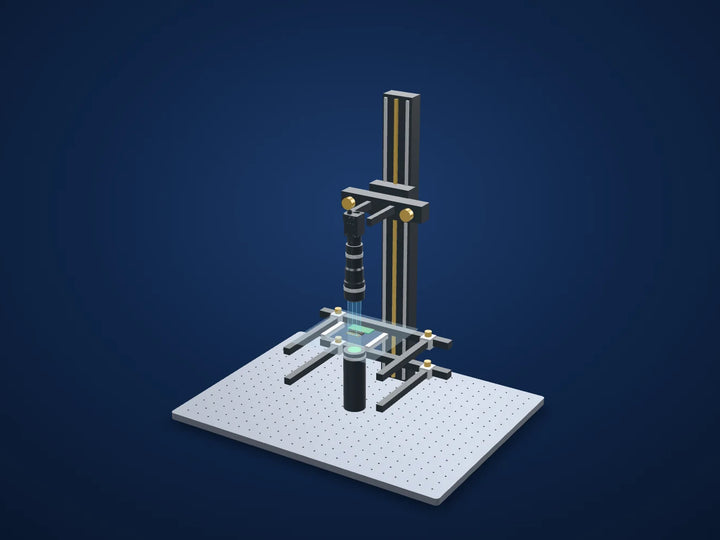

Field of view with the LS-TCL-1813

像圆Ø 29 mmCovers sensors up to 1.75"
放大倍率0.879×
工作距离48 mm景深 ±0.8 毫米 @ F16
畸变< 0.1 %
Total length147.7 mm
滤镜螺纹M45 × 0.5
MTF> 120 lp/mmimage side, at 30 % contrast
重量0.8 kg
Field of view (width × height) by sensor format
传感器幅面0.879×
1"13.2 × 8.8 mm15 × 10 mm
1.1"14.13 × 10.35 mm16.1 × 11.8 mm
4/3"17.3 × 13 mm19.7 × 14.8 mm
APS-C23.6 × 15.6 mm26.8 × 17.7 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

适配此部件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $5,578.00

适配此镜头的相机

Its 28.2 mm sensor diagonal uses 97 % of this lens's 29 mm image circle

Its 27.8 mm sensor diagonal uses 96 % of this lens's 29 mm image circle

Its 28.2 mm sensor diagonal uses 97 % of this lens's 29 mm image circle

Its 27.9 mm sensor diagonal uses 96 % of this lens's 29 mm image circle

Its 23.1 mm sensor diagonal uses 80 % of this lens's 29 mm image circle

Its 19.3 mm sensor diagonal uses 67 % of this lens's 29 mm image circle

Lights for this lens

购买前

Questions about the LS-TCL-1813

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which cameras does the LS-TCL-1813 cover?

Its image circle (about 29 mm) covers these fit-tested cameras: LS-CMR-0206 (1.75", 12.6 MP), LS-CMR-0271 (4/3", 31.2 MP), LS-CMR-0321 (APS-C, 26 MP) and LS-CMR-0322 (APS-C, 31.5 MP).

What field of view does the LS-TCL-1813 give?

About 26.8 x 17.7 mm on an APS-C sensor, at its 48 mm working distance (calculated: sensor size / 0.879x magnification).

What sensor size is the LS-TCL-1813 made for?

Printed: Sensor format: 1.75"; Max sensor size (dia. mm): 29.

Which light suits the LS-TCL-1813?

Collimated or coaxial lights whose printed beam covers its field of view: LS-CXL-0112, LS-CXL-0053, LS-CLM-0039 and LS-CXL-0113.

双远心镜头 (LS-TCL-S59) 系列的其他型号

查看所有508型号

How this model compares

  • Compared with LS-TCL-1812: working distance 48±1 mm here, 45±1 mm there; total length 147.7 mm here, 134.9 mm there.
  • Image circle 29 mm: only 191 of the 508 telecentric lenses in the series are larger.
  • Magnification 0.879x; next down 0.846x (LS-TCL-1441), up 0.886x (LS-TCL-1658), of 340 magnifications from 0.024 to 2.03x.
型号放大倍率接口传感器价格库存状况链接
LS-TCL-17220.715xC-mount, F-mount, M42, M584/3"$1,559.00 2-3 周内发货 View
LS-TCL-16850.727xC-mount, F-mount, M42, M584/3"$1,569.00 2-3 周内发货 View
LS-TCL-18150.744xF-mount, M42, M581.75"$1,709.00 2-3 周内发货 View
LS-TCL-16600.813xF-mount, M42, M58APS-H$1,949.00 2-3 周内发货 View
LS-TCL-1813本型号0.879xF-mount, M42, M581.75"$1,569.00 2-3 周内发货
LS-TCL-18121xF-mount, M42, M581.75"$1,479.00 2-3 周内发货 View
LS-TCL-14391xF-mount, M42, M58APS-H$1,569.00 2-3 周内发货 View
LS-TCL-16011.128xF-mount, M42, M58Full frame$1,849.00 2-3 周内发货 View
LS-TCL-14381.138xF-mount, M42, M58APS-H$1,479.00 2-3 周内发货 View
