0.5× 远心镜头, 2/3", C-mount, 工作距离 112.2 mm (LS-TCL-0425)

型号 LS-TCL-0425

  • 放大倍率0.5×
  • 接口C-mount
  • 传感器2/3"
  • 工作距离112.2 mm - 146.3 mm
  • 分辨率15 μm
  • Field of view with 1/3” (4.8 x 3.6 mm sensor)9.60 x 7.20 mm
$2,989.00
List price

按报价销售：申请报价，我们将确认价格、交货期和批量价格。

交货期以报价为准

将零件添加到报价列表中，我们将回复价格、交货期和批量定价。

lumaspecvision.com/zh-hans/products/lumaspec-ls-tcl-0425

请求报价

0.5× 远心镜头, 2/3", C-mount, 工作距离 112.2 mm (LS-TCL-0425)LS-TCL-0425

通过电子邮件发送价格、交货期和批量价格，通常在一天内完成。

添加电话、交货日期或备注（可选）

无需账户。我们将在一个工作日内回复。

远心镜头，景深范围内放大倍率恒定，用于无透视误差的测量和检测。连接：hr10a-7r-6pbc；工作距离 112.2 mm - 146.3 mm；景深 2.5 mm。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全结账 Shipping, warranty, support and payment details
  • 全球追踪物流Tracked UPS or DHL
  • 至少 3 年保修涵盖材料和工艺缺陷
  • 包含专业机器视觉支持来自我们的工程团队，包括持证专业工程师
  • 批量折扣与 30 净价适用于已批准的商业账户；欢迎采购订单
  • 由 Shopify 提供安全结算信用卡、PayPal、Shop Pay 或 Google Pay

90 天退货 未使用的商品，自交付之日起计算；美国境内免费退货标签；无重新入库费 Return policy

规格

通用

型号LS-TCL-0425
FOV @ 1/1.8″14.26 x 10.66 mm
FOV @ 1/2″12.80 x 9.60 mm
镜头类型远心
使用寿命（10%-90% 正弦波）>1,000,000,000
液态镜头型号液体镜头
响应时间5 毫秒
设置时间25 毫秒
工作光圈值f/12

光学

放大倍率0.5×
工作距离112.2 mm - 146.3 mm
景深2.5 mm
畸变最大值（%）< 0.2
畸变典型值（%）< 0.1
滤镜螺纹无滤镜螺纹
焦距功率模式是
Field of view with 1/3” (4.8 x 3.6 mm sensor)9.60 x 7.20 mm
Field of view with 1/2.5” (5.70 x 4.28 mm sensor)11.40 x 8.56 mm
Field of view with 1/2” (6.4 x 4.8 mm sensor)12.80 x 9.60 mm
Field of view with 1/1.8” (7.13 x 5.33 mm sensor)14.26 x 10.66 mm
Field of view with 2/3” (8.50 x 7.09 mm sensor)17.00 x 14.18 mm
像圆11 mm
放大倍率范围：-2 dpt 至 +3 dpt0.497 - 0.511×
使用焦距功率模式(dpt)的重复性±0.05（小档位）；±0.1（大档位）（屈光度）
远心度最大值0.08°
远心度典型值< 0.04°

传感器与成像

传感器幅面2/3"
分辨率（像素尺寸）15 μm

接口和I/O

连接器HR10A-7R-6PBc

环境和合规性

工作相对湿度 (%)20-85 非会聚
工作温度范围0 至 40°C
存储温度范围0 至 50°C

电气

电流范围-500 至 +500 mA

机械

接口C-mount
近似尺寸130.8 x 37.7 x 37.7 mm
前端直径37.7 mm
安装位置仅限室内使用
重量354 克

Engineering data

Field of view with the LS-TCL-0425

像圆Ø 11 mmCovers sensors up to 2/3"
放大倍率0.5×
工作距离112.2 mm景深 2.5 毫米
畸变< 0.2 %
尺寸130.8 × 37.7 × 37.7 mm
重量354 g
Field of view (width × height) by sensor format
传感器幅面0.5×
1/2.5"5.76 × 4.29 mm11.5 × 8.6 mm
1/2"6.4 × 4.8 mm12.8 × 9.6 mm
1/1.8"7.07 × 5.3 mm14.1 × 10.6 mm
2/3"8.8 × 6.6 mm17.6 × 13.2 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Compatible parts

适配此部件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $3,467.00

适配此镜头的相机

Its 11 mm sensor diagonal uses 100 % of this lens's 11 mm image circle

Its 10.9 mm sensor diagonal uses 99 % of this lens's 11 mm image circle

Its 10.9 mm sensor diagonal uses 99 % of this lens's 11 mm image circle

Its 11 mm sensor diagonal uses 100 % of this lens's 11 mm image circle

Its 11 mm sensor diagonal uses 100 % of this lens's 11 mm image circle

Its 9.2 mm sensor diagonal uses 84 % of this lens's 11 mm image circle

适配器

For CS-mount cameras

Lights for this lens

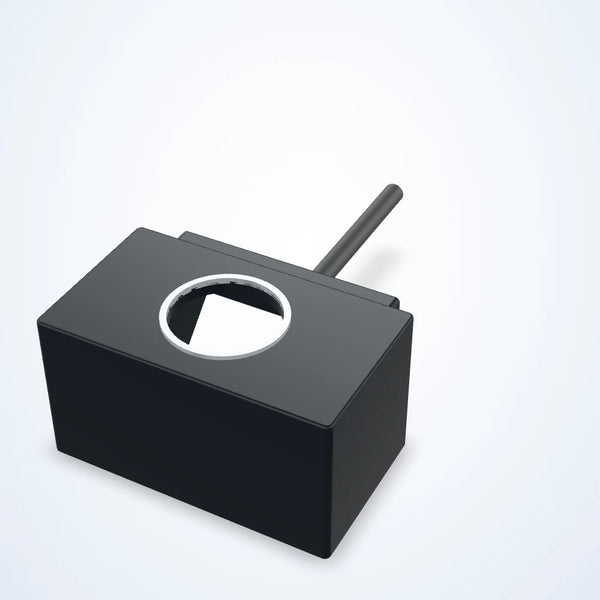

26 x 25 mm 同轴光源

LS-CXL-0123

  • 颜色 红色、绿色、蓝色、白色
  • 红光波长 620-630 nm

$139.00

2-3 周内发货

LS-TCL-0425

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-TCL-0425 — Telecentric lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Magnification
0.5×
Sensor format
2/3"
Mount
C-mount
Working distance
112.2 mm - 146.3 mm

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

购买前

Questions about the LS-TCL-0425

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which cameras does the LS-TCL-0425 cover?

Its image circle (about 11 mm) covers these fit-tested cameras: LS-CMR-0043 (2/3", 5 MP), LS-CMR-0250 (2/3", 2.3 MP), LS-CMR-0310 (2/3", 2.8 MP) and LS-CMR-0089 (2/3").

What field of view does the LS-TCL-0425 give?

About 17.6 x 13.2 mm on a 2/3" sensor (calculated: sensor size / 0.5x magnification).

Does the LS-TCL-0425 need an adapter for C-mount or CS-mount cameras?

Not on a C-mount camera: it is a C-mount lens. On a CS-mount camera, fit a 5 mm C-CS adapter ring such as LS-LXR-0266.

What sensor size is the LS-TCL-0425 made for?

Printed: Sensor format: 2/3"; Image circle: 11 mm.

Which light suits the LS-TCL-0425?

Collimated or coaxial lights whose printed beam covers its field of view: LS-CXL-0142, LS-CXL-0123, LS-CXL-0210 and LS-CXL-0148.

远心镜头，2/3"，C-mount (LS-TCL-S28) 系列的其他型号

查看所有8型号

How this model compares

  • Compared with LS-TCL-0426: magnification 0.5x here, 0.67x there; field of view (1/3") 9.60 x 7.20 mm here, 7.16 x 5.37 mm there.
  • Depth of field 2.5 mm; next down 1.4 mm (LS-TCL-0426), up 7 mm (LS-TCL-0430), of 8 depths of field from 0.1 to 7 mm.
型号分辨率放大倍率工作距离价格库存状况链接
LS-TCL-04324 µm3.5×117.9 - 142.1 mm$3,289.00 报价 交货期以报价为准 View
LS-TCL-04315 µm2.5×117.9 - 142.1 mm$3,289.00 报价 交货期以报价为准 View
LS-TCL-04297 µm1.5×118.0 - 142.0 mm$3,149.00 报价 交货期以报价为准 View
LS-TCL-04288 µm1×118.0 - 142.0 mm$3,149.00 报价 交货期以报价为准 View
LS-TCL-042710 µm0.75×112.5 - 146.1 mm$2,989.00 报价 交货期以报价为准 View
LS-TCL-042611 µm0.67×112.3 -146.1 mm$2,989.00 报价 交货期以报价为准 View
LS-TCL-0425本型号15 µm0.5×112.2 mm - 146.3 mm$2,989.00 报价 交货期以报价为准
