200 x 18 mm线光源，功率80 W（LS-LSC-0332）
  • 200 x 18 mm线光源，功率80 W（LS-LSC-0332）
  • LS-LSC-0332 尺寸 (mm)

本系列代表性照片。颜色仅为示意；实际产品可能有所不同

线扫光源

200 x 18 mm线光源，功率80 W（LS-LSC-0332）

型号 LS-LSC-0332-R

  • 颜色红色、绿色、蓝色、白色
  • 发光面L 200 x W 18
  • 电压48 V
  • 功率80 W
$729.00

2-3 周内发货

0.8 kg 运输重量

彩色

批量定价，净30条款或正式采购报价？

lumaspecvision.com/zh-hans/products/lumaspec-ls-lsc-0332

请求报价

200 x 18 mm线光源，功率80 W（LS-LSC-0332）LS-LSC-0332-R

通过电子邮件发送价格、交货期和批量价格，通常在一天内完成。

添加电话、交货日期或备注（可选）

无需账户。我们将在一个工作日内回复。

LS-LSC-0332：发光面 长 200 x 宽 18 mm, 功率 80 W

采用大功率、高亮度 LED 和特殊镜头形成明亮、高均匀性光带的线光源；照明宽度可根据检测特征设计。长度可达 3 m；线阵相机的最佳搭档。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全结账 Shipping, warranty, support and payment details
  • 全球追踪物流Tracked UPS or DHL
  • 至少 3 年保修涵盖材料和工艺缺陷
  • 包含专业机器视觉支持来自我们的工程团队，包括持证专业工程师
  • 批量折扣与 30 净价适用于已批准的商业账户；欢迎采购订单
  • 由 Shopify 提供安全结算信用卡、PayPal、Shop Pay 或 Google Pay

90 天退货 未使用的商品，自交付之日起计算；美国境内免费退货标签；无重新入库费 Return policy

规格

通用

型号LS-LSC-0332
预期寿命红色、白色、蓝色和白色（如印刷）：20000 小时连续，衰减至 60%（典型一年衰减 10-20%）
支持1 年免费标准技术支持；可根据检测特征、工作距离、照明角度和视场进行定制

接口和I/O

电缆长度（mm）500

光源

发光面 (mm)L 200 x W 18
红光波长620-630 nm
绿色波长525 nm
蓝光波长470 nm
白光色温5000-8000 K

环境和合规性

工作环境环境温度约 22 °C，工作温度在 25 °C范围内

电气

功率（W）80
推荐控制器LS-CTL-0346
电压48 V

机械

安装2 x 4-M4 安装螺母（位置可调），2x2-M5 螺纹深度 6（按图纸）
运输重量0.80 kg

Engineering data

Drive and fit the LS-LSC-0332

电源48 V DC
Current at 48 V1667 mACalculated: printed power ÷ supply voltage
Controller channel it needs48 V constant voltage, at least 80 W

Mounting and installation

安装孔 8 × M4, 2 groups of 4
安装孔 4 × M5, 2 groups of 2, 6 mm deep
安装T型槽 / 螺母通道, 插槽可容纳 M4 螺母
电缆0.5 m

Compatible parts

适配此部件

Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $1,258.00

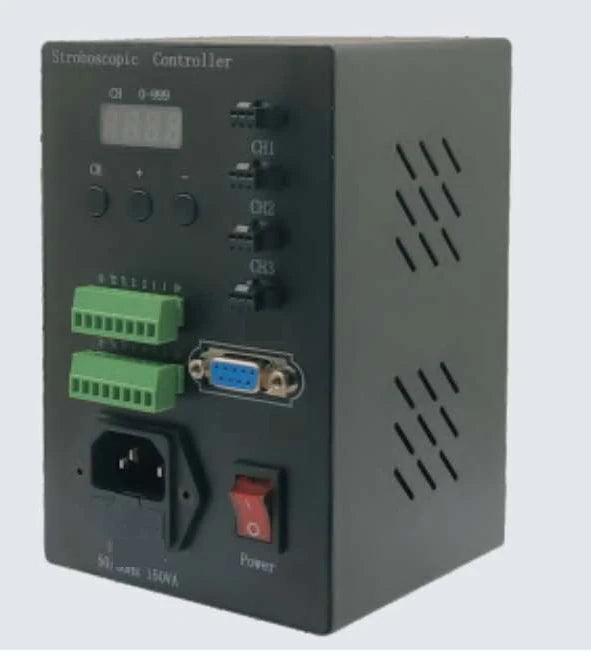

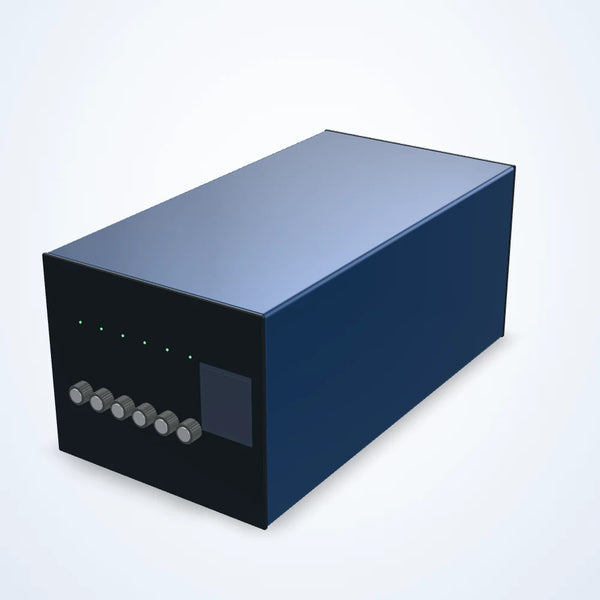

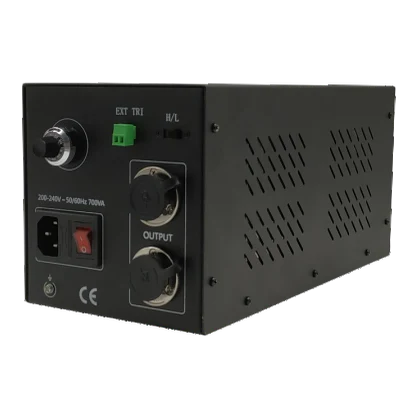

适用于此光源的控制器

This 80 W light uses 67 % of one channel (about 120 W, from the rated output)

This 80 W light uses 64 % of one channel (about 125 W, from the rated output)

This 80 W light uses 48 % of one channel (about 166.7 W, from the rated output)

This 80 W light uses 43 % of one channel (about 187.5 W, from the rated output)

This 80 W light uses 27 % of one 300 W channel

This 80 W light uses 58 % of one channel (about 138 W, from the rated output)

购买前

Questions about the LS-LSC-0332

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which controller drives the LS-LSC-0332?

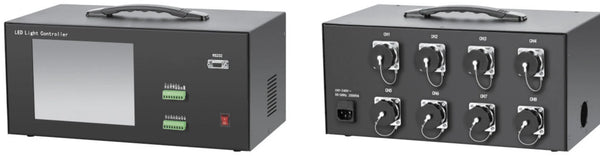

Fit-tested for this 80 W light: LS-CTL-0569 (about 120 W per channel, about 33 % headroom), LS-CTL-0402 (about 125 W per channel, about 36 % headroom), LS-CTL-0496 (about 166.7 W per channel, about 52 % headroom) and LS-CTL-0580 (about 187.5 W per channel, about 57 % headroom).

What supply voltage and power does the LS-LSC-0332 need?

Voltage: 48 V; Power: 80 W. That is about 1.67 A at 80 W on 48 V (calculated).

What temperature range is the LS-LSC-0332 rated for?

Printed: Operating environment: Ambient about 22 °C, operating temperature within 25 °C.

线光源 (LS-LSC-S36) 系列的其他型号

查看所有10型号

How this model compares

  • Compared with LS-LSC-0330: power 80 W here, 40 W there; emitting area L 200 x W 18 here, L 100 x W 18 there.
型号功率发光面价格库存状况链接
LS-LSC-033120 WL 200 x W 18$729.00 2-3 周内发货 View
LS-LSC-033330 WL 300 x W 18$999.00 2-3 周内发货 View
LS-LSC-033040 WL 100 x W 18$459.00 2-3 周内发货 View
LS-LSC-033540 WL 400 x W 18$1,269.00 2-3 周内发货 View
LS-LSC-033750 WL 500 x W 18$1,539.00 2-3 周内发货 View
LS-LSC-0332本型号80 WL 200 x W 18$729.00 2-3 周内发货
LS-LSC-0334120 WL 300 x W 18$999.00 2-3 周内发货 View
LS-LSC-0336160 WL 400 x W 18$1,269.00 2-3 周内发货 View
LS-LSC-0338200 WL 500 x W 18$1,539.00 2-3 周内发货 View
