26.2 MP USB3 面阵相机，1/1.1" 全局快门，30 fps（LS-CMR-0182）
  • 26.2 MP USB3 面阵相机，1/1.1" 全局快门，30 fps（LS-CMR-0182）
  • 26.2 MP USB3 面阵相机，1/1.1" 全局快门，30 fps（LS-CMR-0182）

渲染示意图：实际产品外观可能有所不同。

面阵相机

26.2 MP USB3 面阵相机，1/1.1" 全局快门，30 fps（LS-CMR-0182）

型号 LS-CMR-0182

  • 分辨率5120 x 5120
  • 传感器1/1.1"
  • 接口2*USB3.0
  • 速度30 fps
  • 镜头接口C-mount
  • 像素尺寸2.5 μm

价格面议

0.26 kg 运输重量

将零件添加到报价列表中，我们将回复价格、交货期和批量定价。

lumaspecvision.com/zh-hans/products/lumaspec-ls-cmr-0182

请求报价

26.2 MP USB3 面阵相机，1/1.1" 全局快门，30 fps（LS-CMR-0182）LS-CMR-0182

通过电子邮件发送价格、交货期和批量价格，通常在一天内完成。

添加电话、交货日期或备注（可选）

无需账户。我们将在一个工作日内回复。

26.2 MP 面阵相机，用于生产线上的检测、测量和引导。5120 x 5120 像素，像素尺寸 2.5 μm；最高 30 帧/秒；全局快门；USB3 接口；C-mount 镜头接口。

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts 安全结账 Shipping, warranty, support and payment details
  • 全球追踪物流Tracked UPS or DHL
  • 至少 3 年保修涵盖材料和工艺缺陷
  • 包含专业机器视觉支持来自我们的工程团队，包括持证专业工程师
  • 批量折扣与 30 净价适用于已批准的商业账户；欢迎采购订单
  • 由 Shopify 提供安全结算信用卡、PayPal、Shop Pay 或 Google Pay

90 天退货 未使用的商品，自交付之日起计算；美国境内免费退货标签；无重新入库费 Return policy

规格

通用

型号LS-CMR-0182

传感器与成像

分辨率5120 x 5120
像素尺寸2.5 μm
最大帧率30 fps
快门全局快门
传感器尺寸1/1.1"
Sensor-format source statusPublished sensor specifications conflict: the stated optical format does not agree with the resolution and pixel pitch. The printed format, resolution and pitch are retained; the optical-format designation is unresolved.

接口和I/O

数据接口2*USB3.0

机械

镜头接口C-Mount
运输重量2.00 kg

Engineering data

Field of view and resolution with the LS-CMR-0182

传感器区域12.8 × 12.8 mm1/1.1" optical format
Lens image circle needed≥ Ø 18.1 mmC-mount
像素间距2.5 µm5120 x 5120 px
Image data at max frame rate786 MB/sCalculated: 30 fps × 5120 × 5120 px at 8 bit
With a 16 mm lens at 500 mm400 × 400 mm0.078 mm per pixel
快门全球
Field of view (width × height) and object pixel size by lens focal length and working distance
镜头At 300 mmAt 500 mmAt 1000 mm
8 mm480 × 480 mm0.094 mm per pixel800 × 800 mm0.156 mm per pixel1600 × 1600 mm0.312 mm per pixel
12 mm320 × 320 mm0.062 mm per pixel533 × 533 mm0.104 mm per pixel1067 × 1067 mm0.208 mm per pixel
16 mm240 × 240 mm0.047 mm per pixel400 × 400 mm0.078 mm per pixel800 × 800 mm0.156 mm per pixel
25 mm154 × 154 mm0.03 mm per pixel256 × 256 mm0.05 mm per pixel512 × 512 mm0.1 mm per pixel
35 mm110 × 110 mm0.021 mm per pixel183 × 183 mm0.036 mm per pixel366 × 366 mm0.071 mm per pixel
50 mm76.8 × 76.8 mm0.015 mm per pixel128 × 128 mm0.025 mm per pixel256 × 256 mm0.05 mm per pixel

薄透镜近似公式：视场 ≈ 传感器尺寸 × 工作距离 ÷ 焦距。物体像素尺寸 = 视场宽度 ÷ 水平像素；特征应跨越约 3-4 pixels 才能可靠测量。

Compatible parts

适配此部件

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

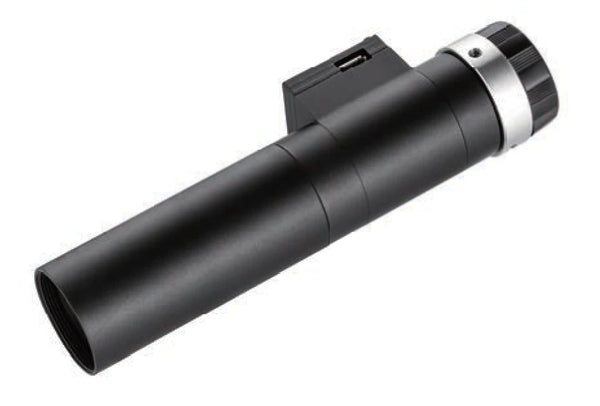

适用于此 C-mount 相机的镜头

This camera's 18.1 mm sensor diagonal uses 98 % of the lens's 18.5 mm image circle

This camera's 18.1 mm sensor diagonal uses 98 % of the lens's 18.5 mm image circle

This camera's 18.1 mm sensor diagonal uses 98 % of the lens's 18.5 mm image circle

This camera's 18.1 mm sensor diagonal uses 100 % of the lens's 18 mm image circle

This camera's 18.1 mm sensor diagonal uses 98 % of the lens's 18.4 mm image circle

This camera's 18.1 mm sensor diagonal uses 100 % of the lens's 18 mm image circle

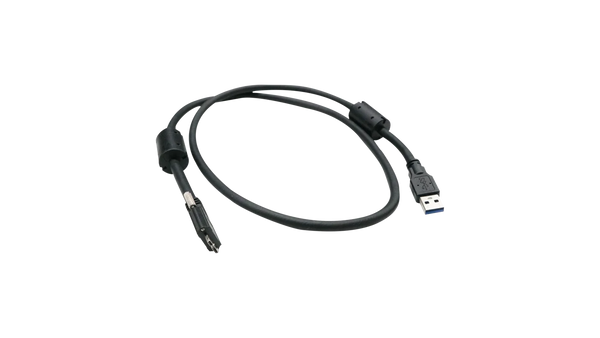

电缆和图像采集卡

购买前

Questions about the LS-CMR-0182

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the LS-CMR-0182?

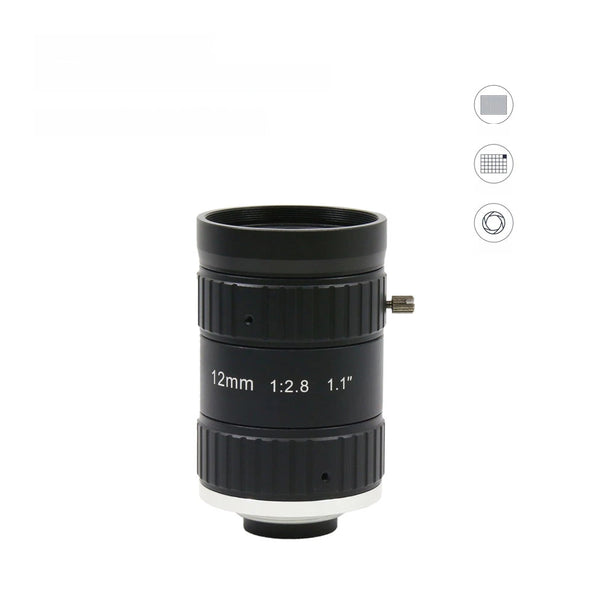

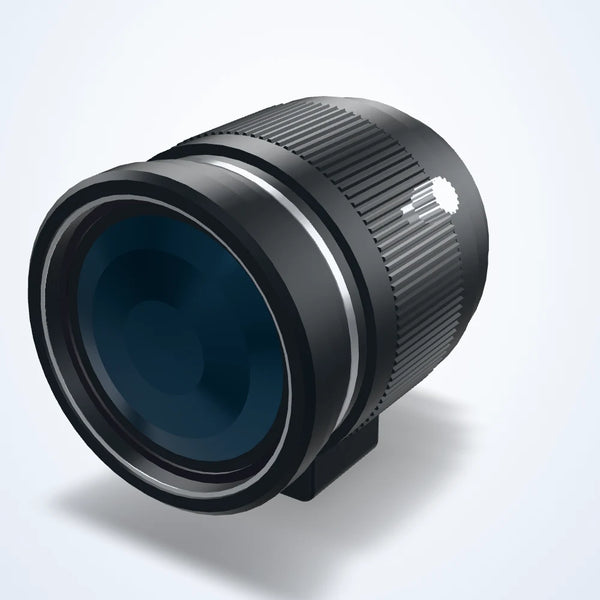

C-mount lenses whose image circle covers its sensor diagonal (about 18.1 mm): LS-FFL-1652 (35 mm), LS-FFL-1650 (16 mm), LS-FFL-1653 (50 mm) and LS-FFL-1663 (18 mm).

What data rate does the LS-CMR-0182 need over USB3?

About 786 MB/s at its printed 30 fps at 5120 x 5120 (8 bits per pixel, calculated).

Which cables does the LS-CMR-0182 take?

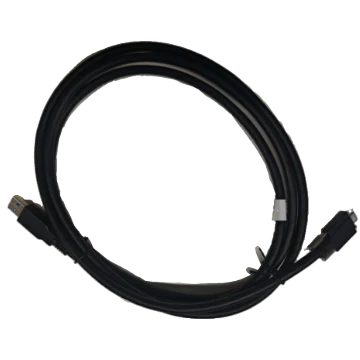

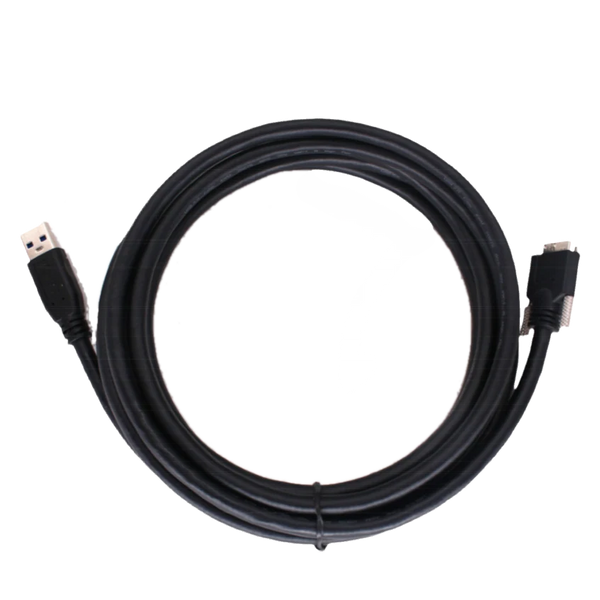

Fit-tested for its USB3 interface: LS-CBL-0217 (3 m), LS-CBL-0141 (0.5 m), LS-CBL-0127 (0.5 m), LS-CBL-0218 (5 m) and LS-CBL-0220 (5 m).

How does the LS-CMR-0182 connect?

Printed: Data interface: 2*USB3.0.

USB3 面阵相机（LS-CMR-S10） 系列的其他型号

查看所有64型号

How this model compares

  • Same 5120 × 5120 resolution and pixel size as LS-CMR-0180 (17 fps) and LS-CMR-0003 (10GigE, M58-mount); this one: 30 fps, USB 3.0, C-mount.
  • Compared with LS-CMR-0172: resolution 5120 x 5120 here, 4112 x 4112 there; maximum frame rate 30 fps here, 47 fps there.
型号分辨率传感器接口价格库存状况链接
LS-CMR-01724112 x 41124/3"2 x USB3.0按需提供 3-4 周内发货 View
LS-CMR-01815120 x 51201.1"2 x USB3.0按需提供 3-4 周内发货 View
LS-CMR-0182本型号5120 x 51201/1.1"2 x USB3.0按需提供 3-4 周内发货
LS-CMR-01664000 x 3000 (12 MP)1/1.7"USB 3.0$560.00 3-4 周内发货 View
LS-CMR-01674000 x 3000 (12 MP)1/1.7"USB 3.0 (USB3 Vision)$560.00 3-4 周内发货 View
LS-CMR-01805120 x 51201.1"USB3$1,320.00 3-4 周内发货 View
LS-CMR-01795120 x 5120 (25 MP)1.1"USB 3.0 (USB3 Vision)$1,600.00 3-4 周内发货 View
LS-CMR-01684096 px x 3000 px1/1.1"USB 3.0$1,840.00 3-4 周内发货 View
LS-CMR-01644096 px x 3000 px1.1"USB 3.0$2,730.00 3-4 周内发货 View
