本系列代表照片
背光
430 x 260 mm 傳統面光源 (LS-BKL-1186)
型號 LS-BKL-1186-R
- 顏色紅色, 綠色, 藍色, 白色, 紅外線, UV
- 電壓24 V DC (可根據需求提供 12 V)
- 類型標準
- 寬度260 mm
$739.00
2-3 週內出貨
2.8 kg 運送重量
需要批量定價、淨價 30 條款或正式採購報價？
面光源，具有大面積均勻發光及高陣列 LED 排列，可實現高亮度平面照明。主要用於透視輪廓成像及大尺寸均勻照明。
- 全球可追蹤配送追蹤 UPS 或 DHL
- 至少 3 年保固涵蓋材料與工藝缺陷
- 包含專業機器視覺技術支援來自我們的工程團隊，包含持證專業工程師。
- 數量折扣與淨價 30適用於已核准的商業帶戶；歡迎使用採購訂單
- 90 天退貨未使用的商品，自交付之日起計算；美國境內免費退貨標籤；無重新入庫費
- 由 Shopify 提供安全結帳信用卡、PayPal、Shop Pay 或 Google Pay
規格
一般
| 型號 | LS-BKL-1186 |
|---|
介面與I/O
| 電纜長度 (mm) | 500 |
|---|
電氣
| 電壓 | 24 V DC (可根據需求提供 12 V) |
|---|---|
| 紅色功率 (W) | 61.92 |
| 白色/藍色/綠色功率 (W) | 82.56 |
機械
| 寬度 (mm) | 260 |
|---|---|
| 長度 (mm) | 430 |
| 高度 (mm) | 25 |
| 安裝 | 8 x 直徑 5 通孔 |
| 出貨重量 | 2.80 kg |
Engineering data
Drive and fit the LS-BKL-1186
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Supply24 V DC
Current at 24 V3440 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 82.56 W
Cable length500 mm
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

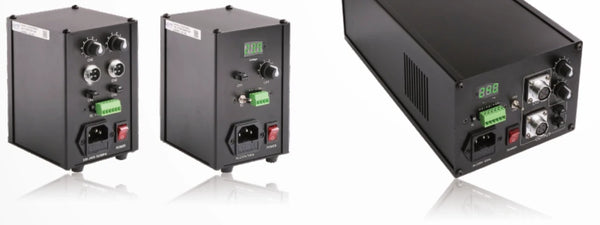

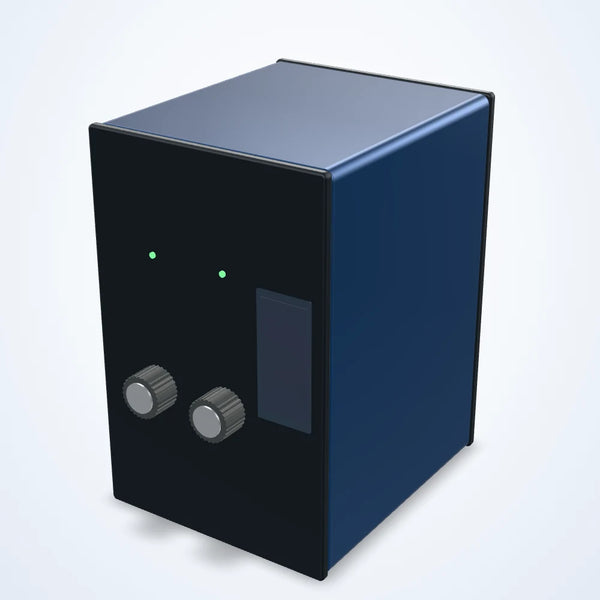

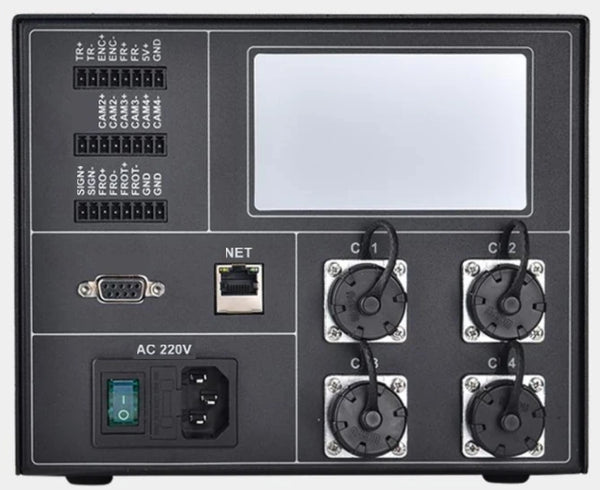

Controllers for this light
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-BKL-0586, the same type of part
電子設備
連接器與電路板針腳彎曲
將真實針腳傾斜與透視分開。視野50.46 × 37.85 mm探索研究
Set up with the LS-BKL-1300, the same type of part
包裝、標籤與印刷
瓶底異物
在設定暗點閾值之前，將乾淨瓶子變體納入測試中。方法透射式白光背光探索研究
Set up with the LS-BKL-0800, the same type of part
食品、製藥與農業
Cake tray surface specks
Light the whole tray evenly and judge specks against real batch variation.Light in sourceLS-BKL-0800 · white探索研究
